180W Remote View Solar Surveillance System (WiFi)

SKU SLR-B180-4W

180W Remote View Solar Surveillance System (WiFi)

SKU SLR-B180-4W

Deliver surveillance to any location with the SLR-B Series Solar CCTV Surveillance Systems from VIP Vision. These remote-view-enabled, standalone surveillance solutions are perfect in areas without network/power infrastructure. This may include black spot monitoring, on farms, or in temporary CCTV applications such as construction sites or events.

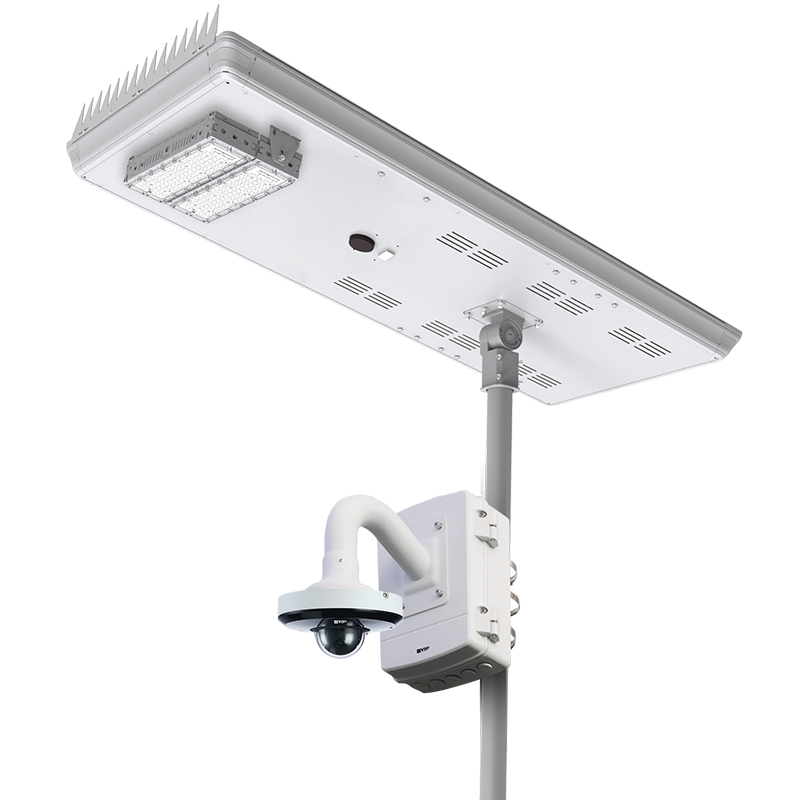

The solar panel unit features a 60W LED area light with microwave motion detection, which can be customised to your specifications. The entire system is powered by a rechargeable a 1200Wh Lithium Iron Phosphate (LiFePo₄) battery. The LED area light and the LiFePo₄ battery are all combined into the one solar panel unit.

This unit includes a Specialist AI Series 4.0MP PTZ Dome (VSIPPTZ-4IRM-I) and 5.8GHz Wireless Bridge (WT5-ULB) for local remote view via WiFi.

Product features:
• Efficient 180W monocrystalline silicon solar panel
• Long range 5.8GHz WiFi bridge for remote view
• Lasts up to 5-7 days from full charge in cloudy conditions
• 1200Wh lithium iron phosphate battery (LiFePo₄)
• Built-in 60W microwave motion sensor LED area light
• Ø50~60mm pole mount diameter
• Surveillance grade 256GB microSD card included
• 4 year warranty

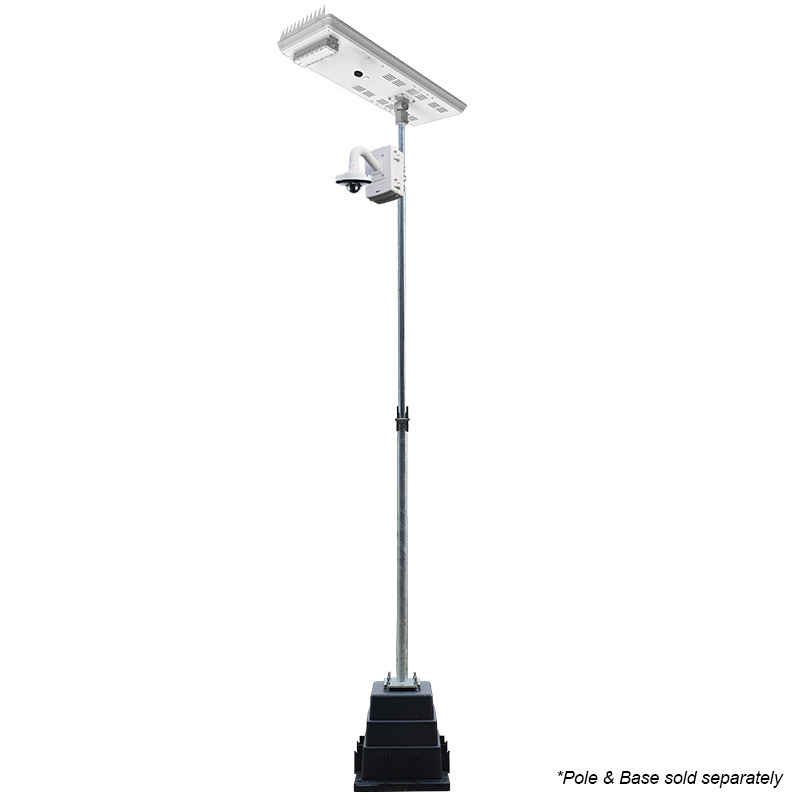

Pole & base not included (sold separately).

Suggested Products

4.5 metre Galvanised Pole for Solar Panels
SLR-POL4

4.0m Octagonal Hinged Light Pole
SLR-POL4-2

6.0 metre Galvanised Pole for Solar Panels
SLR-POL6

6.0m Octagonal Hinged Light Pole
SLR-POL6-2

60W Microwave Sensor Solar LED Street Light
SSL-B60MC

Specialist AI Series 4.0MP 4x Zoom PTZ Dome
VSIPPTZ-4IRM-I

Ubiquiti 5.8GHz LiteBeam 120° Wireless Access Point
WT5-ULB

Links and Downloads

SLR-B Solar IP CCTV User Manual - Orange Remote (Gen 3)(PDF) 7.37 MB

SLR-B Solar IP CCTV User Manual - White Remote (Gen 2)(PDF) 6.82 MB

SLR-B Solar IP CCTV User Manual - Grey Remote (Gen 1)(PDF) 6.12 MB

VIP Vision SLR-B Series Datasheet (PDF) 0.71 MB

VIP Vision SLR-B Series Application Guide (PDF) 3.59 MB

6m Hinged Pole Certification.pdf 0.50 MB

4m Hinged Pole Certification.pdf 0.66 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Solar Panel

Panel Type

180W monocrystalline silicon panel

Conversion Rate

>21%

Battery

1200Wh Lithium Iron Phosphate (LiFePo 4) with Low Voltage Cutoff

Area Light

60W LED

Light Output

11100lm (180lm/W)

Beam Angle

145° x 100° (batwing distribution)

Motion Detection

Microwave (65°, 10m range @ 8m install height)

Panel Tilt Adjust

-60° ~ 60°

Ingress Protection (Panel)

IP65

Wind Resistance

Up to 65m/s

Dimensions (Panel)

1496mm x 685mm x 161mm

Pole Diameter

Ø50~60mm

Camera

Camera Model

VSIPPTZ-4IRM-I (Default) / VSIPP-2DIRG-IL

Camera Type

4.0MP 4x Optical Zoom Mini PTZ Dome

Image Sensor

1/2.8" 4.0MP Progressive Scan CMOS

Min. Illumination

0.005 Lux/F1.8 (Color), 0.0005 Lux/ F1.8 (B/W), 0 Lux (IR on)

Lens

2.8 ~ 12mm F1.8 ~ F2.7 Motorised Lens with Auto Iris

Field of View

Horizontal: 32~97°, Vertical: 18°~51° (4x Optical Zoom)

Lighting Compensation

BLC / HLC / WDR (120dB)

Max. Record Resolution

4.0MP (2560 x 1440) up to 25fps

Video Compression

H.265; H.264 Baseline Profile; H.264 Main Profile; H.264 High Profile; MJPEG (Sub Stream); H.265+; H.264+

Pan / Tilt Range

Pan: 0° ~ 355° / Tilt: 5° ~ 90° / Auto-flip 180°

Pan / Tilt Speed

Preset: Pan: 80°/s; Tilt: 40°/s Manual: Pan: 70°/s; Tilt: 30°/s

Ingress Protection (Camera)

IP66

Vandal Resistance

IK08

Construction

Metal

Dimensions (Camera)

Ø128mm x 65mm

Accessories

Included Accessories

Camera adapter, right angle bracket, mounting box, pole mount bracket, 256GB microSD, wireless access point

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

780 mm

Height

1,600 mm

Depth

700 mm

Weight

55.00 kg
