120W Remote View Solar Surveillance System (4G)

SKU SLR-B120-4G

120W Remote View Solar Surveillance System (4G)

SKU SLR-B120-4G

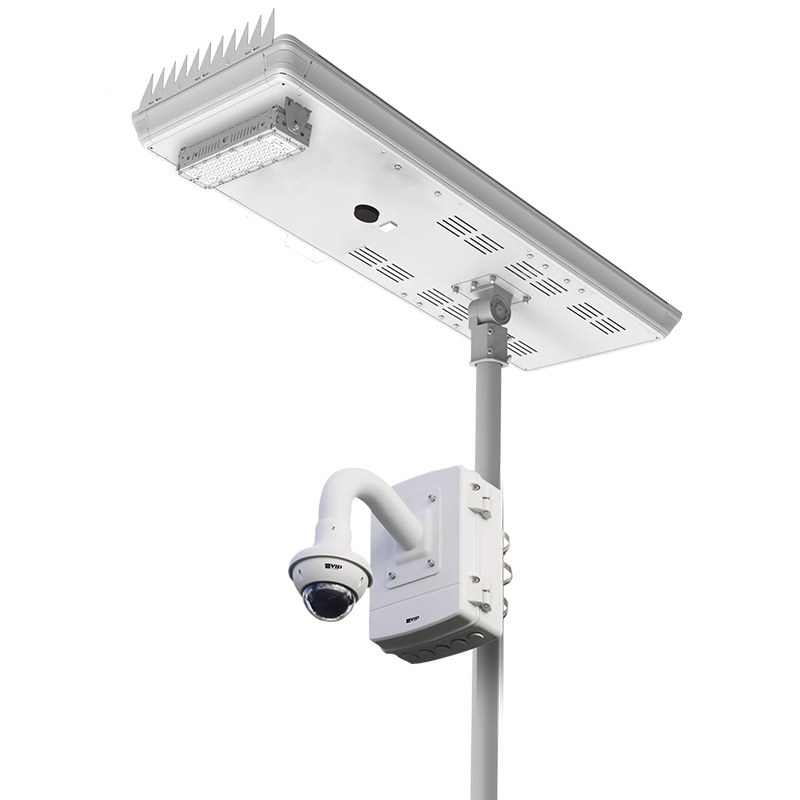

Deliver surveillance to any location with the SLR-B Series Solar CCTV Surveillance Systems from VIP Vision. These remote-view-enabled, standalone surveillance solutions are perfect in areas without network/power infrastructure. This may include black spot monitoring, on farms, or in temporary CCTV applications such as construction sites or events.

The solar panel unit features a 50W LED area light with microwave motion detection, which can be customised to your specifications. The entire system is powered by a rechargeable 500Wh Lithium Iron Phosphate (LiFePo₄) battery. The LED area light and the LiFePo₄ battery are all combined into the one solar panel unit.

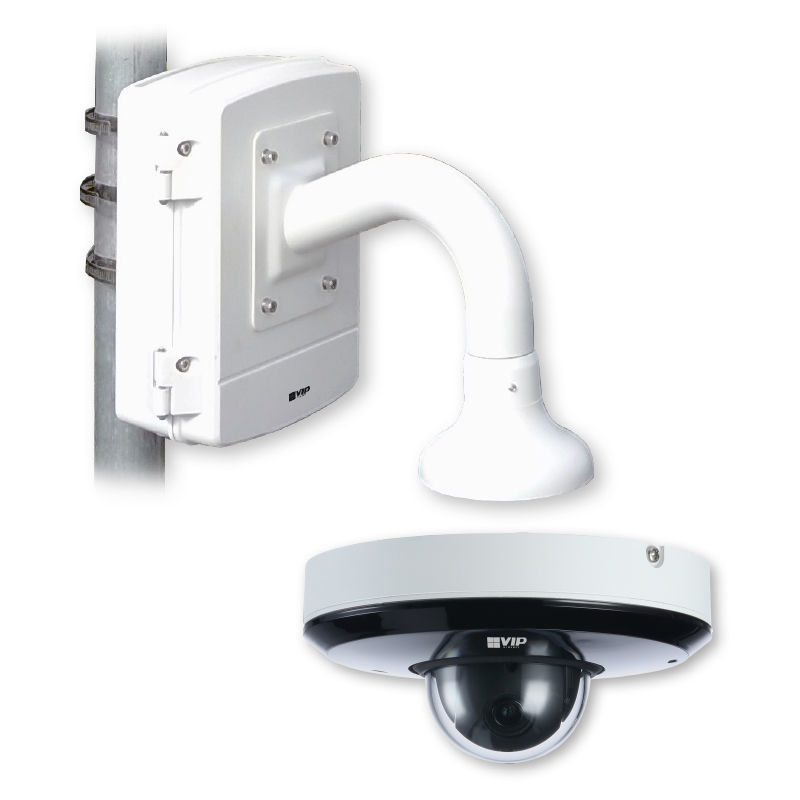

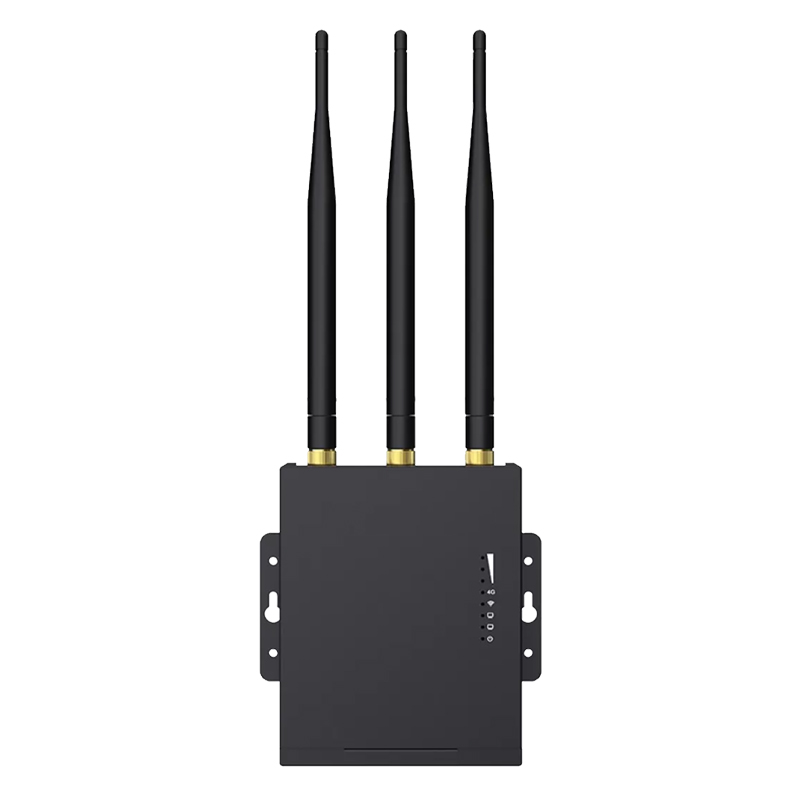

This unit includes a Specialist AI Series 4.0MP PTZ Dome (VSIPPTZ-4IRM-I) and high speed 4G LTE Wireless Access Point (LGAP100-4G) for remote view from almost anywhere*.

Product features:
• Efficient 120W monocrystalline silicon solar panel
• National coverage* remote view using 3G/4G modem
• Lasts up to 2-3 days from full charge in cloudy conditions
• 500Wh lithium iron phosphate battery (LiFePo₄)
• Built-in 50W microwave motion sensor LED area light
• Ø50~60mm pole mount diameter
• Surveillance grade 256GB microSD card included
• 4 year warranty

Pole & base not included (sold separately).
* SIM card not included. Coverage dependent on carrier capabilities.

Suggested Products

4G LTE Wireless Access Point
LGAP100-4G

4.5 metre Galvanised Pole for Solar Panels
SLR-POL4

4.0m Octagonal Hinged Light Pole
SLR-POL4-2

6.0 metre Galvanised Pole for Solar Panels
SLR-POL6

6.0m Octagonal Hinged Light Pole
SLR-POL6-2

50W Microwave Sensor Solar LED Street Light
SSL-B50MC

Specialist AI Series 4.0MP 4x Zoom PTZ Dome
VSIPPTZ-4IRM-I

Links and Downloads

SLR-B Solar IP CCTV User Manual - Orange Remote (Gen 3)(PDF) 7.37 MB

SLR-B Solar IP CCTV User Manual - White Remote (Gen 2)(PDF) 6.82 MB

SLR-B Solar IP CCTV User Manual - Grey Remote (Gen 1)(PDF) 6.12 MB

VIP Vision SLR-B Series Datasheet (PDF) 0.71 MB

VIP Vision SLR-B Series Application Guide (PDF) 3.59 MB

6m Hinged Pole Certification.pdf 0.50 MB

4m Hinged Pole Certification.pdf 0.66 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Solar Panel

Panel Type

120W monocrystalline silicon panel

Conversion Rate

>21%

Battery

500Wh Lithium Iron Phosphate (LiFePo₄) with Low Voltage Cutoff

Area Light

50W LED

Light Output

9400lm (180lm/W)

Beam Angle

145° x 100° (batwing distribution)

Motion Detection

Microwave (65°, 10m range @ 8m install height)

Panel Tilt Adjust

-60° ~ 60°

Ingress Protection (Panel)

IP65

Wind Resistance

Up to 65m/s

Dimensions (Panel)

1321mm x 525mm x 161mm

Pole Diameter

Ø50~60mm

Camera

Camera Model

VSIPPTZ-4IRM-I (Default) / VSIPP-2DIRG-IL

Camera Type

4.0MP 4x Optical Zoom Mini PTZ Dome

Image Sensor

1/2.8" 4.0MP Progressive Scan CMOS

Min. Illumination

0.005 Lux/F1.8 (Color), 0.0005 Lux/ F1.8 (B/W), 0 Lux (IR on)

Lens

2.8 ~ 12mm F1.8 ~ F2.7 Motorised Lens with Auto Iris

Field of View

Horizontal: 32~97°, Vertical: 18°~51° (4x Optical Zoom)

Lighting Compensation

BLC / HLC / WDR (120dB)

Max. Record Resolution

4.0MP (2560 x 1440) up to 25fps

Video Compression

H.265; H.264 Baseline Profile; H.264 Main Profile; H.264 High Profile; MJPEG (Sub Stream); H.265+; H.264+

Pan / Tilt Range

Pan: 0° ~ 355° / Tilt: 5° ~ 90° / Auto-flip 180°

Pan / Tilt Speed

Preset: Pan: 80°/s; Tilt: 40°/s Manual: Pan: 70°/s; Tilt: 30°/s

Ingress Protection (Camera)

IP66

Vandal Resistance

IK08

Construction

Metal

Dimensions (Camera)

Ø128mm x 65mm

Accessories

Included Accessories

Camera adapter, right angle bracket, mounting box, pole mount bracket, 256GB microSD, 3G/4G modem external antenna

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

620 mm

Height

1,410 mm

Depth

700 mm

Weight

45.00 kg
