4G Wireless Remote Controller - 2 Channel

Brand logo
SKU WGRX4G
Brand logo

4G Wireless Remote Controller - 2 Channel

SKU WGRX4G

Stock may be limited. Please contact us for availability or for an alternative item.

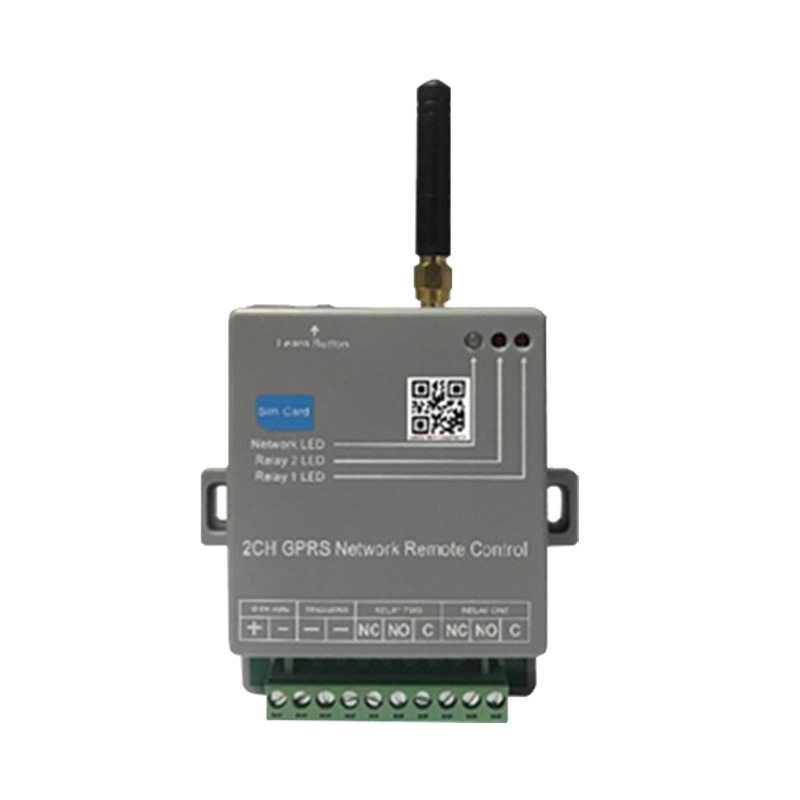

The WGRX4G 4G Wireless Remote Controller allows users to activate any electronic system from anywhere via GSM network and the free mobile app. Unlock electronic gates, garage & front doors, turn on lights, activate sprinklers - make any electronic system remote activated.

Product features:
• 4G GSM network
• 2 channel GPRS remote control

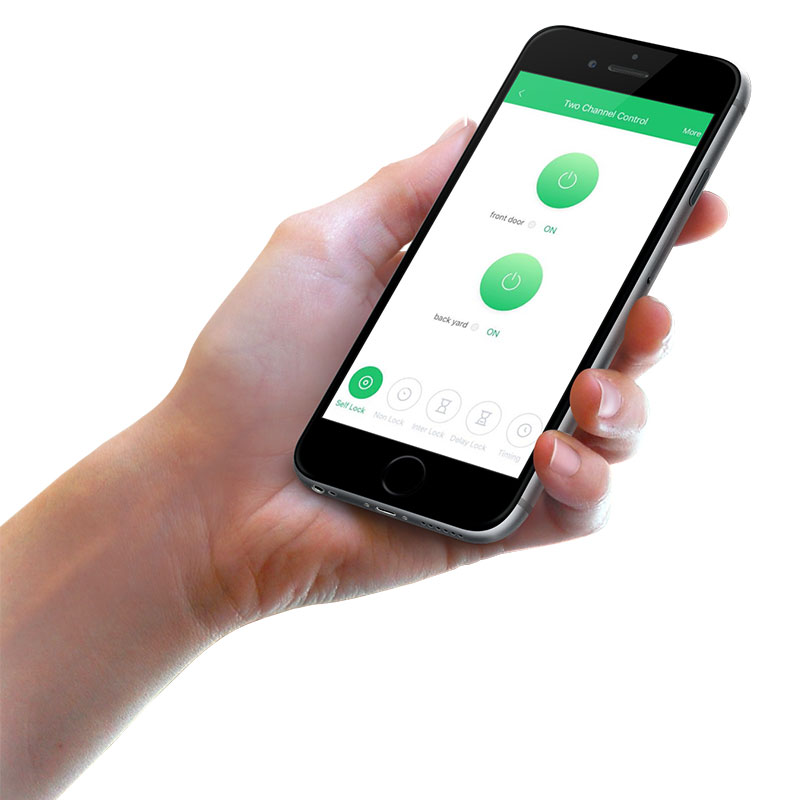

• Remote set up and control via the app
• Unlimited number of users with user management options
• Operation log records & device sharing features
• With 5 working modes: On/ Off, timer, interlock, sequential lock and schedule mode

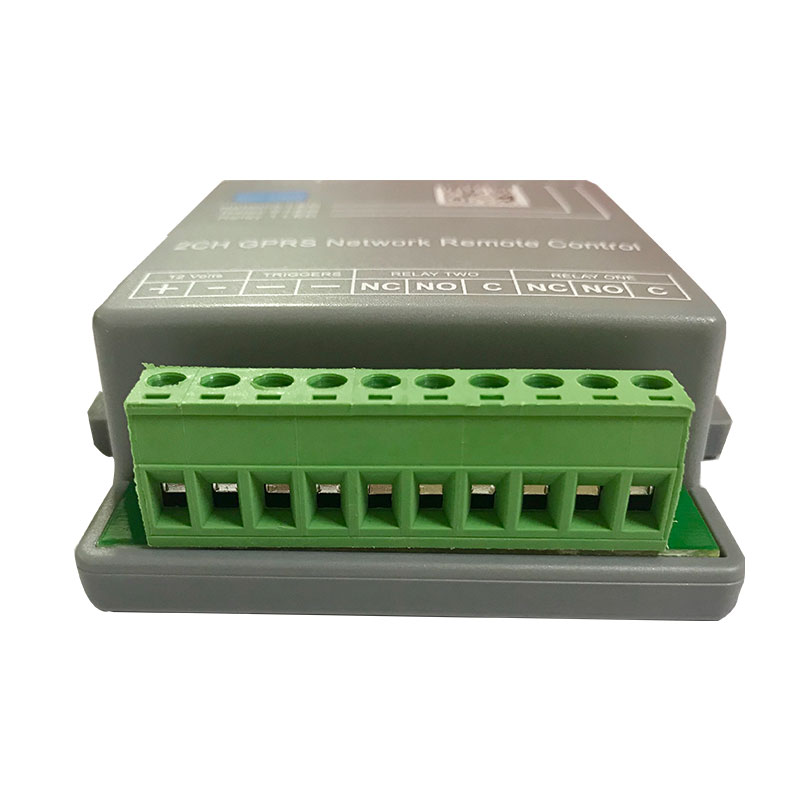

• Relay output 2 dry contact N.C / N.O 20A 14VDC or 20A 125VAC
• 11~14VDC supply voltage & 90mA~180mA working current
• SIM card is required (not included)

Suggested Products

Suggested product image
3G Wireless Remote Controller - 2 Channel
WGRX3G
Suggested product image
Bluetooth Wireless Remote Controller - 1 Channel
WGRXBT1
Suggested product image
Bluetooth Wireless Remote Controller - 2 Channel
WGRXBT2

Links and Downloads

Longevity WGRX Wireless Controllers Datasheet (PDF) 0.60 MB
Longevity 4G Wireless Remote Control Quick Start Guide (PDF) 2.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

GSM
Network Band
4G: LTE-TDD B40,LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28, 3G: UMTS/HSPA+ B1/B2/B5/B8, 2G: GSM/GPRS/EDGE850/900/1800/1900MHz
GSM Frequency
Quad band 850/ 900/ 1800/ 1900mHZz
Relay
Relay Output
2 x Dry Contact NC or NO, 24A 14VDC or 20A 125VAC
Relay Working Modes
On/Off, Timer, Inter-lock, Sequential Lock, Schedule Mode
General
Antenna
50Ω SMA antenna interface
Max Users
Unlimited
Event Logging
Up to 100 Events
Power Input
11~14VDC
Power Current
90~180mA (Operating) / 40~50mA (Standby)
Operating Temperature
-10 ~ 50°C
Dimensions
93 x 70 x 73mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
70 mm
Height
93 mm
Depth
30 mm
Weight
0.15 kg
