3G/WiFi In-Vehicle Surveillance & GPS Tracking System

Brand logo
SKU MDVR-J200
Brand logo

3G/WiFi In-Vehicle Surveillance & GPS Tracking System

SKU MDVR-J200

Available by special order only. Please contact us for lead times.

Keep full track of your vehicle and monitor driver activity from anywhere. This total in-vehicle monitoring solution excels at tracking company vehicles with dual driving cameras, GPS tracking, behaviour tracking, mobile alerts & more.

Product features:
• Record up to Full HD/2.0MP (1920 x 1080) at 30fps

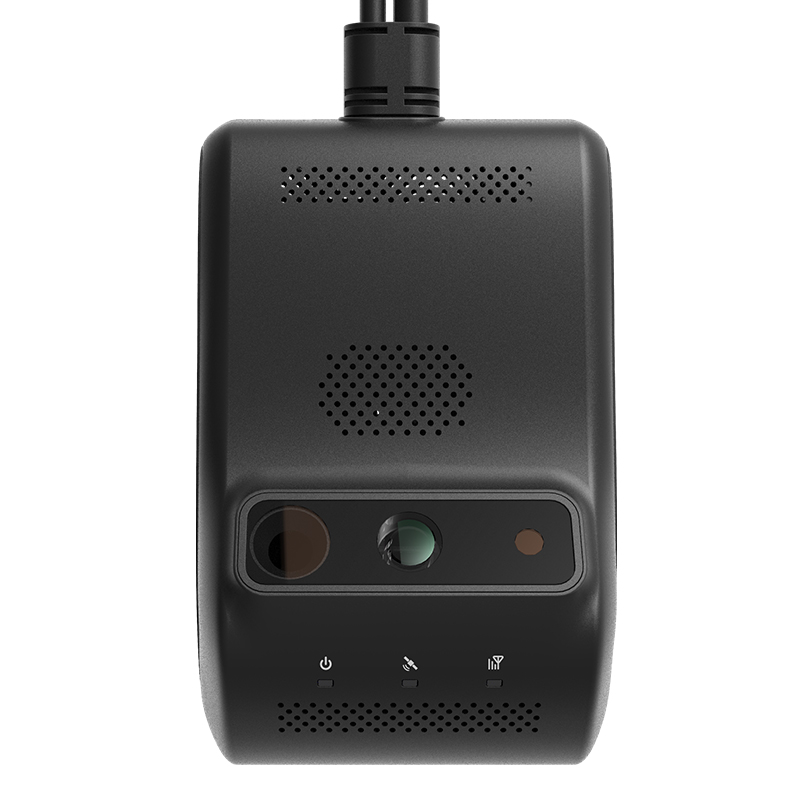

• 2 x fixed lens - 140° external (road), 90° internal (driver)

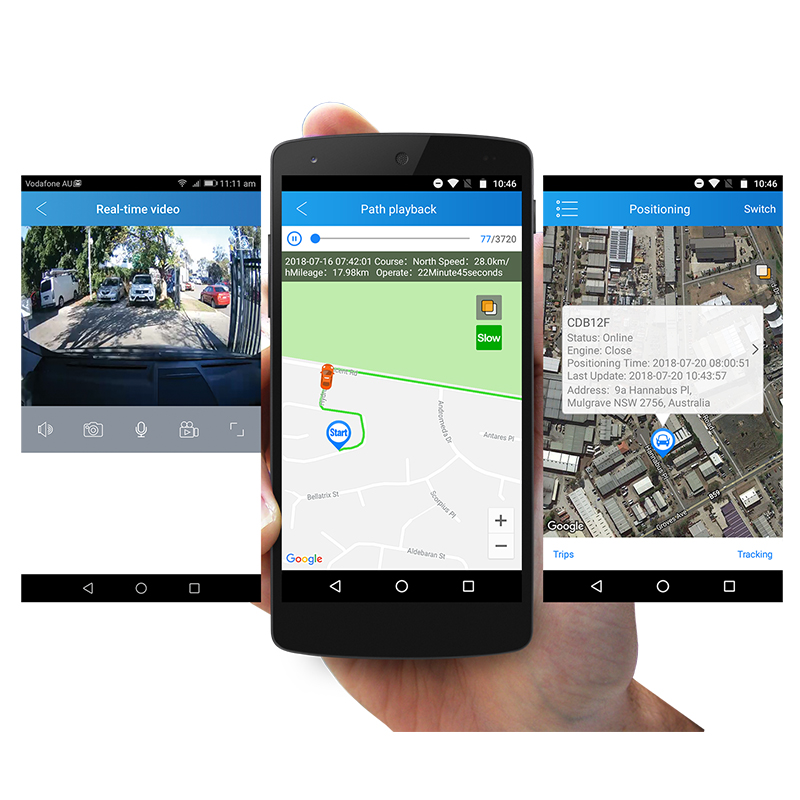

• Live camera view and GPS tracking with mobile app

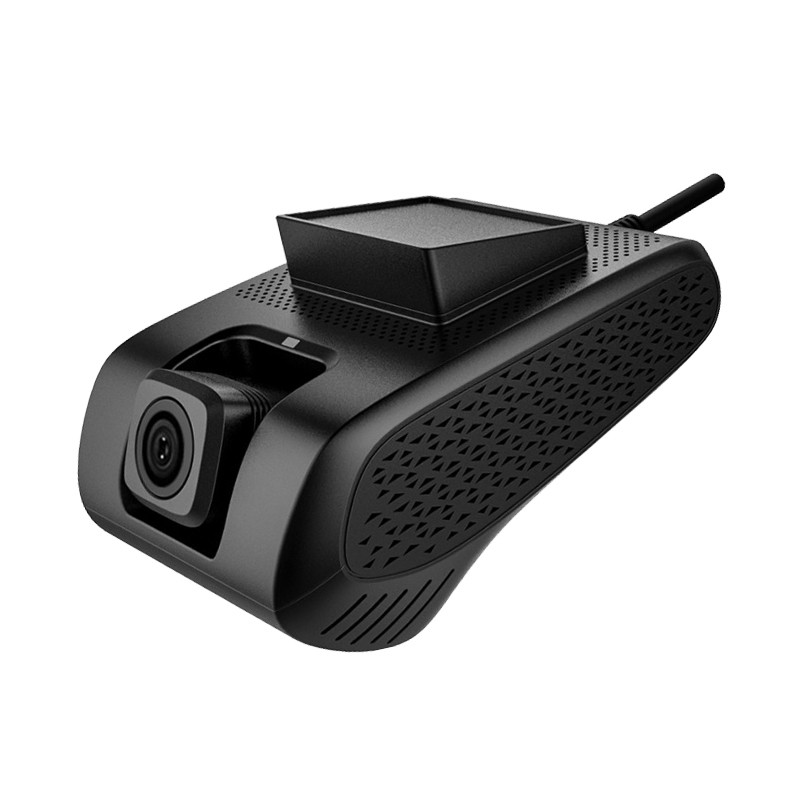

• Windshield-mounted with detachable camera unit
• Two-way voice communication between phone & cam
• Email/app alert & sent footage upon collision detection
• Monitor driver behavior with geo-fencing
• 9-axis G-sensor to detect harsh acceleration, sharp turns, etc.
• 450mAh external battery for use when vehicle is off
• Playback and record footage on microSD up to 32GB

Included components:
• Windscreen mounting cradle
• 3M adhesive mounting stickers
• 450mAh external battery
• 12V 40A relay & relay cable
• SOS alarm button
• Screwdriver
• 16GB microSD card

Links and Downloads

Securview MDVR-J200 Datasheet (PDF) 1.51 MB
MDVR-J200-Quick-Start-Guide V1.31.pdf 2.23 MB
Online Tracking Portal
Mobile App (Apple)
Mobile App (Android)
Latest Android mobile APK - 2019-1-24
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Camera Style
Mobile Dual Lens Camera, infrared driver facing lens
Resolution
Road facing: 1080p (1920 x 1080) / Driver facing: (640 x 352)
Angle of View
Front: 140° (adjustable) / Rear: 90°
Focus
Fixed
Frame Rate
30fps
Features
CPU
ARM Cortex A7 Quad Core 1.2GHz
Band
GSM 850/900/1800/1900 WCDMA 850/900/1900/2100
G-Sensor
9 axis-motion
Live View
In-car / front car live video via app or web
Audio
Built-in microphone / Built-in speaker
WiFi
Frequency 2.4GHz, hot spot
Bluetooth
BT4.0 only connect to Android system
Micro SD storage
Max 32GB
Battery
External 450mAh
Interface
OBD Interface
Connect by power cable
USB Data Interface
Micro USB 5 Pin
Housing
Plastic
Power Input
12 - 24VDC
Dimensions
109 x 69 x 52mm
Weight
0.23kg
Operating Environment
-20° to 75°C / RH95% (max)
Installation
Included Components
Power wiring harness, mounting cradle, 3M adhesive mount, SOS alarm button, backup battery, 12V 40A relay and relay cable, screwdriver
Other
MIC Speaker
Built-in speaker
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
215 mm
Height
100 mm
Depth
115 mm
Weight
1.00 kg
