Professional Series 32 Channel 1080p HDCVI Digital Video Recorder

Brand logo
SKU CVR32V3
Brand logo

Professional Series 32 Channel 1080p HDCVI Digital Video Recorder

SKU CVR32V3

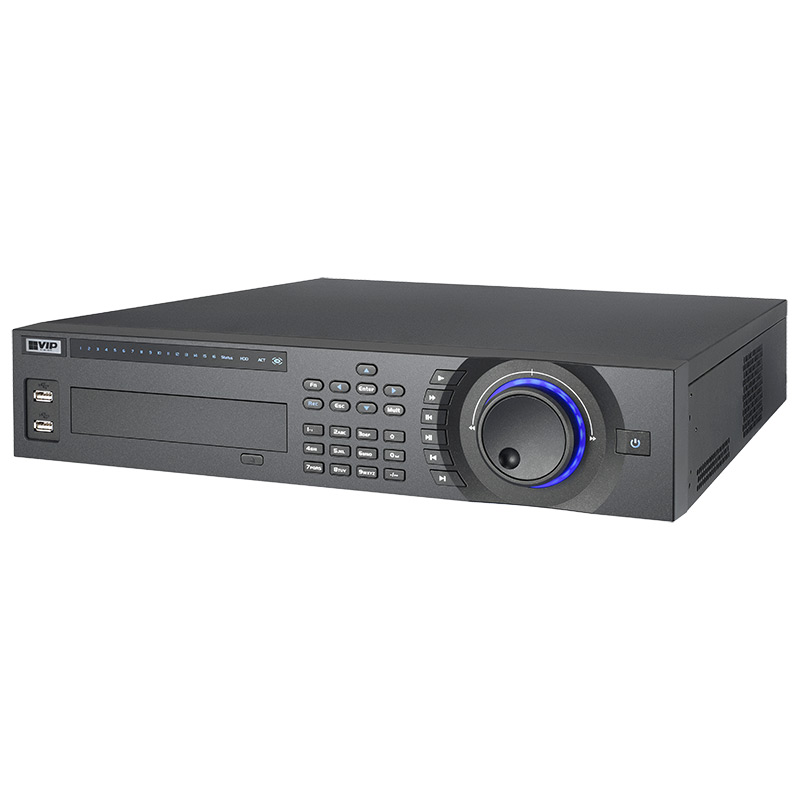

The CVR32V3 is a 32 channel HDCVI (high definition composite video interface) DVR capable of 1080p full HD recording over coaxial cable. It features compatibility with HDCVI, HDTVI, AHD, Analogue and IP video inputs, making it perfect for both new and retrofit CCTV installations.

Product features:
• High cross compatibility ~ with HDCVI, HDTVI, IP, Analogue and AHD cameras
• Records up to 2.0MP/1080p at 15fps (HDCVI, HDTVI, AHD) and 960H at 25fps (analogue)
• Add up to 32 IP channels up to 5.0MP (32 cameras total, max. 128Mbps)
• 8 x SATA ports for up to 80TB total HDD capacity
• Up to 700m video transmission over coaxial
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Configure remote view in seconds via QR code
• Remote view for iOS, Android & Windows Phone

Suggested Products

Suggested product image
19" Acer 1366 x 768 LCD Monitor (TN)
LCDACER19
Suggested product image
6RU 600mm Deep Wall Mount Data Cabinet
RACKMOUNTCAB6-600W
Suggested product image
1500VA Line Interactive UPS - 900W
UPS-A1500-L
Suggested product image
HDCVI to HDCVI / HDMI / VGA / Composite Video Converter
VSCVIDECODER

Links and Downloads

Securview CVR Series Datasheet (PDF) 0.65 MB
Smart PSS V2.0 (Mac) 90.05 MB
CVR_Firmware_TypeV_20170808 14.71 MB
HDCVI User Manual 23.02 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux OS
Video Input
32 channel BNC
Audio In/Out
16 / 1
Two-way Talk
1 channel input / output BNC
Internal HDD
8 x SATA ports up to 10TB, max. 80TB HDD capacity
USB Interface
4 ports: 2x USB2.0, 2x USB3.0
Auxiliary Inputs
1 x RS232 port (PC comm. & keyboard) / 1 x RS485 (PTZ control)
Power Supply
100 ~ 240VAC, 50/60 Hz
Power Consumption
<35W (without HDD)
Operating Environment
-10 ~55°C / 10~90%RH / 86~106kpa
Dimensions
440mm x 455mm x 95mm (2U)
Rackmountable
Rackmount Unit
Weight
6.5kg (without HDD)
Cross Compatibility
Supported Video Inputs
Coax Input Support
IP Input Support
IP Input Max. Resolution
IP Input Max. Bandwidth
Display
Video Output
2 HDMI / 1 VGA / 1 TV (BNC)
Display Resolution
1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
Display Split
1 / 4 / 8 / 9 / 16 / 25 / 36
OSD
Camera title, time, video loss, camera lock, MD & recording
Recording
Maximum Resolution
1080p (1920 x 1080) / 720p (1280 x 720)
Frame Rate (Main)
1080p (1~15fps), 720p (1~25fps)
Frame Rate (Sub)
D1 (1~25fps)
Frame Rate (Third)
N/A
Video Compression
H.264+ / H.264
Bit Rate
1~6144Kbps per channel
Record Modes
Manual / Schedule (Regular, Continuous), Motion Detection, Alarm, Stop
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Features
Alarm Input / Output
16 channel input / 6 relay output
Trigger Events
Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; snapshot; internal buzzer; and screen tip overlay
Video Detection
MD zones: 396 (22 × 18) / Video loss / Camera blank
Playback Sync
1 / 4 / 9 / 16
Search Modes
Time/Date; Alarm; Motion detection; Exact search (to the second); Smart Search
Intelligent Functions
Face Detection
Backup Modes
USB Device / eSATA Device / Internal SATA burner (optional) / Network
Network
Ethernet
2x RJ-45 port (10/100M/1000M)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
Max. User Access
128 users
Remote View
iOS (iPhone, iPad), Android devices, Windows Phone
Other
Camera Configurations
Coaxial: 32 channels up to 1080p/15fps (HDCVI, HDTVI, AHD), 960H/25fps (analogue) / Network: Add 32 channels up to 5.0MP, Max 128Mbps Incoming Bandwidth
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
570 mm
Height
220 mm
Depth
570 mm
Weight
9.70 kg
