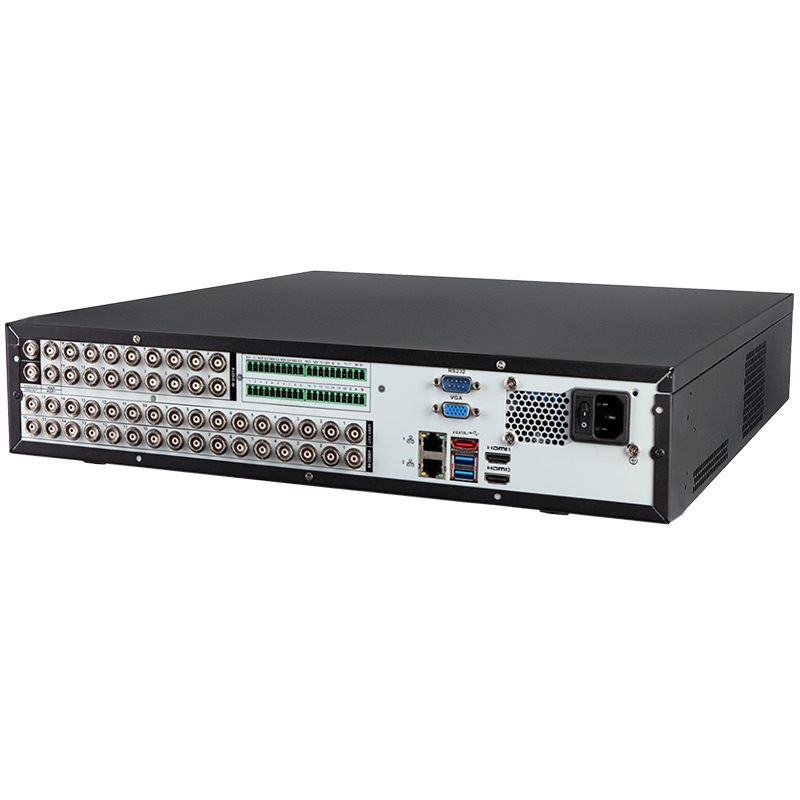

Ultimate Series 16 Channel 4.0MP HDCVI Digital Video Recorder

Brand logo
SKU CVR16ULT
Brand logo

Ultimate Series 16 Channel 4.0MP HDCVI Digital Video Recorder

SKU CVR16ULT

Stock may be limited. Please contact us for availability or for an alternative item.

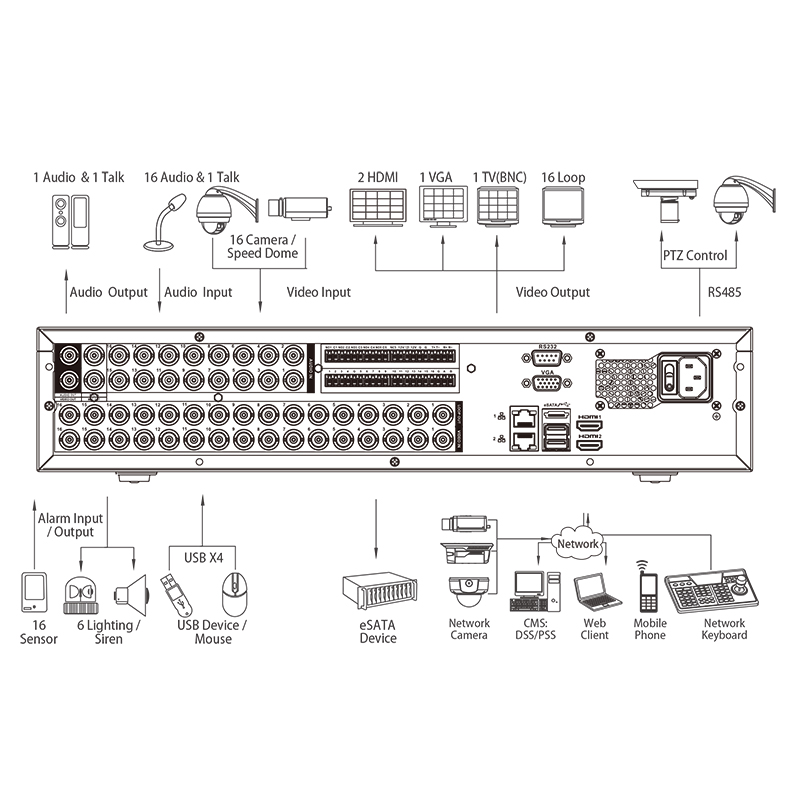

The CVR16ULT is a 16 channel HDCVI DVR capable of high resolution video over coaxial cable. Rapidly transform low-res surveillance into HD CCTV with 4.0MP recording (9x that of typical D1 resolution analogue), live view via HDMI up to Ultra HD and support for IP & analogue video inputs, all using existing coax cable.

Product features:
• Records 4.0MP (2560 x 1440) at 15fps, 1080p at 25fps
• Support for 4K/8.0MP HDCVI resolution (channels 1 and 9 only)
• 8 x SATA ports up to 10TB, max. 80TB HDD capacity
• HDCVI, HDTVI, AHD, analogue and IP camera input support
• Add 48 additional IP channels up to 8.0MP resolution
• Up to 700m video transmission over coaxial
• 2 x RJ-45 ports and 4 x auxiliary ports
• Configure remote view in seconds via QR code
• HDMI (1 x up to 4K) & VGA video output
• Backup via external USB device or local network
• Remote view for iOS & Android devices

Suggested Products

Suggested product image
HDMI to VGA Adapter Cable
HDMITOVGA
Suggested product image
19" Acer 1366 x 768 LCD Monitor (TN)
LCDACER19
Suggested product image
6RU 600mm Deep Wall Mount Data Cabinet
RACKMOUNTCAB6-600W
Suggested product image
2000VA Line-Interactive Tower UPS - 1200W
UPS2000VA
Suggested product image
HDCVI to HDCVI / HDMI / VGA / Composite Video Converter
VSCVIDECODER
Suggested product image
BNC Video Ground Loop Isolator
VSGLI

Links and Downloads

Securview CVR16ULT Datasheet (PDF) 1.84 MB
Smart PSS V2.0 (Mac) 90.05 MB
HDCVI User Manual 23.02 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
CVR_Firmware_Type1K_20191101 86.82 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux OS
Video Input
16 channel BNC
Audio In/Out
16 channel BNC/ 1 channel BNC
Two-way Talk
1 channel input / 1 channel output BNC
Internal HDD
8 x SATA ports up to 10TB, max. 80TB HDD capacity
USB Interface
4 x USB ports (2 x USB2.0, 2 x USB3.0)
Auxiliary Inputs
1 x RS232 port (PC comm. & keyboard) / 1 x RS485 (PTZ control) / 1 x RS422 (keyboard) / 1 x LOOP (HDCVI/Composite 8/16 BNC)
Power Supply
100 ~ 240VAC, 50/60 Hz
Power Consumption
<40W (without HDD)
Operating Environment
-10~55°C / 10~90%RH / 86~106kpa
Dimensions
440mm x 455mm x 95mm (2U)
Rackmountable
Yes (included)
Rackmount Unit
2RU
Weight
8.25kg (without HDD)
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Composite / IP
Coax Input Support
16 channels
IP Input Support
64 channels (16 substitute, 48 additional)
IP Input Max. Resolution
8.0MP
IP Input Max. Bandwidth
256Mbps
Display
Video Output
2 HDMI (1 x up to 4K/UHD resolution) / 1 VGA / 1 TV (BNC)
Display Resolution
3840 x 2160 / 2560 x 1440 / 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
Display Split
1/4/8/9/16/25/36
OSD
Camera title, time, video loss, camera lock, MD & recording
Recording
Maximum Resolution
8.0MP (3840 x 2160) / 4.0MP (2560 x 1440) / 1080p (1920 x 1080)
Frame Rate (Main)
8.0MP (1~12fps, channel 1 & 9 only) / 4.0MP (1~15fps) / 1080p (1~25fps)
Frame Rate (Sub)
D1 (1~25fps)
Frame Rate (Third)
N/A
Video Compression
H.264+ / H.264
Bit Rate
1~12288Kbps per channel
Record Modes
Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Features
Alarm Input / Output
16 channel input / 6 channel relay output
Trigger Events
Recording; PTZ; predefined tour; alarm out; push video notification; email notification; FTP upload; snapshot, internal buzzer; and screen tip overlay
Video Detection
MD zones: 396 (22 x 18) / Video loss / Camera blank
Playback Sync
1 / 4 / 9 / 16
Search Modes
Time/Date; Alarm; Motion detection; Exact search (to the second); Smart Search
Intelligent Functions
Smart Tracking, Face Detection(4 channels), People Counting(1 Channel)
Backup Modes
USB Device / eSATA Device / Internal SATA burner (optional) / Network
Network
Ethernet
2x RJ-45 port (10/100M/1000M)
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P, Alarm Server
Max. User Access
128 users
Remote View
iOS (iPhone, iPad), Android devices
Other
Category
HDCVI Surveillance
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
570 mm
Height
220 mm
Depth
570 mm
Weight
9.90 kg
