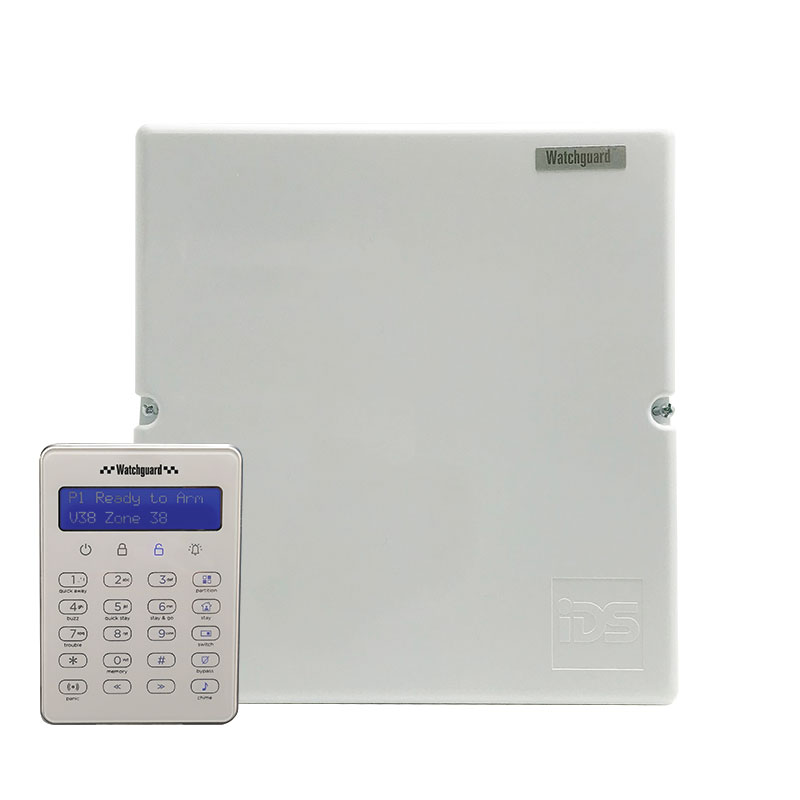

WGAP864: Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones

The WGAP864 is a versatile, microprocessor-based, fully featured 8/64 Zone alarm panel, which has eight partitions. The alarm panel provides immediate notification of burglary, fire, medical & panic conditions. There is a dedicated panic zone, monitored siren output, auxiliary power outputs and five (expandable to 25) programmable outputs that may be programmed to perform various trigger/switching functions. Program via USB cable in less than 30 Seconds! USB Programming Cable Sold Separately (Model: WGAPCABLEUSB)

Product features:
▪ 8 programmable, end of line supervised zone inputs & 8 alarm partitions
▪ 5 programmable outputs on alarm panel (expandable to 25 with Wired Zone Expander module)
▪ Programmable loop response time
▪ Auto arm/disarm capability per partition & by day - program to arm/disarm at pre-determined times
▪ Optional tamper reporting per zone using double end of line resistors (12k and 4k7)
▪ EEPROM memory retains all data in the event of a total power failure
▪ Dual reporting provides for duplicated reporting to two independent central base stations
▪ 3 quick arm modes: Away/Stay with no Exit delay/Stay with exit delay
▪ 32 user codes expandable to 128
▪ Log capable of 500 events expandable to 1000
▪ False alarm reduction features

Additional Accessories:
• Expand the original WGAP864 to wireless 16 zone by simply plugging the 16 Channel Wireless Receiver directly onto the main panel. (Model No: WGAP864WRX16)
• 2 Channel Receiver for WGAP864 (Model No: WGAP864WRX2)

Includes 1 x LCD Keypad (WGAP864KP)
