4-port Unmanaged Fast PoE Ethernet Switch

SKU VSPOE-SW4

4-port Unmanaged Fast PoE Ethernet Switch

SKU VSPOE-SW4

Stock may be limited. Please contact us for availability or for an alternative item.

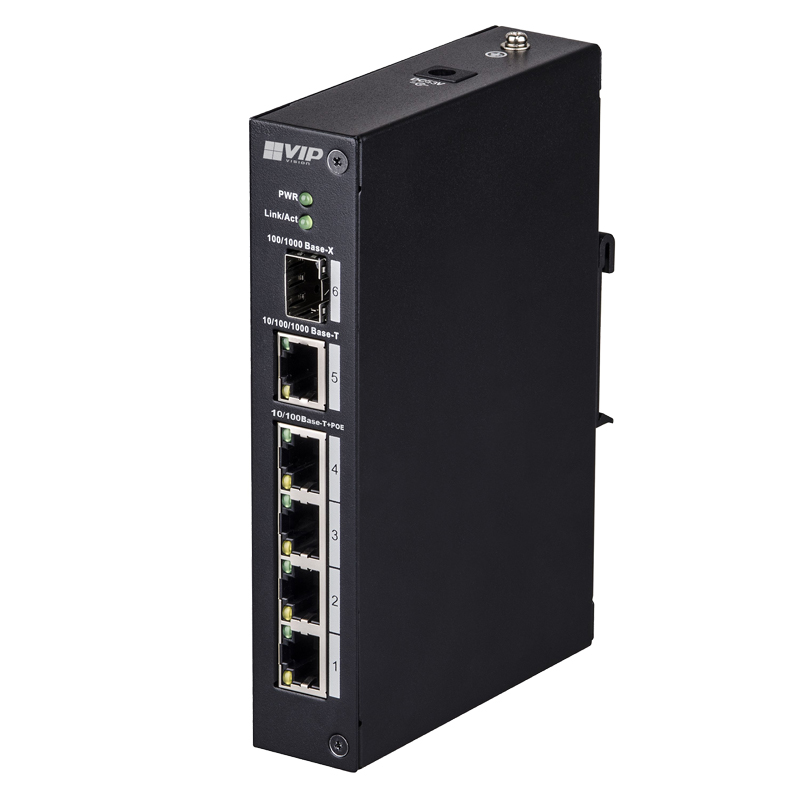

The VSPOE-SW4 is a DIN rail mountable, fast PoE switch in 4 ports. It is ideal for building secondary networks - providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

• 4 x Fast PoE+ device ports with 100Mbps per port
• 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
• PoE and PoE+ for device support up to 30W per port
• Total PoE power load up to 60W
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Professional appearance full metal enclosure
• Lightning overvoltage protection up to 4kV

Suggested Products

Mini GBIC / SFP Multi-mode Fibre Adapter (MMF)
SFPMM1

8-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW8

16-port Managed Fast Hi-PoE Ethernet Switch
VSPOE-SWA16

Links and Downloads

VIP Vision VSPOE-SW Series Datasheet (PDF) 0.74 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Switch Specification

Ports

4 ports

Speed

Fast 10/100

Device Ports

4 x 10/100 Base-T (PoE power supply ports)

Uplink Ports

1 x 1000 Base-X / 1 x 10/100/1000 Base-T

Switching Capacity

6.8Gbps

Packet Forwarding Rate

3.57Mpps

Exchange Mode

Store & forward

Power over Ethernet

PoE

Yes

PoE Protocol

PoE (IEEE802.3af) / PoE+ (IEEE802.3at)

Switch Power Load

Per Port: ≤30W / Total: ≤60W

Management

Switch Management

Unmanaged

MAC Address Capacity

Virtual LAN

N/A

Network Time Protocol

N/A

Spanning Tree Protocol

N/A

Port Aggregation

N/A

Port Mirroring

N/A

LLDP

N/A

DHCP

N/A

Extend Mode

N/A

Flow Control

N/A

Security Features

N/A

System Maintenance

N/A

Quality of Service

N/A

Network Management

N/A

PoE Management

N/A

Environmental

Input Power

48 ~ 57VDC

Lightning Protection

Common Mode: 4KV / Differential Mode: 2KV

Mounting Options

DIN rail

Operating Environment

-30°C~65°C / RH10%~90%

Weight

0.48kg

Dimensions

150 x 100 x 30mm

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

240 mm

Height

270 mm

Depth

80 mm

Weight

1.30 kg
