Camera
Image Sensor (Visible)
Max. Resolution
2.0 Megapixel
Effective pixel (Visible)
Min Illumination
0.005 Lux/F1.8 (Color), 0.0005 Lux/F1.8(B/W) 0 Lux/F1.8 (IR on)
Infrared System
1 x Infrared LED, 35m range, Auto/manual on/off control
Thermal
Image Sensor (Thermal)
Effective pixel (Thermal)
Range & Sensitivity
Image Settings
Brightness, Sharpness, Region of Interest, Auto Gain Control, Flat Field Correction, 3D Digital Noise Reduction
Colour Palettes
18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.)
Image Fusion Modes
Lens
Focal Length
Field of View
Horizontal: 80°, Vertical: 45°
Aperture
Close Focus Distance
Video
Resolution & Frame Rate (Main)
Resolution & Frame Rate (Sub)
Video Compression
H.265 / H.264M / H.264H / H.264B / MJEG
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / DWDR
White Balance
Auto / Indoor / Outdoor / Manual etc.
Gain Control
Auto / Manual
Noise Reduction
2D/3D DNR
Picture Control
Mirror / Flip (180°)
IVS
Intelligent Functions
Tripwire, Intrusion
Thermal Functions
Fire detection & alarm, cold/hot spot trace, human/vehicle classification, smoke detection
Interface
Ethernet
RJ-45 (10/100Base-T)
Network Protocol
Max. User Access
20 users
Audio Interface
1 Input / 1 Output
Alarm Interface
2 Input / 2 Output
Edge Storage
MicroSD Card (up to 256GB) / memory status display (normal/error/active/lock/formatting) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE
Power Consumption
<12W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
No
Series
Professional Series
Camera Type
Bullet
Housing
Metal
Dimensions & Weight
Other
Bit Rate
H.264: 640 ~ 8192Kbps
Category
Network Surveillance
Detect (25px/m)
Person: 146m / Vehicle: 389m

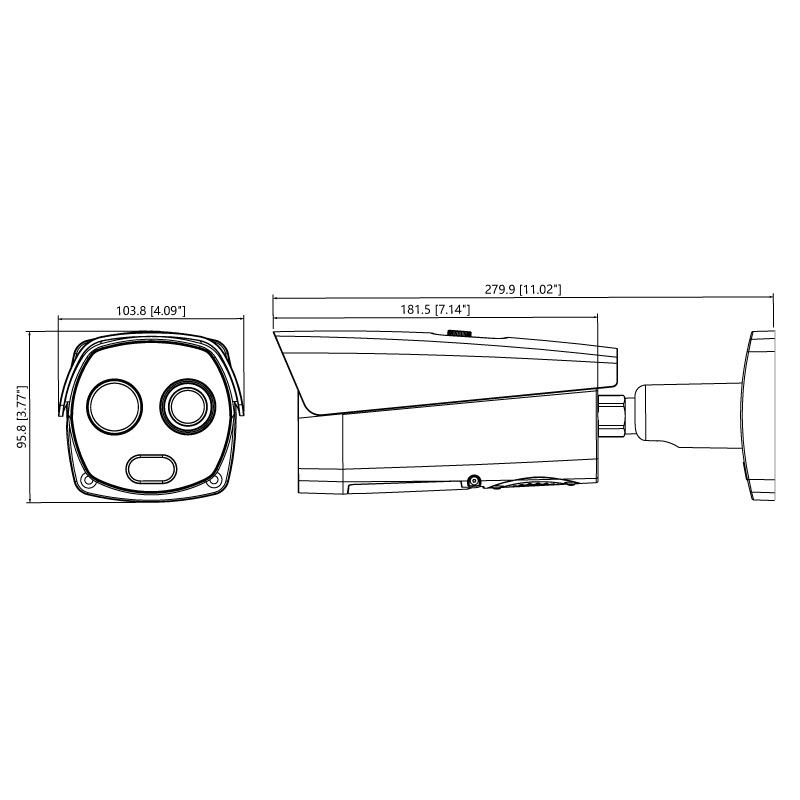

Dimensions
280mm x 104mm x 96mm (with bracket)
Effective Pixels
1920 (H) x 1080 (V)
Effective Pixels (Thermal)
256 (H) x 192 (V)
ePoE
No
Field of View (Thermal)
Horizontal: 50.6°, Vertical: 37.8°
Focus
Fixed
Focus (Thermal)
Athermalized, Focus-free
Frame Rate (Main)
Visible: 50Hz 1920 x 1080 to 704 x 576 (1~25fps) / Thermal: 50Hz 1280 x 960 to 256 x 192 (1~25fps)
Frame Rate (Sub)
Visible: 50Hz 704 x 576 to 352 x288 (1~25fps) / Thermal: 50Hz 640 x 480 to 256 x 192 (1~25fps)
Frame Rate (Third)
N/A
Identify (250px/m)
Person: 19m / Vehicle: 49m
Image Sensor
1/2.8’’ 2.0MP Progressive Scan CMOS
Infrared
Yes
IVS
Yes
Lens / Iris
4mm F2.0 Fixed Lens
Lens / Iris (Thermal)
3.5mm F1.0 Fixed Lens
Lens Type
Fixed
Net Weight
1.4kg
Observe (63px/m)
Person: 57m / Vehicle: 153m
Pan/Tilt/Rotation
N/A
Protocol
HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPOE,IPv4/v6, SNMP, QoS, UPnP, NTP
Recognise (125px/m)
Person: 38m / Vehicle: 97m
Resolution
1080p (1920 x 1080) to CIF (256 x 192)
RS485
Support
RTMP Support
No
Sensitivity (NETD)
<50mK@f/1.1
Spectral Range
8~14μm
Streaming Method
Unicast / Multicast
Thermal Sensor
Uncooled VOx Microbolometer
Tri-Axis Mounting
No
Ultra Low Light Colour
Yes
Video Interface
1 Port BNC
Weather Resistance
Yes
Warranty (Years)
4
