Thermal Body Temperature Measurement System

Brand logo
SKU VSIPT-2BTS
Brand logo

Thermal Body Temperature Measurement System

SKU VSIPT-2BTS

Available by special order only. Please contact us for lead times.

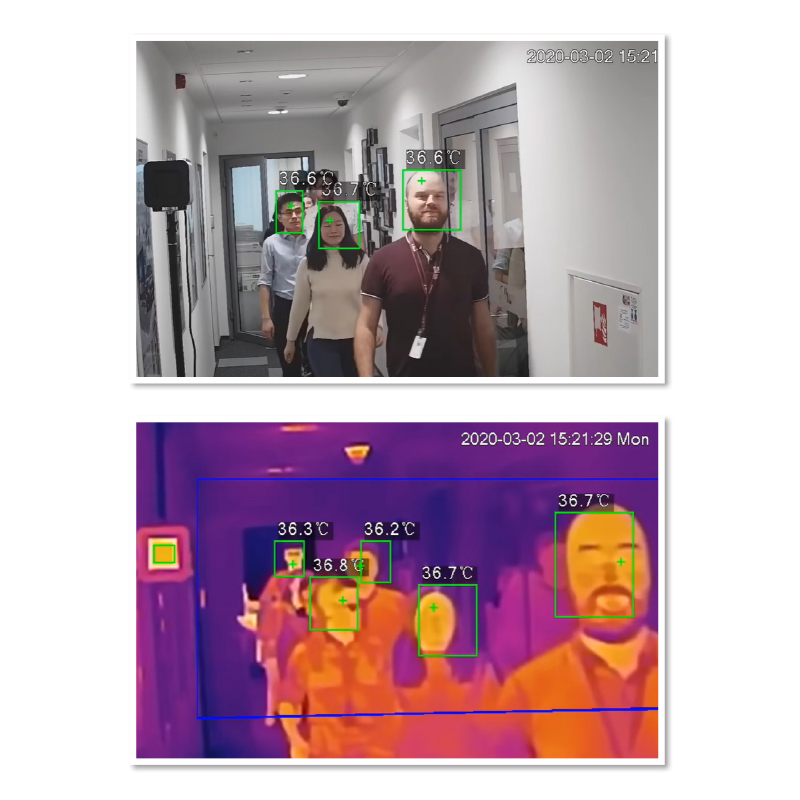

Doubling as a surveillance system and thermal scanner, the VSIP-2BTS acts as a fast, reliable & precise screening method in high traffic areas. The thermal lens is fine-tuned for body temperature measurement, serving as an automatic alert system and activating a built-in alarm when high temperatures are detected.

Thermal features:
• Set body temperature alerts ranging from 30°C to 45°C
• High temperature accuracy with ±0.3°C margin of error
• Built-in light & buzzer, with additional alarm outputs
• Temperature test covers up to 15 people simultaneously

Camera features:
• Stream up to Full HD/1080p (1920 x 1080) at 25fps
• 2.0MP standard sensor & 6mm fixed lens (52.8°)
• One IP address/channel for thermal & visible images
• 50m infrared range, true WDR (120dB) & 2D/3D DNR
• Uncooled VOx thermal sensor (256x192 pixels)
• 7.5mm fixed lens for thermal camera (32.4°)
• Detects 8~14μm wavelength infrared spectral range
• Audio & alarm input/output, IP67 rated body & PoE

System Includes:
1 x 2.0MP Thermal Body Temperature Camera
1 x BTM Calibration Target
2 x Mounting Tripods
2 x Tripod Connectors for Camera & Calibration Target

Suggested Products

Suggested product image
Professional AI 16 Channel Network Video Recorder with ePoE (320Mbps)
NVR16PRO-I
Suggested product image
Temperature Blackbody for Thermal Systems
VSIPT-BB
Suggested product image
Mounting Bracket for Thermal Systems
VSIPT-MOUNT
Suggested product image
Tripod for Thermal Systems
VSIPT-TRIPOD

Links and Downloads

VIP Vision Thermal Body Temperature Camera (S) Datasheet (PDF) 1.19 MB
VSIPT-2BTS & VSIPTC2MPFB2 Web Operation Manual V1.0.3 5.50 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Visible Light Camera
Image Sensor
1/2.8’’ 2.0MP Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
512MB / 32MB
Ultra Low Light Colour
Yes
Min Illumination
0.01 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)
S/N Ratio
> 55dB
Infrared
Yes
Infrared System
1 x Infrared LED, 50m range, Auto/manual on/off control
Lens Type
Fixed
Lens / Iris
6.0mm F2.0 Fixed Lens
Field of View
52.8° (H), 30.3° (V)
Focus
Fixed
Temperature
Measurement Range
30°C ~45°C
Measurement Accuracy
Max ±0.3°C with Blackbody Unit, Max ±1°C without Blackbody Unit
Measurement Mode
Spot / Line / Area
Measurement Rule
Spot: 12 / Line: 12 / Area: 12 / Supports 12 rules simultaneously
Thermal Camera
Thermal Sensor
Vanadium Oxide Uncooled FPA
Effective Pixels (Thermal)
256 (H) x 192 (V)
Sensitivity (NETD)
<50mK@f/1.0
Spectral Range
8~14μm
Image Settings
Brightness, Sharpness, Region of Interest, Auto Gain Control, Flat Field Correction, 3D Digital Noise Reduction
Colour Palettes
18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.)
Lens / Iris (Thermal)
7.5mm Fixed Lens
Field of View (Thermal)
32.4° (H), 24.6° (V)
Focus (Thermal)
Athermalized / Best detecting distance: 3m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
Visible: 1080p to 720p (1 ~ 25fps) / Thermal: 1280 x 960 to 720p (1 ~ 25fps)
Frame Rate (Sub)
Visible: D1 to CIF (1 ~ 25fps) / Thermal: 640 x 480 to 320 x 240 (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264M / H.264H / H.264
Bit Rate
H.264: 640 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Manual / Indoor / Outdoor / Tracking / Sodium lamp / Street lamp / Natural
Gain Control
Auto / Manual
Noise Reduction
2D/3D DNR
Picture Control
Mirror / Flip (180°)
IVS
IVS
No
Intelligent Functions
Region of Interest (4 zones)
Thermal Functions
-
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
RTMP Support
NA
Interface
Video Interface
1.0Vp-p/75Ω, PAL/NTSC (HDCVI Optional)
Audio Interface
1 Input / 1 Output
Alarm Interface
2 Input / 1 Output
RS485
Support
Edge Storage
MicroSD Card (up to 256GB)
Interoperability
ONVIF / CGI / SDK
Environmental
Power Supply
12VDC / PoE (802.3af) / ePoE
Power Consumption
<18W
Operating Conditions
10° ~ 30° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Professional Series
Camera Type
Thermal Bullet
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No
Dimensions
365mm x 175mm x 176mm (with bracket)
Net Weight
<1.40kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
389 mm
Height
91 mm
Depth
391 mm
Weight
3.00 kg
