VSIPP-8BD-ID3: Professional AI Series 8.0MP 180° Active Deterrence Bullet

Our people, our products: Dedicated to winning you more business™

Merry Christmas! We are closed for the Christmas period. We will be back on the 2nd of January!

Professional AI Series 8.0MP 180° Active Deterrence Bullet

SKU VSIPP-8BD-ID3

Professional AI Series 8.0MP 180° Active Deterrence Bullet

SKU VSIPP-8BD-ID3

The VIP Vision VSIPP-8BD-ID3 in the Pro AI Series delivers 180° site-wide coverage and a suite of AI detection and active deterrence features to secure homes and business. Perform the job of multiple cameras in a single camera with panoramic field of view from twin 4.0 megapixel 2.8mm lenses and unique electronic PTZ mobility functions via your NVR.

This active deterrence model incorporates AI detection and a variety of in-camera features to deter intruders. Upon a human or vehicle detection event, these cameras can trigger a white LED spotlight for security lighting, a flashing blue/red LED strobe and a loud siren with programmable message/tone to deter intruders. They are ideal for active security across a variety of residential and commercial applications.

Camera features:
• Dual 4.0MP sensors combine for single channel 8.0MP@20fps (4096 x 1860) image
• Twin wide-angle 2.8mm fixed lenses for 180° viewing angle with ePTZ functions
• Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI SSA (scene adjustment) automatically detects/adjusts lighting modes for optimal image
• 24/7 Colour low light performance at with colour 0.005lx minimum illumination
• 25m infrared range via twin infrared LEDs; 20m twin white LEDs for visible light illumination
• Adjustable lighting modes with backlight/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• H.265 encoding for efficient storage & streaming
• Built-in microphone and loudspeaker for 2-way talking
• 1 Audio In/Output (RCA)
• MicroSD slot for recording at the edge up to 256GB
• IP67 weather rated housing for outdoor use

Suggested Products

Adapter/Junction Box for Surveillance Cameras
VSBKTA130E

Professional AI Series 6.0MP Fixed Deterrence Turret
VSIPP-6DG-ID3

Professional AI Series 8.0MP 180° Active Deterrence Turret
VSIPP-8DD-ID3

Professional AI Series 8.0MP Fixed Deterrence Turret
VSIPP-8DG-ID3

Specifications

Camera

Image Sensor

Dual 1/2.7” 8.0MP Progressive Scan CMOS

Max. Resolution

8.0 Megapixel

Effective Pixels

4096 (H) x 1860 (V)

RAM / ROM

1GB / 128MB

Min Illumination

0.005 Lux/F1.4 (Color), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (IR)

S/N Ratio

> 56dB

Infrared System

2 x Infrared LED, 25m range, Auto/manual on/off control

White Light LED

2 x Warm White LED, 20m range, Auto/manual on/off control

Active Deterrence

1 x Red & Blue Strobe, 1 x Siren Loudspeaker

Lens

Lens Type

Fixed

Lens / Iris

2.8mm F1.4 Fixed Focal Lens with Fixed Iris

Field of View

Horizontal: 180°, Vertical: 86°

Focus

Auto Focus / 0.8m Min. Focus Distance

DORI

Detect (25px/m)

51m

Observe (63px/m)

20m

Recognise (125px/m)

10m

Identify (250px/m)

Video

Resolution

8.0MP (4096 x 1860) to 960 x 432

Frame Rate (Main)

8.0MP (1 ~ 20fps)

Frame Rate (Sub)

1200 x 530 (1 ~ 20fps)

Frame Rate (Third)

1920 x 860 (1 ~ 20fps)

Video Compression

H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG

Bit Rate

H.265: 6 ~ 16384Kbps / H.264: 6 ~ 16384Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA)

Yes

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control

Auto

Noise Reduction

3D DNR

Picture Control

N/A

IVS

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog

Perimeter Protection

Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles)

Face Detection

N/A

Face Attributes

N/A

People Counting

N/A

Heat Map

N/A

Event Trigger

Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly

Intelligent Search

Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Streaming Method

Multicast

Max. User Access

20 Users (Total bandwidth: 64MB)

Interface

Video Interface

N/A

Audio Interface

Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723

Alarm Interface

1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC

RS485

N/A

Edge Storage

MicroSD Card (up to 256GB) / NAS / FTP / SFTP

Interoperability

ONVIF (Profile S, Profile G, Profile T) / CGI

Environmental

Power Supply

12VDC / PoE (802.3af)

Power Consumption

Deterrence: <9W (12VDC), <10.35W (PoE)

Operating Conditions

-40°C ~ +60°C / ≤95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Series

Professional AI Series

Camera Type

Bullet

Housing

Metal

Pan/Tilt/Rotation

Pan: 0° ~ 360°, Tilt: 0° ~ 77°, Rotation: 0° ~ 360°

ePoE

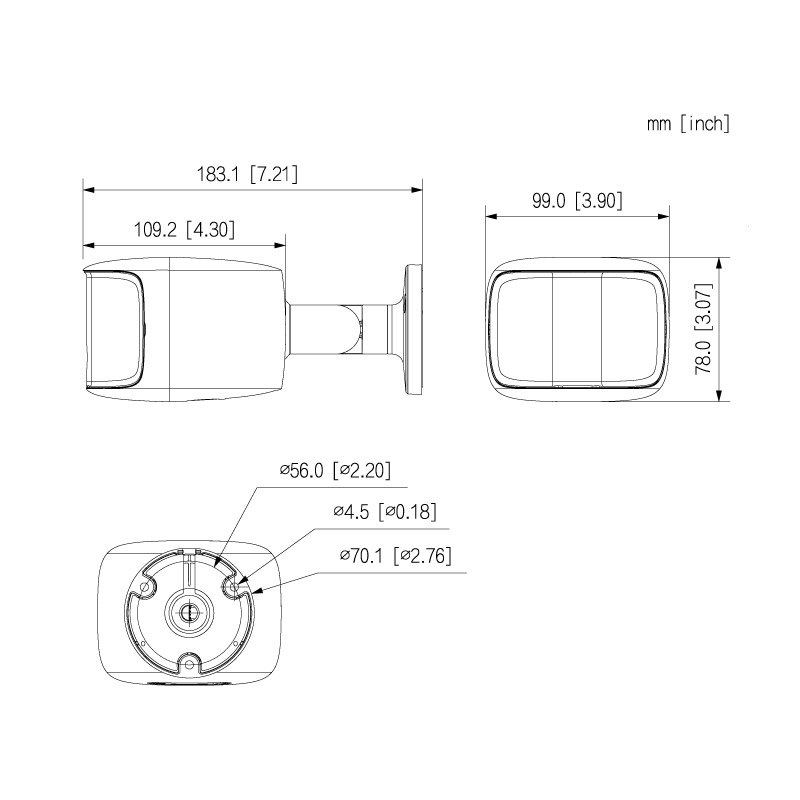

Dimensions

Ø 183mm x 99mm x 78mm

Net Weight

0.69kg

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

160 mm

Height

160 mm

Depth

150 mm

Weight

0.87 kg
