Professional AI Series 6.0MP Fixed Turret (Black)

Brand logo
SKU VSIPP-6DIRG-I-B
Brand logo

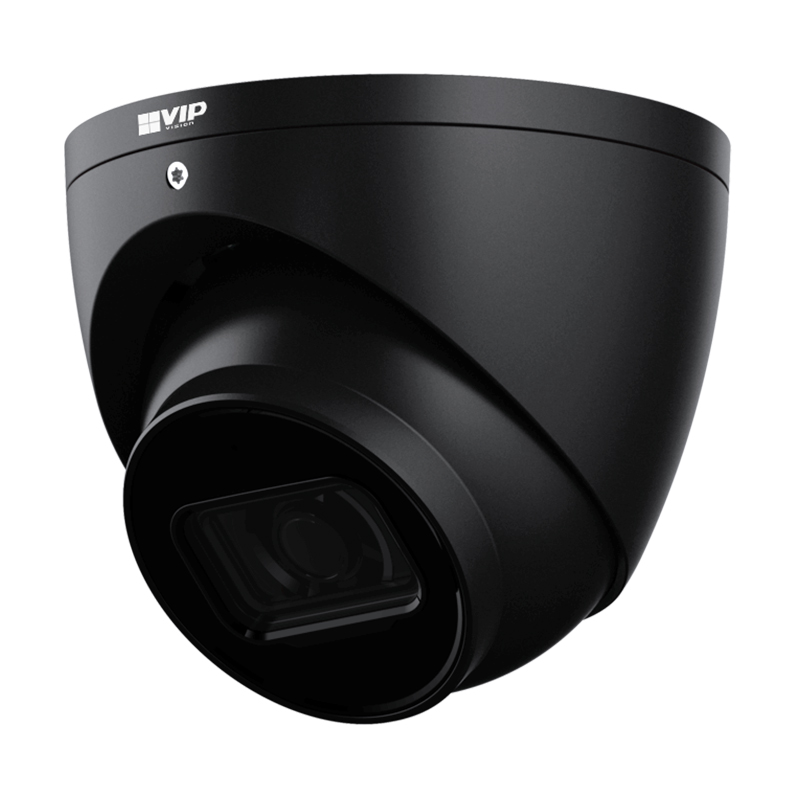

Professional AI Series 6.0MP Fixed Turret (Black)

SKU VSIPP-6DIRG-I-B

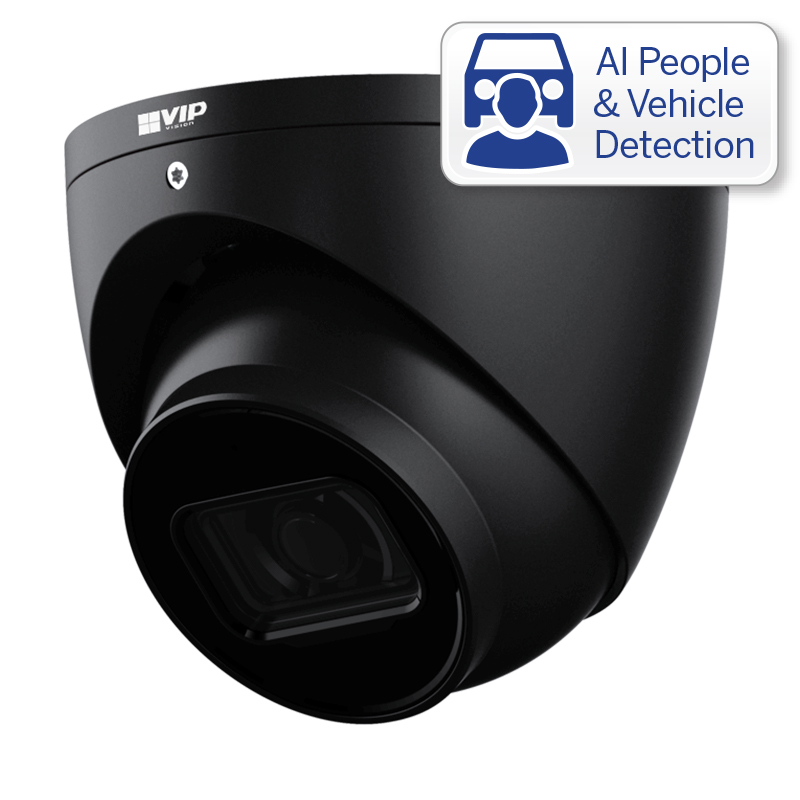

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:
• Stream up to 6.0MP (3072 x 1728) at 20fps
• 2.8mm fixed lens with 99° viewing angle
• H.265 encoding for efficient storage & streaming
• Up to 50m infrared range; true day/night (auto ICR)
• Built-in microphone and microSD slot for edge recording
• AI powered perimeter protection & smart motion detection (SMD+)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Adapter/Junction Box for Surveillance Cameras (Black)
VSBKTA139-B
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Rain Cover Dome Camera Bracket
VSBKTA200W
Suggested product image
Right Angle Wall Mount Camera Bracket (Black)
VSBKTB204W-B
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

VIP Vision Professional AI Fixed Turret Datasheet (PDF) 1.06 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB
VSIPP-6DIRG-I Firmware 2021-04-10 74.33 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.7’’ 6.0MP Progressive Scan CMOS
Max. Resolution
6.0 Megapixel
Effective Pixels
3072 (H) x 1728 (V)
RAM / ROM
512MB / 128MB
Min Illumination
0.005 Lux/F1.5 (Color)
S/N Ratio
> 56dB
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 99°, Vertical: 53°
Focus
Auto Focus / 0.9m Min. Focus Distance
DORI
Detect (25px/m)
56m
Observe (63px/m)
22m
Recognise (125px/m)
11m
Identify (250px/m)
6m
Video
Resolution
6.0MP (3072 x 1728) to CIF (352 x 288)
Frame Rate (Main)
6.0MP (1 ~ 20fps) / 4.0MP (1 ~25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.265: 19 ~ 8192Kbps / H.264: 32 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC: G.723
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<7.2W
Operating Conditions
-40°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional AI Series
Camera Type
Turret
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE
No
Dimensions
Ø106mm x 93.6mm
Net Weight
0.55kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
140 mm
Height
140 mm
Depth
120 mm
Weight
1.08 kg
