Camera
Image Sensor
1/2.7” 8.0MP Progressive Scan CMOS
Max. Resolution
6.0 Megapixel
Effective Pixels
3072 (H) x 2048 (V)
RAM / ROM
2G / 256MB
Min Illumination
0.005 Lux/F1.4 (Color , 30 IRE), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (IR)
S/N Ratio
> 56dB
Infrared System
1 x Infrared LED, 30m range, Auto/manual on/off control
White Light LED
1 x Spotlight (Warm White), Auto/manual on/off control
Active Deterrence
1 x Red & Blue Strobe, 1 x Loudspeaker Siren
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F1.0 Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 97°, Vertical: 70°, Diagonal: 128°
Focus
Auto Focus / 1.5m Min. Focus Distance
DORI
Detect (25px/m)
66m
Observe (63px/m)
26m
Recognise (125px/m)
13m
Identify (250px/m)
7m
Video
Resolution
6.0MP (3072 x 2048) to CIF (352 x 288 288/352 × 240)
Frame Rate (Main)
6.0MP (1 ~ 25fps)
Frame Rate (Sub)
704 x 576 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG
Bit Rate
H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR) / Average Bit Rate (ABR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog, Object Abandoned / Missing
Perimeter Protection
Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle, Search by attributes such as clothing/vehicle colour and vehicle type
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Streaming Method
Unicast / Multicast
Max. User Access
20 Users (Total bandwidth: 64MB)
Interface
Video Interface
N/A
Audio Interface
Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723
Alarm Interface
1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP / SFTP
Interoperability
ONVIF (Profile S, Profile G, Profile T) / P2P / CGI / Milestone
Environmental
Power Supply
12VDC / PoE
Power Consumption
< 8.6 W (12 VDC); < 10.1 W (PoE)
Operating Conditions
-40°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional AI Series
Camera Type
Turret
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE
No

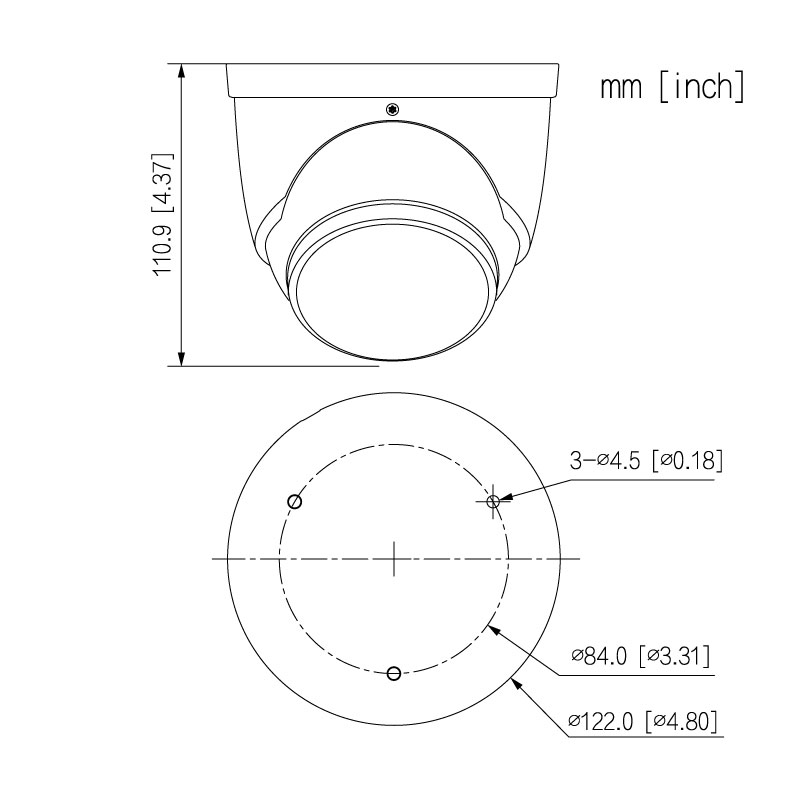

Dimensions
Ø122mm x 111mm
Net Weight
0.75kg
Warranty (Years)
4
