VSIPP-2DIRG-IL: Professional AI Series 1080p Fixed Turret Dome with LEDs

Our people, our products: Dedicated to winning you more business™

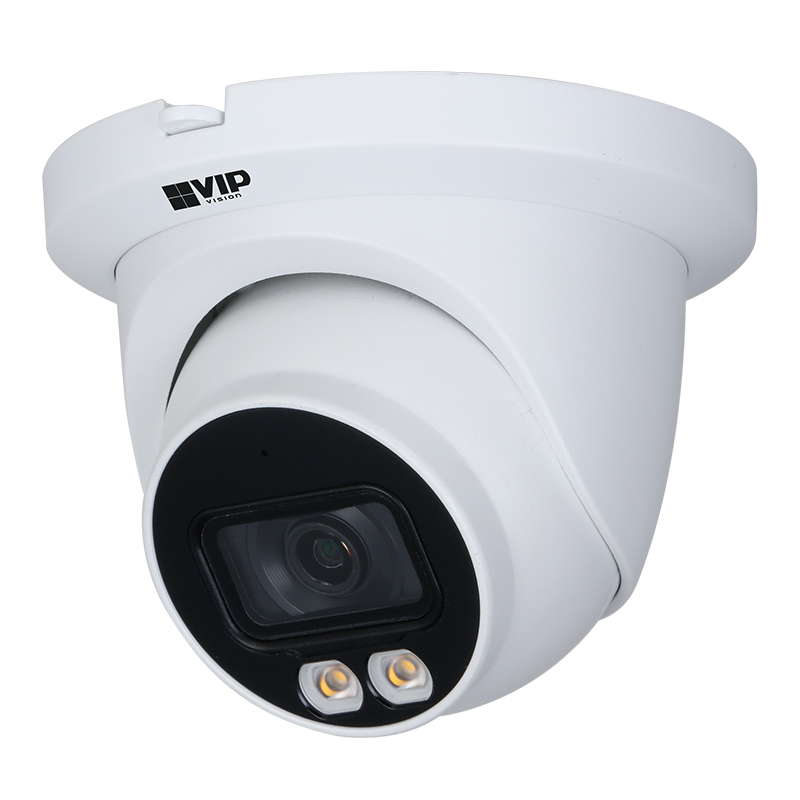

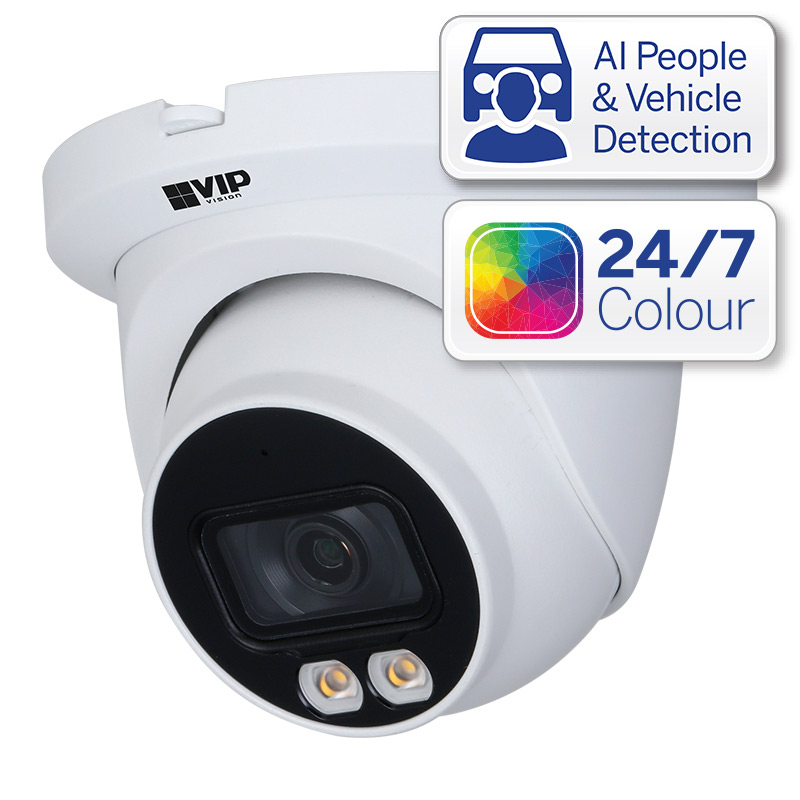

Professional AI Series 1080p Fixed Turret Dome with LEDs

SKU VSIPP-2DIRG-IL

Professional AI Series 1080p Fixed Turret Dome with LEDs

SKU VSIPP-2DIRG-IL

Stock may be limited. Please contact us for availability or for an alternative item.

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. Capture full colour detail and illuminate the scene at night for extra security with the built-in LED lights, that are controlled manually.

Camera features:
• Stream up to Full HD 1080p (1920 x 1080) at 25fps
• 3.6mm fixed lens with 84° viewing angle
• 24/7 Colour low light footage at 0.0015lx
• H.265 encoding for efficient storage & streaming
• Built-in warm white LED lights for 30m illumination
• MicroSD slot for recording at the edge up to 256GB
• AI powered perimeter protection & smart motion detection (SMD+)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use

Suggested Products

Adapter for Ceiling & Wall Mount Brackets
VSBKTA106

780mm Extender for Ceiling Mount Bracket
VSBKTA117

Adapter/Junction Box for Surveillance Cameras
VSBKTA130E

Adapter/Junction Box for Surveillance Cameras
VSBKTA137

Triple Clamp Pole Mount Camera Bracket
VSBKTA150

Corner Wall Mount Camera Bracket
VSBKTA151

Dual Clamp Pole Mount Camera Bracket
VSBKTA152E

Right Angle Wall Mount Camera Bracket
VSBKTB203W

760mm Ceiling Mount Dome Bracket
VSBKTB220C

Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

VIP Vision Professional AI Turret with LEDs Datasheet (PDF) 0.67 MB

Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Camera

Image Sensor

1/2.8’’ 2.0MP Progressive Scan CMOS

Max. Resolution

Effective Pixels

1920 (H) x 1080 (V)

RAM / ROM

512MB / 128MB

Min Illumination

0.0015 Lux/F1.0 (Color)

S/N Ratio

> 56dB

Infrared System

N/A

Lens

Lens Type

Lens / Iris

3.6mm Fixed Focal Lens with Fixed Iris

Field of View

Horizontal: 84°, Vertical: 45°

Focus

Auto Focus / 1.7m Min. Focus Distance

DORI

Detect (25px/m)

55m

Observe (63px/m)

22m

Recognise (125px/m)

11m

Identify (250px/m)

Video

Resolution

1080p (1920 x 1080) to CIF (352 x 288)

Frame Rate (Main)

1080p (1 ~ 25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

720p (1 ~ 25fps)

Video Compression

H.265 / H.264 / H.264H / H.264B / MJPEG

Bit Rate

H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Color / B&W

Lighting Compensation

BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA)

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones)

Perimeter Protection

Tripwire & Intrusion (Add recognition of humans & vehicles)

Face Detection

N/A

Face Attributes

N/A

People Counting

N/A

Heat Map

N/A

Event Trigger

N/A

Intelligent Search

Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

Streaming Method

Unicast / Multicast

Max. User Access

20 Users

Interface

Video Interface

N/A

Audio Interface

Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC

Alarm Interface

N/A

RS485

N/A

Edge Storage

MicroSD Card (up to 256GB) / NAS / FTP / SFTP

Interoperability

ONVIF (Profile S, Profile G) / P2P / CGI / Milestone / Genetec

Environmental

Power Supply

12VDC / PoE (802.3af)

Power Consumption

<8.1W

Operating Conditions

-40°C ~ +60°C / ≤95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Series

Camera Type

Housing

Metal

Pan/Tilt/Rotation

Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°

ePoE

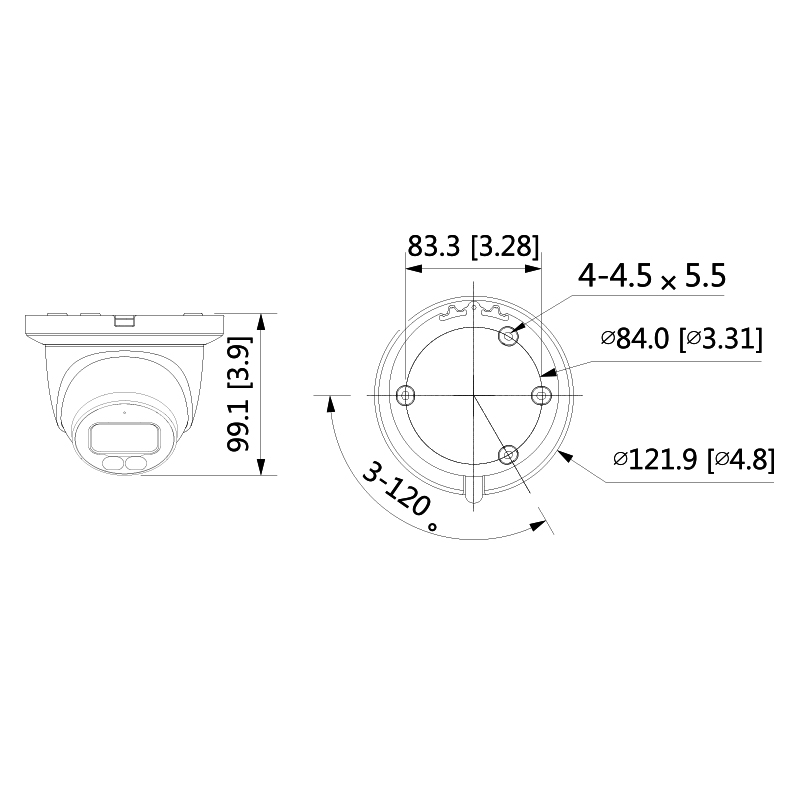

Dimensions

Ø122mm x 99mm

Net Weight

0.66kg

Other

LED Illumination

2 x LEDs (warm white), 30m range, auto/manual on/off control (Via web interface)

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

160 mm

Height

160 mm

Depth

140 mm

Weight

0.70 kg
