Traffic AI Series 2.0MP Motorised AI ANPR Bullet

Brand logo
SKU VSIPNP-2BIRM-I2
Brand logo

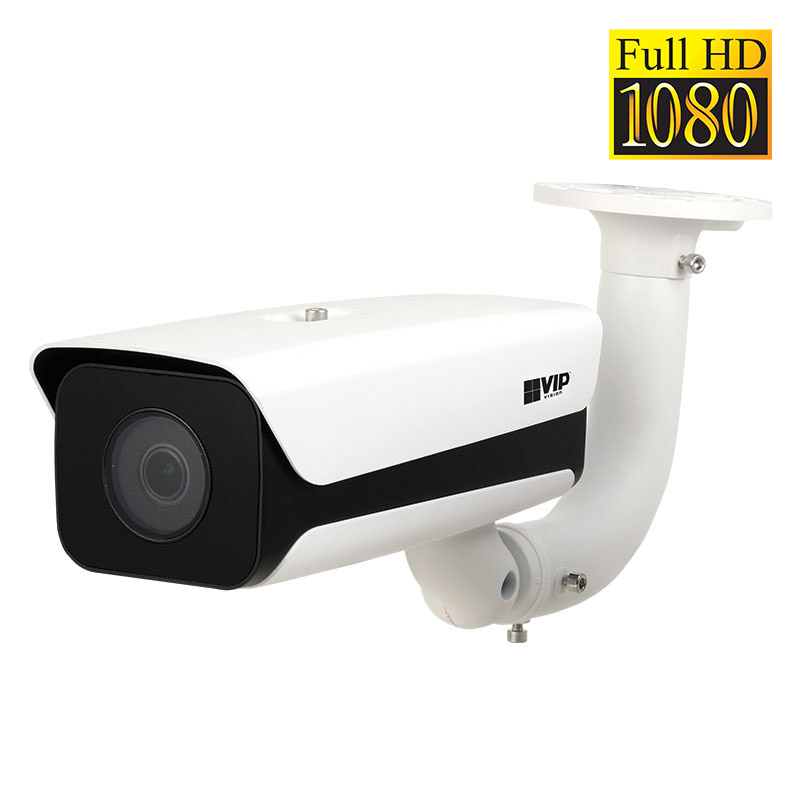

Traffic AI Series 2.0MP Motorised AI ANPR Bullet

SKU VSIPNP-2BIRM-I2

Stock may be limited. Please contact us for availability or for an alternative item.

Specially designed for number plate enhancement, Traffic AI Series number plate cameras are designed to obtain video evidence with vehicle identification in controlled environments with challenging lighting conditions. Enhanced with AI, this series has superior plate recognition compared to earlier ANPR models and additional smart features.

Product features:
• Stream Full HD 1080p (1920 x 1080) at 25fps
• 2.7~13.5mm motorised lens (119 ~ 32°, DC auto iris)
• Superb low light colour performance at 0.002lx
• Automatic number-plate recognition (ANPR)
• AI-enhanced plate capture and vehicle detection
• Edge enhancement for number plate detail & legibility
• Supports shutter speed windowing; set min/max speed
• Highlight compensation removes headlight glare
• Capture number plates for vehicles going up to 30km
• Identify vehicle size, colour & direction with AI
• Configurable OSD showing time, date, number plate etc.
• IP67 rated weather resistant metal housing

* Includes mounting bracket

Suggested Products

Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Housing Bracket for ANPR Bullet Cameras
VSBKTA162
Suggested product image
Wall Mount Bracket for ANPR Bullet Cameras
VSBKTB605

Links and Downloads

VIP Vision AI Traffic Series Motorised Bullet 2.0 & 4.0MP Datasheet (PDF) 0.88 MB
ANPR Quick Setup Guide
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.8" 2.0MP Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
N/A
Min Illumination
0.005 Lux/F1.3 (Color), 0 Lux/F1.3 (IR on)
S/N Ratio
N/A
Infrared System
6 x Infrared LED, 12m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
3.2 ~ 10.5mm Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 108°~30°, Vertical: 56°~17°, Diagonal: 131°~35°
Focus
Auto Focus
Video
Resolution
1080p (1920 x 1080) to D1 (704 x 576)
Frame Rate (Main)
1080p (1 ~ 25fps)
Frame Rate (Sub)
720p (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264M / H.264H / H.264B / MJPEG
Bit Rate
H.264/H.265: 32 ~ 32768Kbps / MJPEG: 512 ~ 65536Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
WDR (96dB)
Smart Scene Adaptive (SSA)
N/A
White Balance
Auto / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
Yes
Intelligent Functions
Number Plate Edge Enhancement, Number Plate Recognition, Video Detection, I/O Coil, Snapshot, OSD (Time, Location, Number Plate, Lane No.), Barrier Control (1ch Relay Out), Vehicle Data Structuring (Vehicle Size, Vehicle Colour & Vehicle Direction)
Vehicle Recognition
Vehicle Type, Logo, Series, Color, Number Plate, Features of Driver and Front-seat Passenger, Vehicles without Plate. Vehicle recognition rate ≥95%
Detection Range / Rate
Capture Range: 3~6m / Lane Width: 3~4m / Detection Rate: ≥99%
Max. Detection Speed
30km/h
Network
Ethernet
RJ-45 (100/1000 Base-T)
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 Input / 1 Output
Alarm Interface
3 Input / 3 Output
Auxiliary Interface
2 x RS485 / 1 x RS232 / 1 x Analog Output
Edge Storage
FTP / Micro SD Card (supports max. 128GB)
Interoperability
N/A
Environmental
Power Supply
12VDC / 24VAC / PoE+ (802.3at)
Power Consumption
<20W
Operating Conditions
-30° ~ +65° C / Less than 90% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
IK10
Series
Traffic AI Series
Camera Type
Bullet
Housing
Metal & plastic, installed with bracket (Φ14)
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No

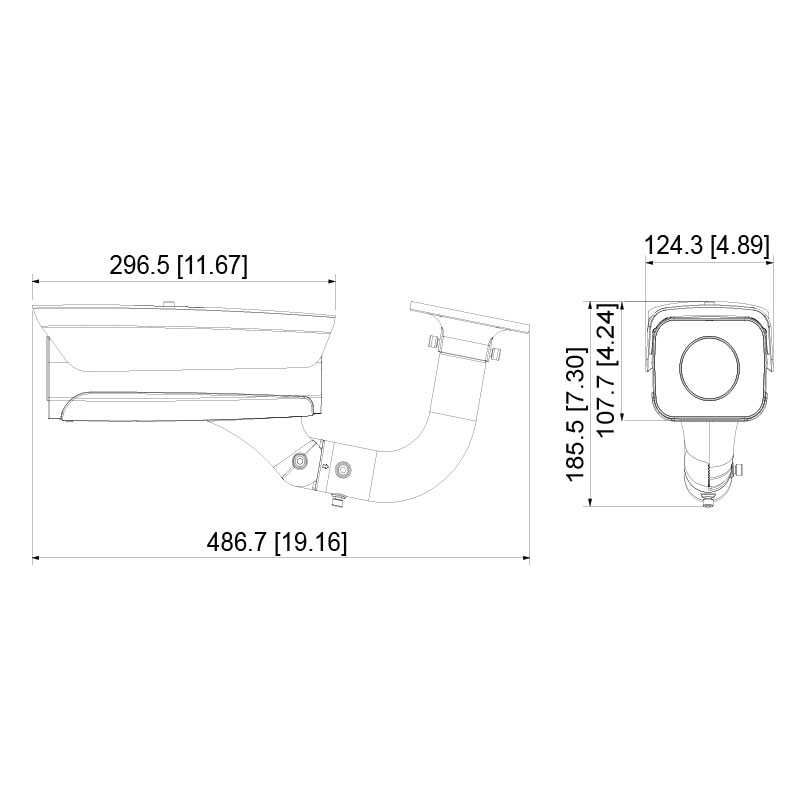

Dimensions
487 x 124 x 186mm (with bracket)
Net Weight
1.9kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
388 mm
Height
321 mm
Depth
208 mm
Weight
4.00 kg
