Professional Series 2.0MP 30x Zoom PTZ Positioning Camera with GPS, 4G & WiFi

Brand logo
SKU VSIPMPTZ-2G
Brand logo

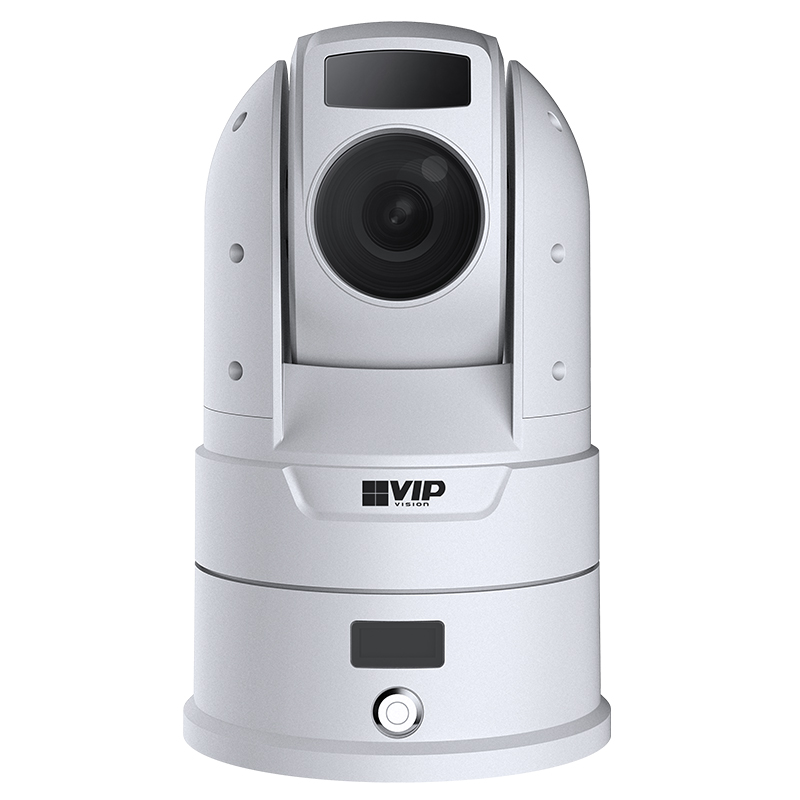

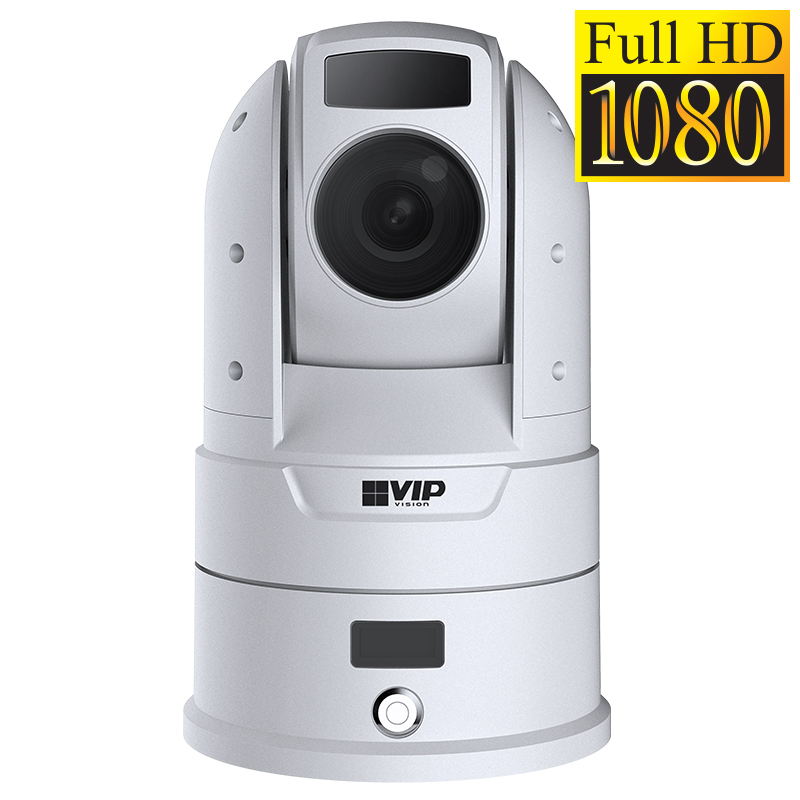

Professional Series 2.0MP 30x Zoom PTZ Positioning Camera with GPS, 4G & WiFi

SKU VSIPMPTZ-2G

Featuring a powerful optical zoom, accurate pan/tilt/zoom performance and flexible network support including 3G/4G and WiFi, the VSIPMPTZ-2G is an all-in-one solution for capturing long distance video surveillance in any setting.

Camera features:
• Stream up to 2.0MP (1920 x 1080) at 50fps
• 30x optical zoom lens (61.2 ~ 2.4° viewing angles)
• Auto tracking, 360° panning, -20° ~ 90° tilt adjustable
• Low light colour performance at 0.004lx; 100m IR
• 3G/4G, WiFi and wired networking options
• Built-in GPS tracking
• Anti-vibration for image stability
• Built-in OLED with status display
• MicroSD slot for recording at the edge up to 256GB
• WDR, 2D/3D DNR; auto white balance; true day/night
• Soft magnetic composite base for flexible mounting
• Power via 24VDC (PSU included)
• IP66 weather resistant metal housing

Links and Downloads

VIP Vision VSIPMPPTZ-2G Datasheet (PDF) 0.64 MB
VIP Vision VSIPMPPTZ-2G Quick Start Guide (PDF) 1.26 MB
VIP Vision VSIPMPPTZ-2G User Manual (PDF) 3.53 MB
Network PTZ Camera Web 3.0 User Manual V2.0.031 10.13 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/1.9" 2.0MP CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
Ultra Low Light Colour
Yes
Min Illumination
0.004 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on)
S/N Ratio
>54dB
Infrared
Yes
Infrared System
4 x Infrared LED, 100m range, Auto/manual on/off control
Anti-Shake DSP
Support
Lens
Lens Type
Motorised Varifocal
Lens / Iris
6 ~ 180mm Motorised Lens
Field of View
Horizontal: 61.2° ~ 2.3° (30x Optical Zoom)
Focus
Auto/ Semiautomatic/ Manual
PTZ
Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: -15 ~ 90° / Auto-flip 180°
PTZ Speed
Preset: Pan: 400°/s; Tilt: 300°/s Manual: Pan: 300°/s; Tilt: 200°/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Auto Tracking
Support
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 50fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / ATW / Indoor / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
2D/3D DNR
Picture Control
Horizontal: 0° ~ 360° Vertical: -20° ~ 90°
IVS
IVS
No
Intelligent Functions
Motion Detection
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
External Interface
14-Core Aviation Connector (1: RJ45 Network Cable, 2: Φ5.5*2.1mm Power Port, 3: GPS Port, 4: RS232), 8-Core Aviation Connector (optional) (1: Alarm Input, 2: Audio Input, 3: 12V Controllable Power (Alarm) Input, 4: RS485)
Audio Interface
1 Input / Compression: PCM, G.711a, G.711u
Alarm Interface
2 Inputs
RS485
Yes
Edge Storage
MicroSD Card (up to 256GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
24VDC (6~36V)
Power Consumption
<20W (IR off: <24W, IR on: <40W , Motor IR on: <56W)
Battery
10.05Ah / 109.45Wh (9 hours from full charge at lowest power consumption)
Operating Conditions
-20° ~ +55° C / Less than 90% RH
Ingress Protection
IP66
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Professional Series
Camera Type
PTZ Positioning
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: 15° ~ 90° ; Rotation: 0° ~ 360°
Tri-Axis Mounting
No
ePoE
No

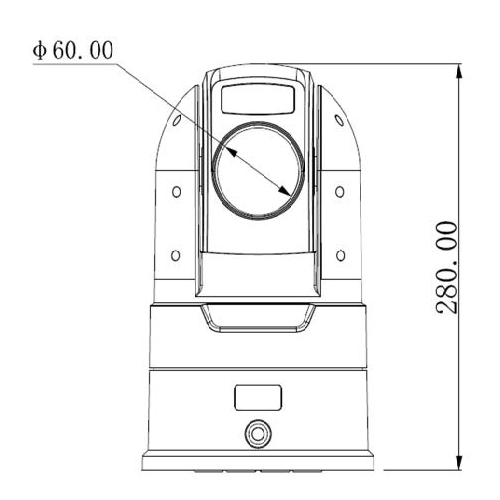

Dimensions
Ø171mm x 280mm
Net Weight
4.87kg
Other
Smart Scene Adaptive (SSA)
Yes
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
175 mm
Height
280 mm
Depth
175 mm
Weight
4.87 kg
