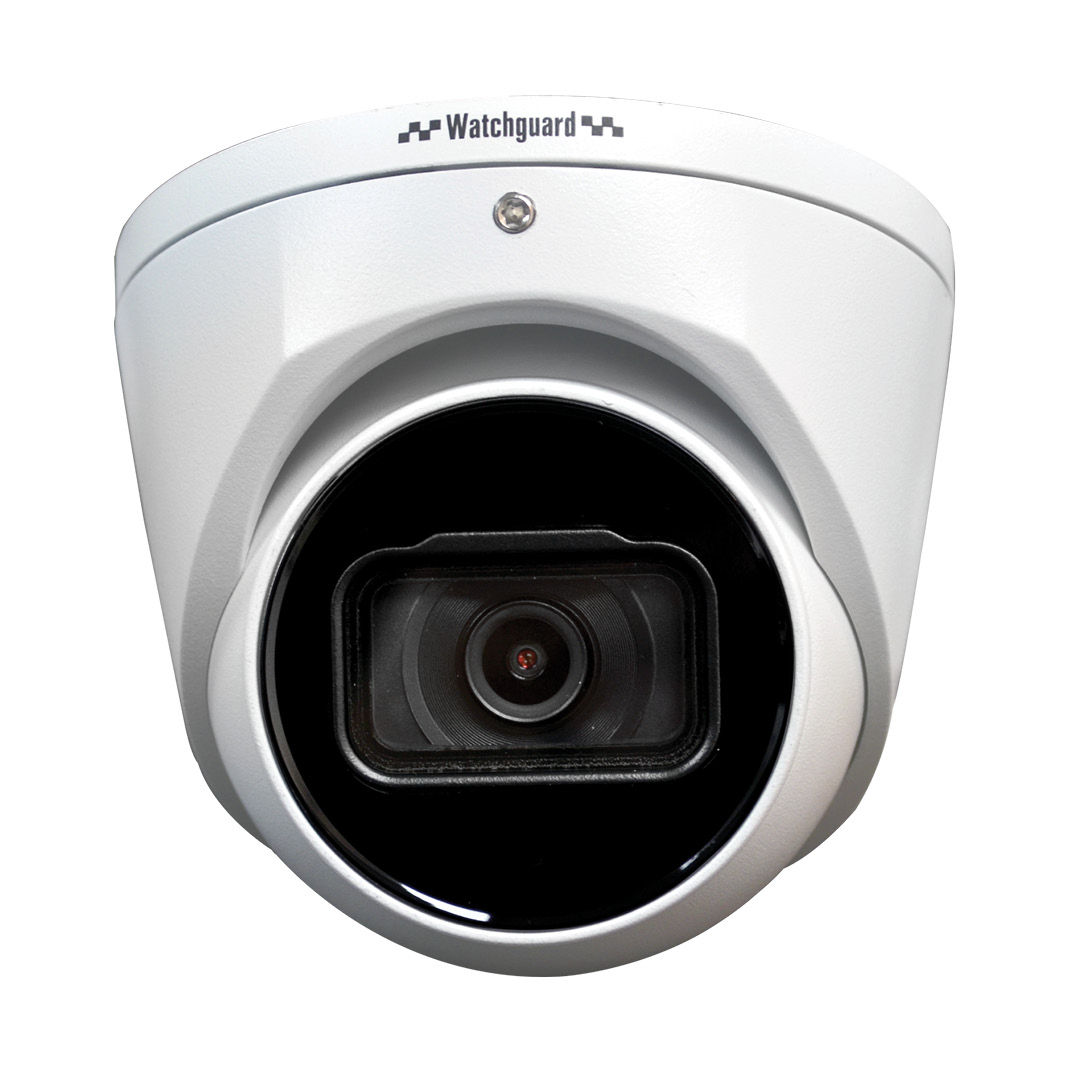

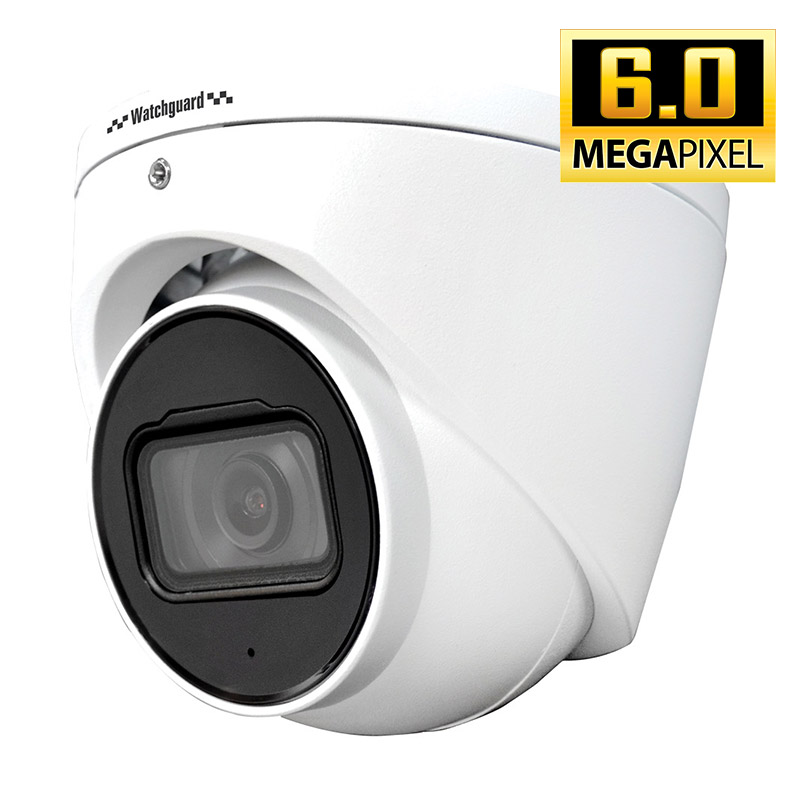

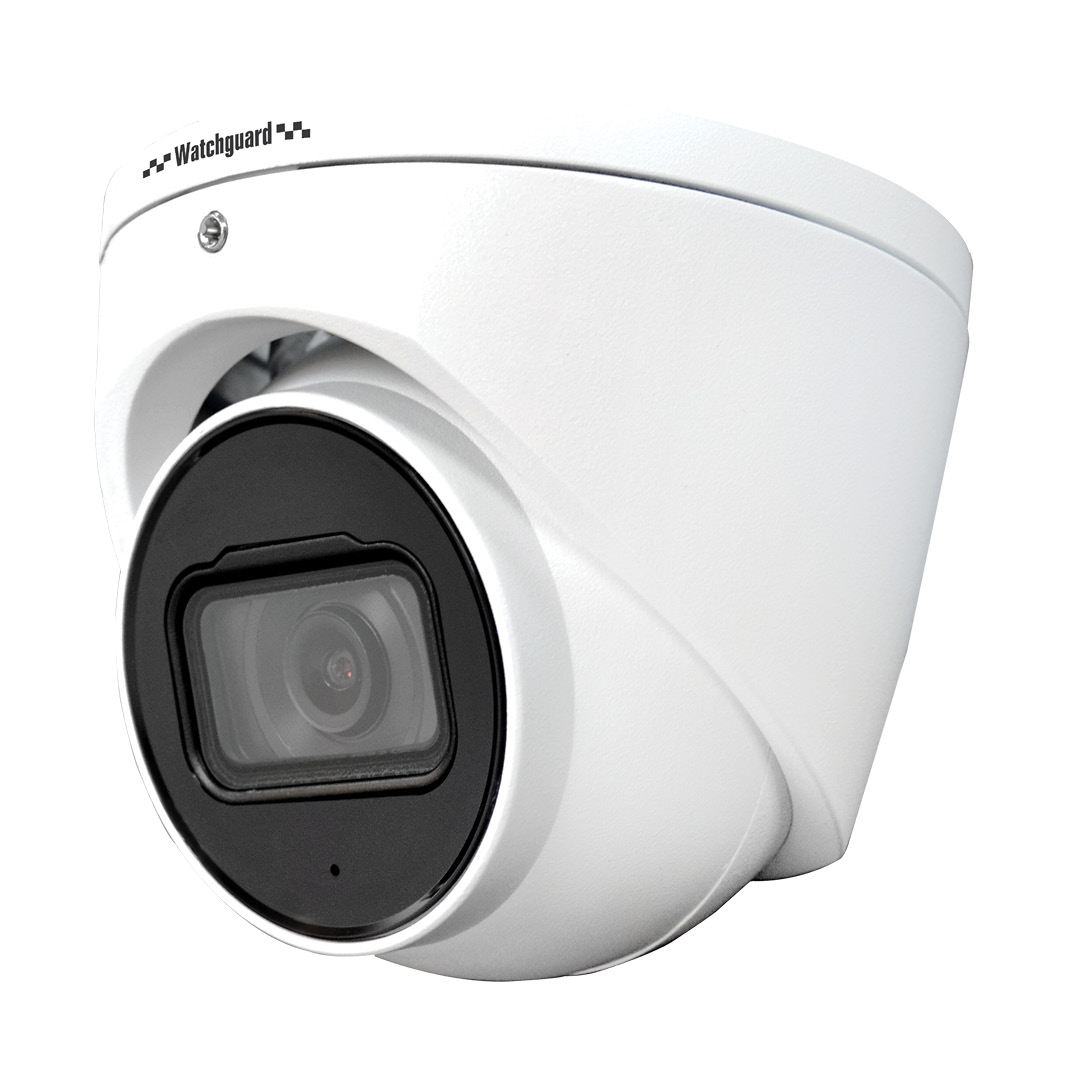

L-Series 6.0MP Fixed Turret Camera

Brand logo
SKU VSIPL-6DIRG
Brand logo

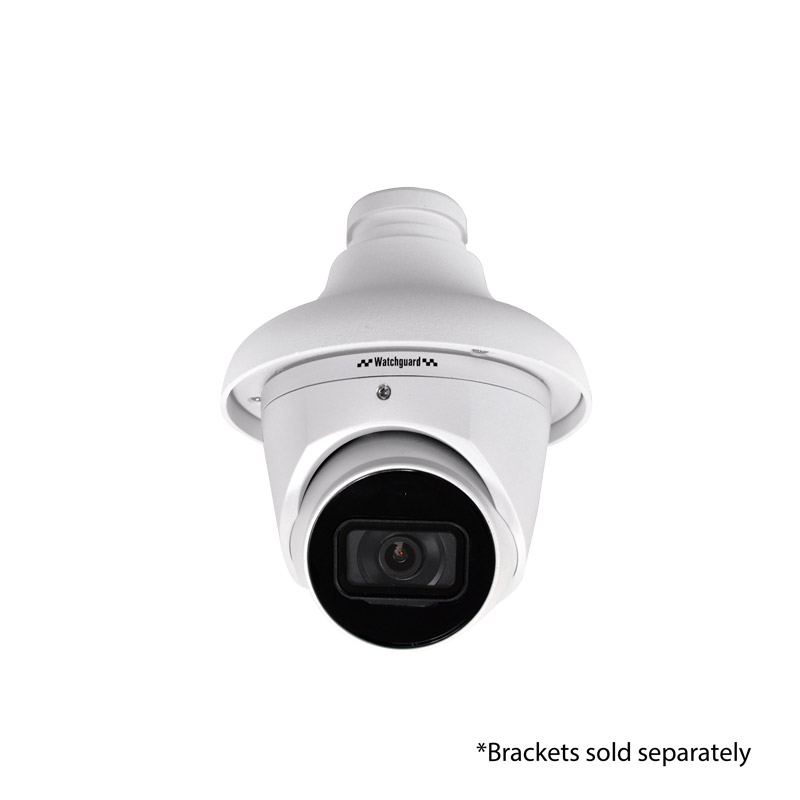

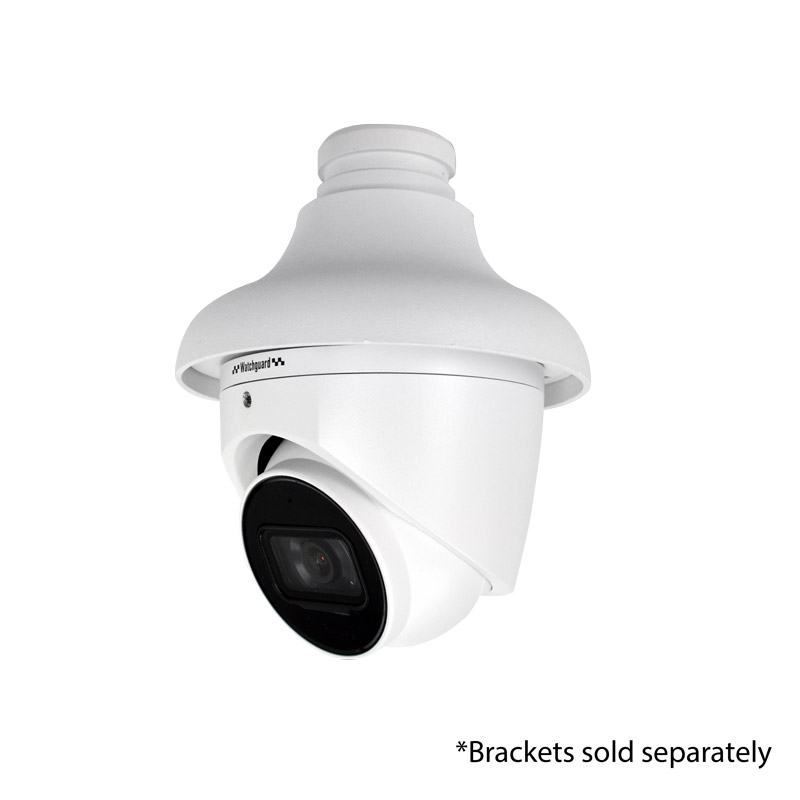

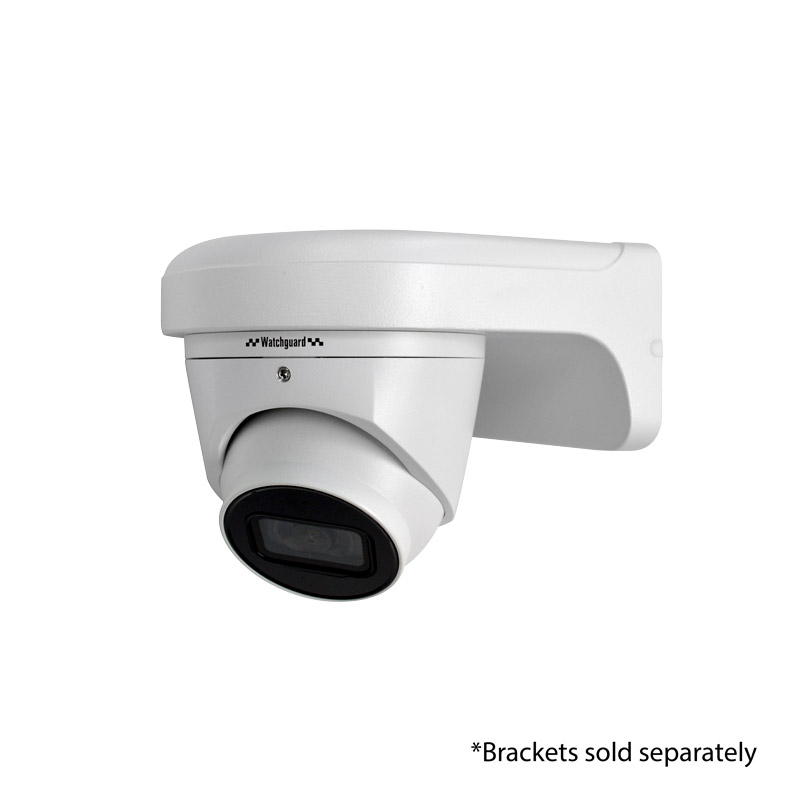

L-Series 6.0MP Fixed Turret Camera

SKU VSIPL-6DIRG

Stock may be limited. Please contact us for availability or for an alternative item.

The VSIPL-6DIRG boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.

Camera features:
• Stream up to 6.0MP (3072 x 2048) at 25fps
• 2.8mm fixed lens with 103°(H) and 71°(V) field of view
• Up to 30m infrared range; true day/night (auto ICR)
• H.265+ encoding for efficient storage & streaming
• 3D digital noise reduction & auto white balance
• IVS functionality including Tripwire and intrusion area & more
• Power via 12VDC or Power over Ethernet (802.3af)
• IP67 weather rating in metal casing

Suggested Products

Suggested product image
L Series 4 Camera 6.0MP IP Surveillance Kit (Fixed, 1TB, 4 Ch)
NVRKIT-L461-4C
Suggested product image
L Series 4 Camera 6.0MP IP Surveillance Kit (Fixed, 2TB, 8 Ch)
NVRKIT-L862-4C
Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA139
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB204W
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

Watchguard L Series VSIPL-6DIRG Brochure (PDF) 0.45 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.7" 6.0MP Progressive Scan CMOS
Max. Resolution
6.0 Megapixel
Effective Pixels
3072 (H) x 2048 (V)
RAM / ROM
256MB / 128MB
Ultra Low Light Colour
No
Min Illumination
0.008 Lux/F1.6 (Color 1/3s-1)
S/N Ratio
> 56dB
Infrared
Yes
Infrared System
2 x Infrared LED, 30m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F1.6 Lens
Field of View
Horizontal: 103°, Vertical: 71°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
56m
Observe (63px/m)
22.4m
Recognise (125px/m)
11m
Identify (250px/m)
6m
Video
Resolution
6.0MP (3072 x 2048) to CIF (352 x 288)
Frame Rate (Main)
6.0MP (1 ~ 25fps) OR 4.0MP (1~25fps)
Frame Rate (Sub)
D1 (1 ~ 25/fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.264: 32kbps ~ 8192kbps / H.265: 12kbps ~ 8192kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
HLC / BLC / WDR (120dB)
Smart Scene Adaptive (SSA)
N/A
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode)
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
RTMP Support
Yes
Interface
Video Interface
N/A
Audio Interface
Built-in mic
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP/ SFTP
Interoperability
ONVIF, CGI, P2P, Milestone, Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<7.2W
Operating Conditions
-40° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
L Series
Camera Type
Turret
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~360 °; Tilt: 0° ~78°; Rotation: 0° ~360°
Tri-Axis Mounting
Yes
ePoE
No

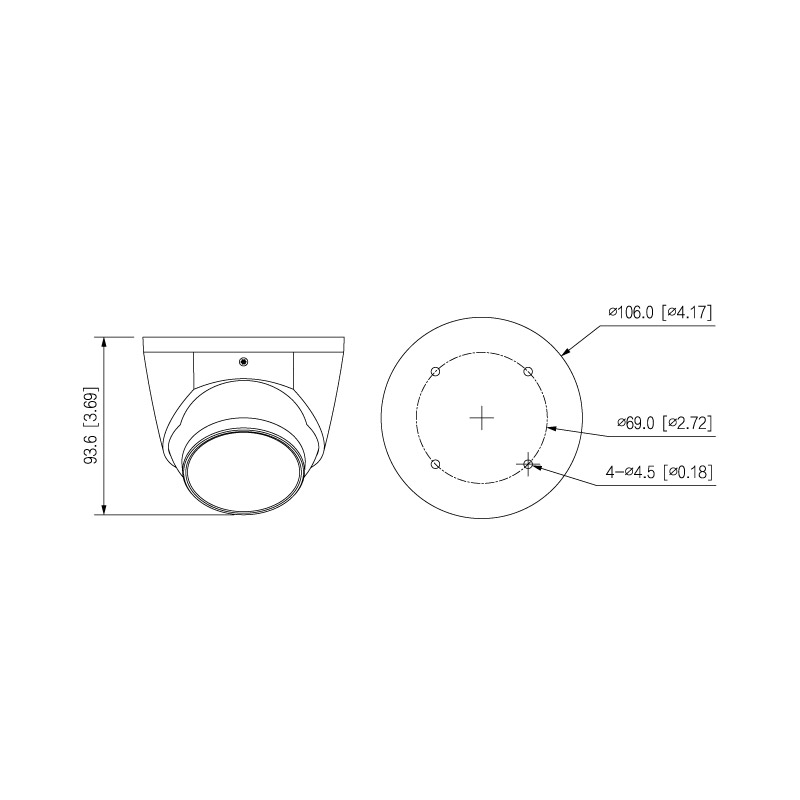

Dimensions
Ø106mm x 93.6mm
Net Weight
0.48kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
160 mm
Height
160 mm
Depth
160 mm
Weight
1.00 kg
