LA-Series 6.0MP Fixed AI Turret Camera

Brand logo
SKU VSIPL-6DIRG-I
Brand logo

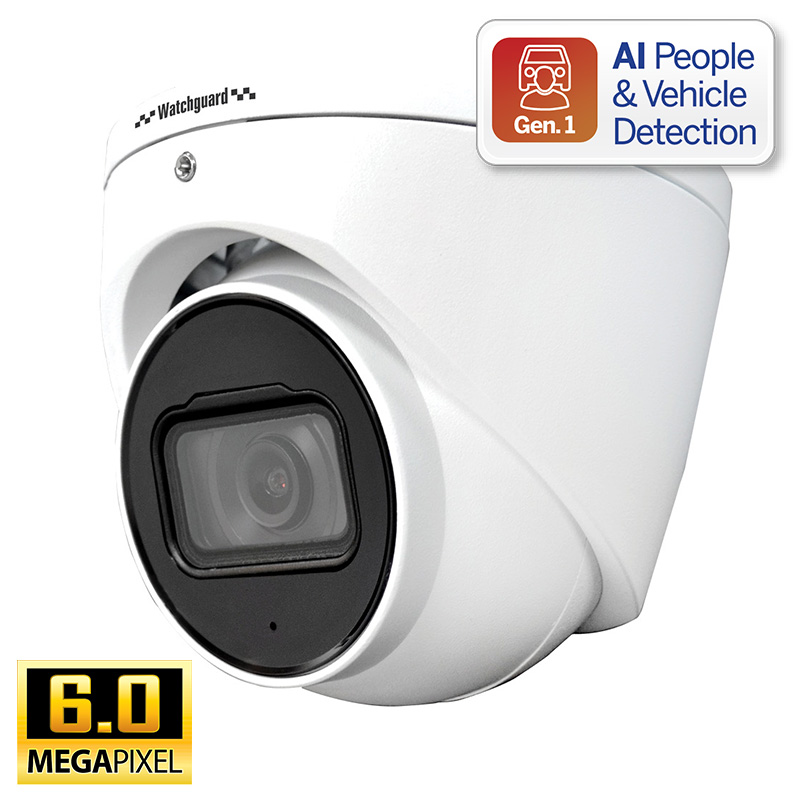

LA-Series 6.0MP Fixed AI Turret Camera

SKU VSIPL-6DIRG-I

The VSIPL-6DIRG-I from Watchguard delivers great performance for amazing value. Available in 6.0MP, this model now features AI human and vehicle detection capabilities (Gen.1) to improve CCTV event notifications and make playback searching a breeze.

Camera features:
• Stream up to 6.0MP (3072 x 2048) at 20fps
• 2.8mm fixed lens with 111° horizontal viewing angle
• Up to 30m infrared range; true day/night (auto ICR)
• H.265 encoding for efficient storage & streaming
• Built-in microphone and microSD slot for edge recording
• AI human/vehicle detection up to 6m/9m (2.8mm lens)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• Power via 12VDC or Power over Ethernet (802.3af)
• IP67 weather rated full-metal housing for outdoor use

Suggested Products

Suggested product image
LA Series 4 Channel 6.0MP AI Surveillance Kit (4CH, 2TB, 4 Cams)
NVRKIT-LA462-4C
Suggested product image
LA Series 8 Channel 6.0MP AI Surveillance Kit (8CH, 2TB, 4 Cams)
NVRKIT-LA862-4C
Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA139
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB204W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

LA Series NVR Kits Product Datasheet (PDF) 0.70 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.7" 6.0MP Progressive Scan CMOS
Max. Resolution
6.0 Megapixel
Effective Pixels
3072 (H) x 2048 (V)
RAM / ROM
256MB / 128MB
Min Illumination
0.007 Lux/F1.6 (Color 1/3s-1)
S/N Ratio
> 56dB
Infrared System
1 x Infrared LED, 30m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F1.6 Lens
Field of View
Horizontal: 111°, Vertical: 58°
Focus
Fixed, 1.1m Close Focus Distance
DORI
Detect (25px/m)
63m
Observe (63px/m)
25m
Recognise (125px/m)
12m
Identify (250px/m)
6m
Video
Resolution
6.0MP (3072 x 2048) to CIF (352 x 288)
Frame Rate (Main)
6.0MP (1 ~ 20fps), 4.0MP (1~25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.264: 32kbps ~ 8192kbps / H.265: 12kbps ~ 8192kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
HLC / BLC / WDR (120dB)
Smart Scene Adaptive (SSA)
N/A
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; G.723; PCM
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP/ SFTP
Interoperability
ONVIF, CGI, P2P, Milestone, Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<7.2W
Operating Conditions
-40° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
LA Series
Camera Type
Turret
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~360 °; Tilt: 0° ~78°; Rotation: 0° ~360°
ePoE
No
Dimensions
Ø106mm x 93.6mm
Net Weight
0.42kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
160 mm
Height
160 mm
Depth
150 mm
Weight
1.00 kg
