Camera
Image Sensor
1/2.5" 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
512MB / 32MB
Ultra Low Light Colour
No
Min Illumination
0.05 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
4 x Infrared LED, 100m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
7 ~ 35mm F1.4 Motorised Varifocal Lens with Auto Iris (HALL)
Field of View
Horizontal: 38°~14°, Vertical: 22°~8° (5x Optical Zoom)
Focus
Auto Focus / 0.6m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
234m (wide) / 765m (tele)
Observe (63px/m)
94m (wide) / 306m (tele)
Recognise (125px/m)
47m (wide) / 153m (tele)
Identify (250px/m)
23m (wide) / 76m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 15fps) / 3.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~25fps)
Video Compression
H.265 / H.264
Bit Rate
H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode)
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Yes
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726
Alarm Interface
2 Input (5mA 5VDC) / 1 Output (300mA 12VDC)
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3af) (Class 0)
Power Consumption
<13W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
IK10
Series
Ultimate Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360 °; Tilt: 0° ~ 90°; Rotation: 0° ~ 360°
Tri-Axis Mounting
Yes
ePoE
Yes

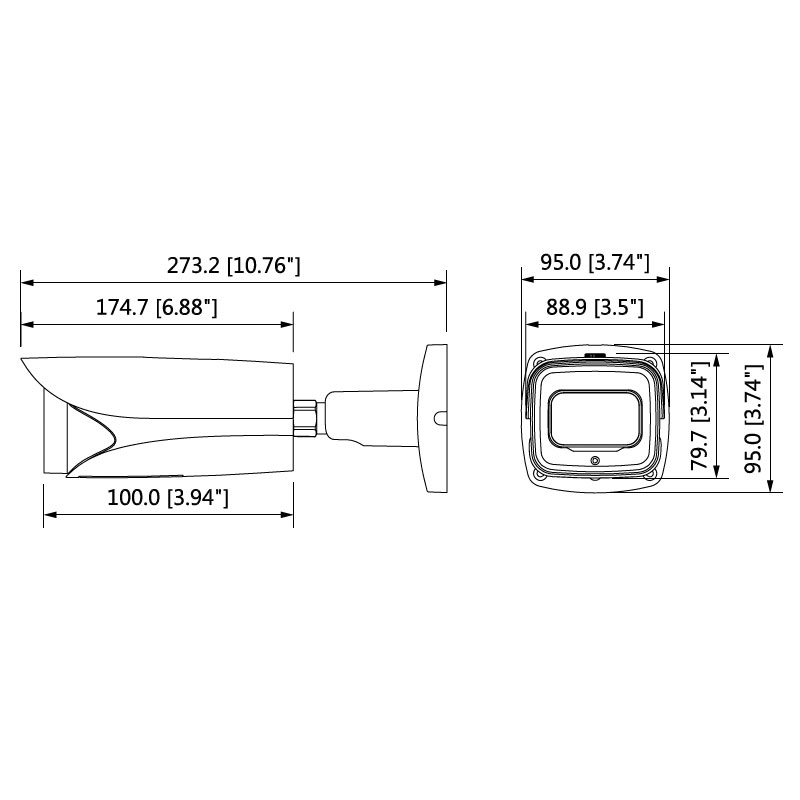

Dimensions
95mm x 95mm x 273mm
Net Weight
1.11kg
Warranty (Years)
4
