Ultimate Series 4.0MP WDR Infrared Motorised Bullet

Brand logo
SKU VSIP4MPFBIRM
Brand logo

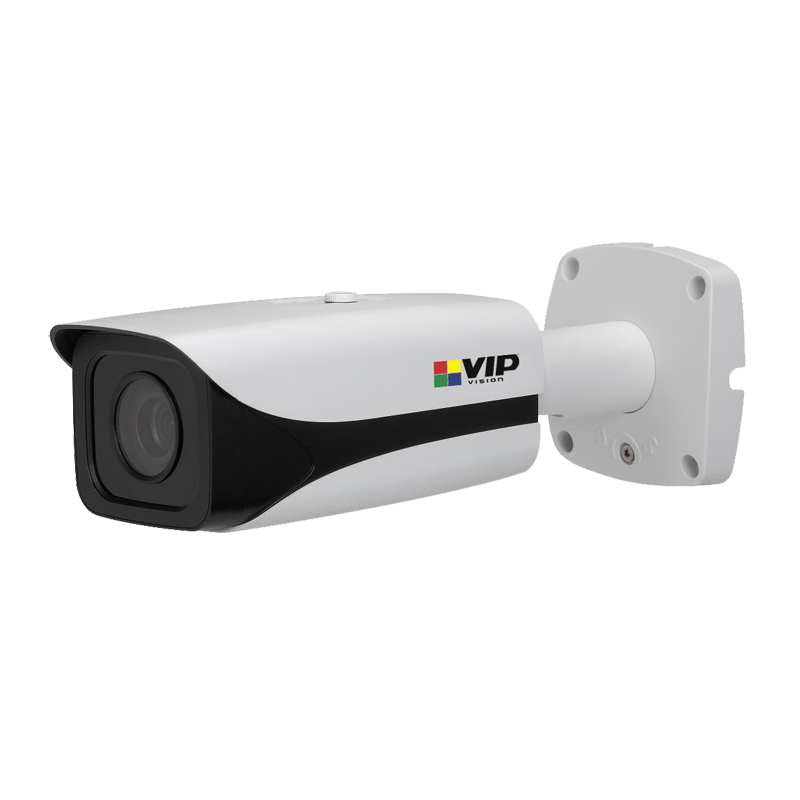

Ultimate Series 4.0MP WDR Infrared Motorised Bullet

SKU VSIP4MPFBIRM

Stock may be limited. Please contact us for availability or for an alternative item.

This multi-talented bullet camera offers superb performance, no matter the lighting conditions, with the features you need to build professional grade surveillance solutions.

Camera features:
• Stream up to 4.0 megapixel (2560 x 1440) at 20fps
• 2.7 ~ 12mm motorised lens with 100 ~ 33° viewing angles
• Day/night (auto ICR) with 50m maximum infrared range
• Wide dynamic range (120db) with back/highlight compensation
• 3D digital noise reduction and auto white balance
• MicroSD card slot for at-the-edge recording, up to 128GB
• Audio and alarm interface input/output; BNC video output
• Supports triple stream and smart detection technologies
• IP67 weather resistant housing for external use
• ONVIF, PSIA and CGI compliance

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA121
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152

Links and Downloads

Ultimate Series Motorised Bullet - Product Brochure (PDF) 0.81 MB
VIP Vision FBIR Ultimate Bullet Quick Install Guide (PDF) 1.00 MB
Product Feature Guide - VIP Vision Corridor Mode (PDF) 1.56 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/3” 4.0 Megapixel Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
Ultra Low Light Colour
No
Min Illumination
0.01 Lux at F1.4 (Colour) / 0 Lux at F1.4 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
50m range
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12mm F1.4 Motorised Lens with Auto Iris (DC)
Field of View
100° (wide) ~ 33° (tele)
Focus
Auto Focus
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
Configurable from 4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1~20fps) / 3.0MP and lower (1~25fps)
Frame Rate (Sub)
D1 and lower (1 ~ 25fps)
Frame Rate (Third)
720p and lower (1~5fps WDR on) / (1~18fps WDR off)
Video Compression
H.264H / H.264B / H.264 / MJPEG
Bit Rate
H.264: 16K ~ 10Mbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
No
Intelligent Functions
Scene Change / Face Detection / Audio Detection / Tripwire / Intrusion / Abandoned or Missing
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Interface
Video Interface
1 channel, BNC (1.0Vp-p, 75 ohm)
Audio Interface
Built-in Microphone / Compression: G.711a / G.711u / AAC
Alarm Interface
2 ch. input / 1 ch. output
RS485
N/A
Edge Storage
MicroSD slot up to 128GB
Interoperability
ONVIF, PSIA, CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
< 11.5W
Operating Conditions
-40° to 60°C / RH95% (max)
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Professional Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
Dimensions
273 x 95 x 95mm
Net Weight
1.1kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
367 mm
Height
177 mm
Depth
179 mm
Weight
1.38 kg
