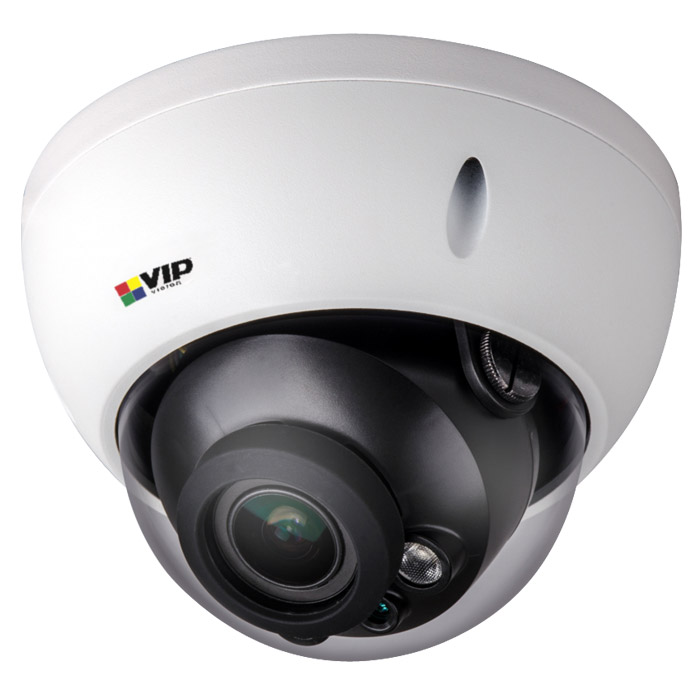

3.0 Megapixel Infrared Motorised Dome

Brand logo
SKU VSIP3MPVDIRM2.8-12
Brand logo

3.0 Megapixel Infrared Motorised Dome

SKU VSIP3MPVDIRM2.8-12

Stock may be limited. Please contact us for availability or for an alternative item.

Megapixel resolution your customers demand, with the convenience of easy installation you desire. Achieve more for less with the VIP Vision motorised varifocal surveillance range.

Camera Features:
• Stream up to 3.0 megapixel (2304 x 1296) at 20fps
• 2.8 ~ 12mm motorised lens with 92 ~ 28° viewing angles
• Day/night (auto ICR) with 30m maximum infrared range
• Backlight/highlight compensation with digital WDR
• 3D digital noise reduction and auto white balance
• MicroSD card slot for at-the-edge recording, up to 128GB
• Power via 12VDC or Power over Ethernet (802.3af)
• IP66 and IK10 rated housing for external use
• ONVIF, PSIA and CGI compliance

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA123
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA137
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152
Suggested product image
Recessed Ceiling Mount Bracket
VSBKTB200C
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W

Links and Downloads

VSIP3MPVDIRM2.8-12 Product Brochure (PDF) 0.25 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
N/A
Angle of View
92° (wide) ~ 28° (tele)
Audio Compression
N/A
Audio Input
N/A
Backlight Compensation
BLC / HLC / DWDR
Bit Rate
H.264: 56K ~ 6144Kbps
Camera Style
Weather/Vandal Resistant Dome
Camera Type
Dome
Day/Night
Auto (ICR) / Colour / B&W

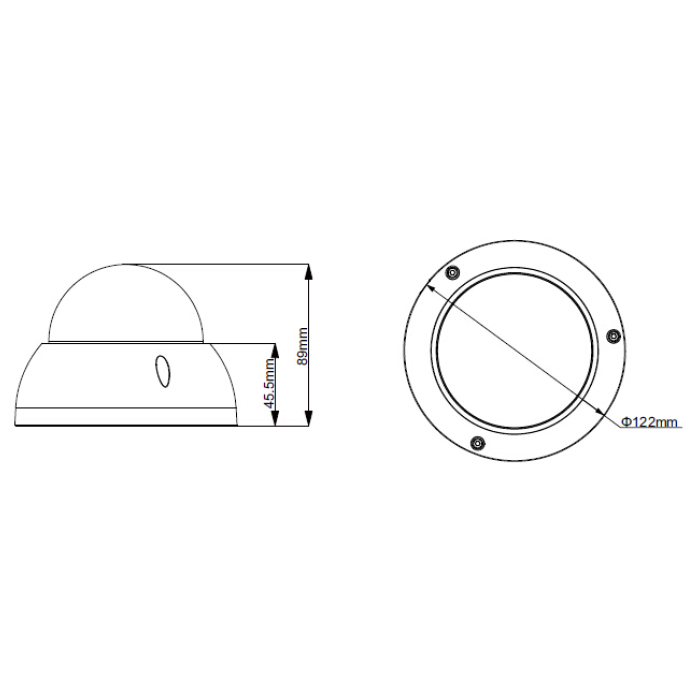

Dimensions
Ø122 x 89mm
Effective Pixels
2304 (H) x 1296 (V)
Electronic Shutter
Auto / Manual (1/3 ~ 1/10000s)
Frame Rate - Main
3.0MP (1 ~ 20fps) / 1080p and lower (1 ~ 25fps)
Frame Rate - Sub
D1 and lower (1 ~ 25fps)
Frame Rate - Third
N/A
Gain Control
Auto / Manual
Image Sensor
1/3” 3.0 Megapixel Progressive Scan Aptina CMOS
Ingress Protection
IP67
Lens
2.8 ~ 12mm F1.4 Motorised Lens with Fixed Iris
Lens Type
Motorised Varifocal
Max. Resolution
3.0 Megapixel
Maximum Infrared Range
30m
Memory Slot
MicroSD slot up to 128GB
Minimum Illumination
0.01 Lux at F1.4 (Colour) / 0 Lux at F1.4 (IR on)
Network Interface
RJ45 (10/100 Base-T)
Noise Reduction
3D Digital Noise Reduction
ONVIF Conformance
ONVIF, PSIA, CGI Compliant
Operating Environment
-30° to 60°C / RH95% (max)
Power Consumption
< 8.5W
Power Input
12VDC / PoE (802.3af)
Signal Noise Ratio
> 50dB
Smart Functions
N/A
Tri-Axis Mounting
Yes
Vandal Resistant
IK10
Video Compression
H.264 / H.264B / H.264H / MJPEG
Video Output
N/A
Video Resolution
Configurable from 3.0MP (2304 x 1296) to CIF (352 x 288)
Weight
0.50kg
White Balance
Auto / Manual
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
155 mm
Height
135 mm
Depth
155 mm
Weight
0.80 kg
