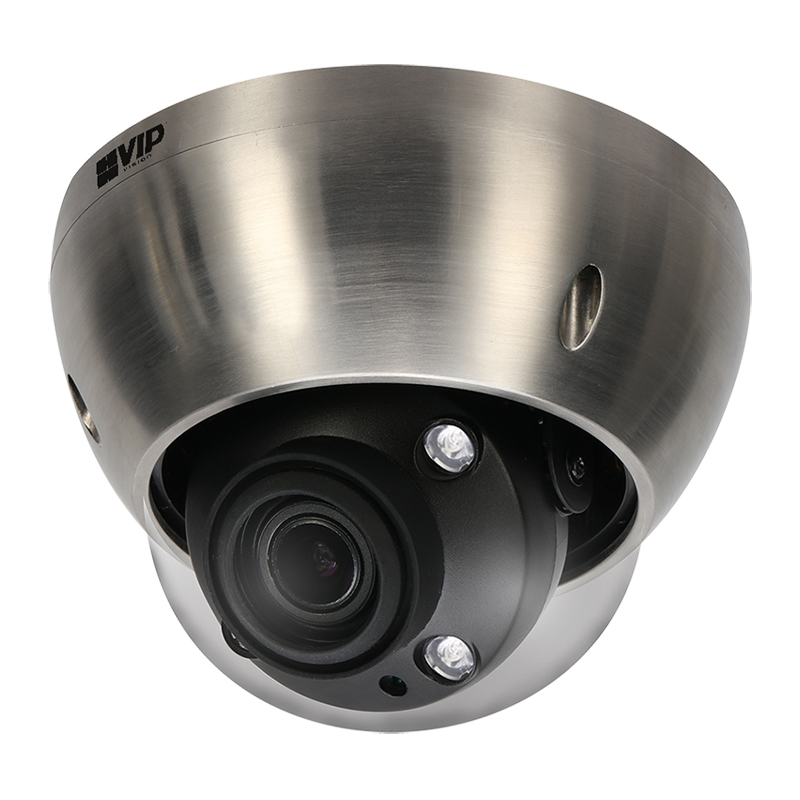

VSIP2MPVDIRSS: Marine Series 2.0MP Motorised Stainless Steel Dome

Specifications

Camera

Image Sensor

1/1.9’’ 2.0MP Progressive Scan CMOS

Max. Resolution

2.0 Megapixel

Effective Pixels

1920 (H) x 1080 (V)

RAM / ROM

1024MB / 128MB

Ultra Low Light Colour

Yes

Min Illumination

0.002 Lux/F1.53 (Color), 0 Lux/F1.53 (IR on)

S/N Ratio

> 50dB

Infrared

Yes

Infrared System

3 x Infrared LED, 50m range, Auto/manual on/off control

Lens

Lens Type

Motorised Varifocal

Lens / Iris

4.1 ~ 16.4mm F1.53 Motorised Varifocal Lens with Auto Iris

Field of View

Horizontal: 92°~32°, Vertical: 53°~18° (4x Optical Zoom)

Focus

Auto Focus / 1m Min. Focus Distance

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

Observe (63px/m)

Recognise (125px/m)

Identify (250px/m)

Video

Resolution

1080p (1920 x 1080) to CIF (352 x 288)

Frame Rate (Main)

1080p (1 ~ 50fps)

Frame Rate (Sub)

D1 (1 ~ 50fps)

Frame Rate (Third)

1080p (1 ~ 50fps)

Video Compression

H.265 / H.264

Bit Rate

H.265: 14 ~ 6144Kbps / H.264: 24 ~ 8192Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / WDR (120dB) / SSA

Smart Scene Adaptive (SSA)

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Yes

Intelligent Functions

Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Electronic Image Stabilisation, Defog

Network

Ethernet

RJ-45 (10/1000 Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

RTMP Support

N/A

Interface

Video Interface

Video Tester Composite Output

Audio Interface

1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726

Alarm Interface

1 Input / 1 Output

RS485

N/A

Edge Storage

MicroSD Card (up to 128GB) / NAS / Local PC

Interoperability

ONVIF / PSIA / CGI

Environmental

Power Supply

12VDC / PoE+ (802.3at) (Class 4)

Power Consumption

<18W

Operating Conditions

-40° ~ +60° C / Less than 95% RH

Ingress Protection

NEMA 4X

Weather Resistance

Yes

Vandal Resistance

IK10

Series

Marine Series

Camera Type

Dome

Housing

Stainless steel

Pan/Tilt/Rotation

Pan: 0° ~ 355°; Tilt: 0° ~ 65° ; Rotation: 0° ~ 355°

Tri-Axis Mounting

Yes

ePoE

N/A

Dimensions

Ø159mm x 118mm

Net Weight

3kg

Other

NEMA Enclosure Type

NEMA 4X

Warranty (Years)
