Camera
Image Sensor
1/1.9" 2.0MP Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
1024MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
0.001 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
S/N Ratio
> 55dB
Infrared
Yes
Infrared System
10 x Infrared LED, 450m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
5.7 ~ 275mm F1.4 ~ F4.5 Motorised Lens with Auto Iris
Field of View
Horizontal: 64.5° ~ 1.5° (48x Optical Zoom)
Focus
Auto/Manual / 1.5m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
2731m
Observe (63px/m)
1092m
Recognise (125px/m)
546m
Identify (250px/m)
273m
PTZ
Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: -30 ~ 90° / Auto-flip 180°
PTZ Speed
Preset: Pan: 240°/s; Tilt: 200°/s Manual: Pan: 200°/s; Tilt: 120°/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Auto Tracking
Support
Video
Resolution
1080p (1920 x 1080) to CIF(352 x 288)
Frame Rate (Main)
1080p (1 ~ 50fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264B / H.264H / MJPEG (sub stream)
Bit Rate
H.265/H.264: 448K ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / ATW / Indoor / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra 2D/3D DNR
Picture Control
Flip 180°
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Abandoned/Missing Object, Face Detection, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog
Network
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
RTMP Support
No
Interface
Video Interface
1 Output (Vpp 75Ω)
Audio Interface
1 Input, 1 Output / Compression: G.711a/G.711Mu/AAC/G.722 / G.726/MPEG2-L2
Alarm Interface
7 Inputs / 2 Outputs
RS485
Yes
Edge Storage
MicroSD Card (up to 256GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
24VAC / 5A (±25%) / Hi-PoE (IEEE802.3at)
Power Consumption
<24W
Operating Conditions
-40° ~ +70° C / Less than 90% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Ultimate Series
Camera Type
PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: -30° ~ 90° ; Rotation: 0° ~ 360°
Tri-Axis Mounting
Yes
ePoE
No

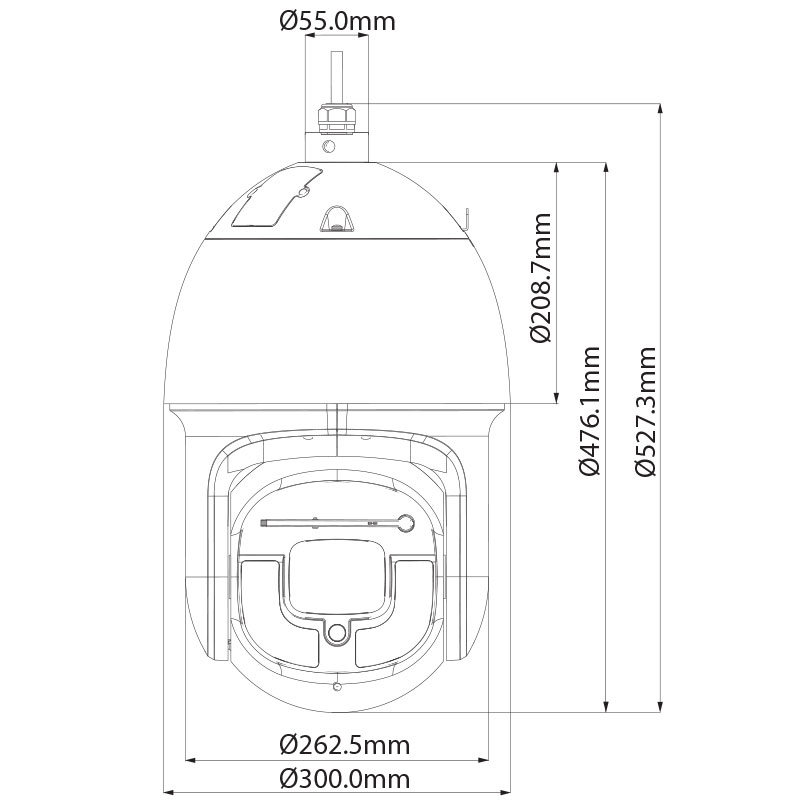

Dimensions
Ø300mm x 527mm
Net Weight
13kg
Other
Smart Scene Adaptive (SSA)
Yes
Warranty (Years)
4
