Traffic Series 2.0MP Motorised Number Plate Enhancement Bullet (+ANPR)

Brand logo
SKU VSIP2MPFBIRMTN
Brand logo

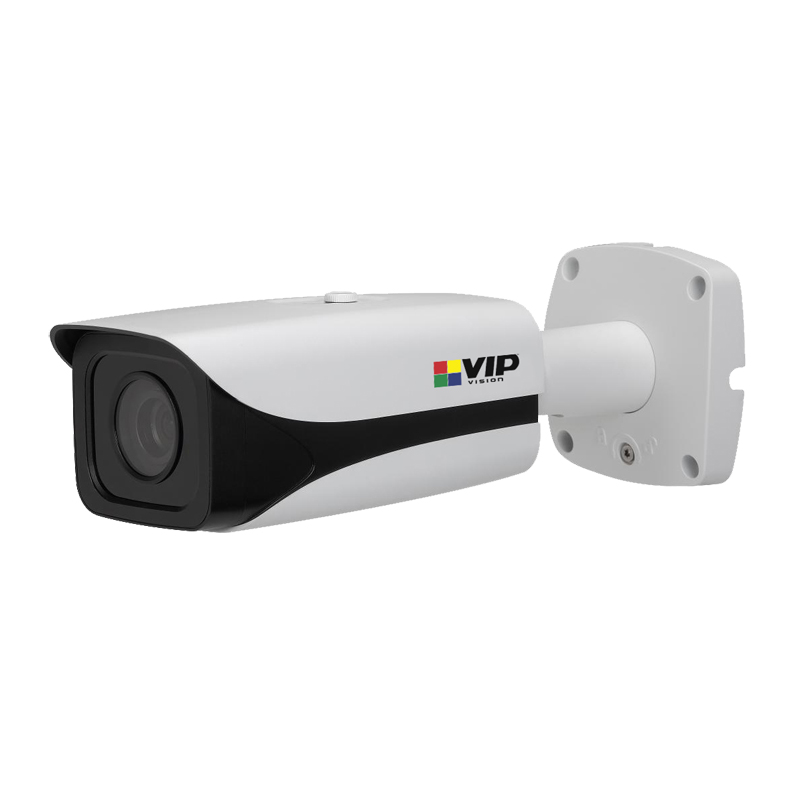

Traffic Series 2.0MP Motorised Number Plate Enhancement Bullet (+ANPR)

SKU VSIP2MPFBIRMTN

Stock may be limited. Please contact us for availability or for an alternative item.

Specially designed for number plate enhancement, the VSIP2MPFBIRMTN is designed to obtain video evidence with vehicle identification in all environments, including in scenes with challenging lighting conditions.

Features specialised intelligent functions for vehicle recording & control, including Automatic Number Plate Recognition (ANPR), snapshot, OSD, white listing and barrier control (requires VIP Vision PRO/ULT Series NVR).

Camera features:
• Stream Full HD 1080p (1920 x 1080) at 25fps
• 2.7~12mm motorised lens (101 ~ 36°, DC lens)
• Edge enhancement for number plate detail & legibility
• Highlight compensation to mask headlight glare
• Supports shutter speed windowing; set min/max speed
• Motorised infrared cut filter for true day/night
• MicroSD slot for recording at the edge up to 128GB
• IP67/IK10 weather & vandal resistant metal housing
• Automatic number-plate recognition (ANPR) with configurable OSD including number plate

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA121
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E

Links and Downloads

VIP Vision BIRMT Traffic Bullet Datasheet (PDF) 0.43 MB
Product Feature Guide - VIP Vision Corridor Mode (PDF) 1.56 MB
VSIP2MPFBIRMTN User Manual 2.67 MB
VIP Vision BIRMT Traffic Bullet Compatibility Guide (PDF) 0.51 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.8’’ 2.0MP Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
1024MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
0.005 Lux/F1.6 (Color), 0 Lux/F1.53 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
4 x Infrared LED, 10m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12mm F1.6 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 101°~36°, Vertical: 53°~20° (4x Optical Zoom)
Focus
Auto Focus / 3m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264
Bit Rate
32 ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS
Yes
Intelligent Functions
Number Plate Edge Enhancement, Number Plate Recognition, Loop/Video Detection, Snapshot, OSD (Time, Location, Number Plate, Lane No.), White List (up to 1000), Barrier Control (1ch Relay Out)
Network
Ethernet
RJ-45 (100/1000 Base-T)
Protocol
IPv4v6; HTTP; TCP/IP; UDP; NTP; DHCP; DNS
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input / 1 Output
Alarm Interface
2 Input / 1 Output
RS485
N/A
Edge Storage
MicroSD Card Slot (up to 64GB) / NAS / Local PC
Interoperability
ONVIF / SDK / CGI
Environmental
Power Supply
12VDC / PoE+ (802.3af) (Class 4)
Power Consumption
<12W
Operating Conditions
-40° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
IK10
Series
Traffic Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: 0° ~ 90° ; Rotation: 0° ~ 360°
Tri-Axis Mounting
No
ePoE
No
Dimensions
Ø273mm x 95mm x 96mm
Net Weight
1.12kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
340 mm
Height
168 mm
Depth
168 mm
Weight
1.70 kg
