Camera
Image Sensor
1/1.9’’ 2.0MP Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
1024MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
0.002 Lux/F1.53 (Color), 0 Lux/F1.53 (IR on)
S/N Ratio
> 50dB
Infrared
50m
Infrared System
4 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4.1 ~ 16.4mm
Field of View
Horizontal: 104°~33°, Vertical: 57°~18° (4x Optical Zoom)
Focus
Auto Focus / 0.5m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
57m (wide) / 137m (tele)
Observe (63px/m)
23m (wide) / 55m (tele)
Recognise (125px/m)
11m (wide) / 27m (tele)
Identify (250px/m)
6m (wide) / 14m (tele)
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 50fps)
Frame Rate (Sub)
D1 (1 ~ 50fps)
Frame Rate (Third)
1080p (1~50fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
H.265: 14 ~ 6144Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Electronic Image Stabilisation, Defog, People Counting, Heat Map
Network
Ethernet
RJ-45 (10/1000 Base-T)
Protocol
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; SNMP; TLS
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
Video Tester Composite Output
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726
Alarm Interface
2 Input / 1 Output
RS485
N/A
Edge Storage
MicroSD Card Slot (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE+ (802.3at) (Class 4)
Power Consumption
<13W
Operating Conditions
-40° ~ +60° C / Less than 95% RH
Ingress Protection
Yes
Weather Resistance
IP67
Vandal Resistance
IK10
Series
Ultimate Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: 0° ~ 90° ; Rotation: 0° ~ 360°
Tri-Axis Mounting
No
ePoE
Yes
Dimensions

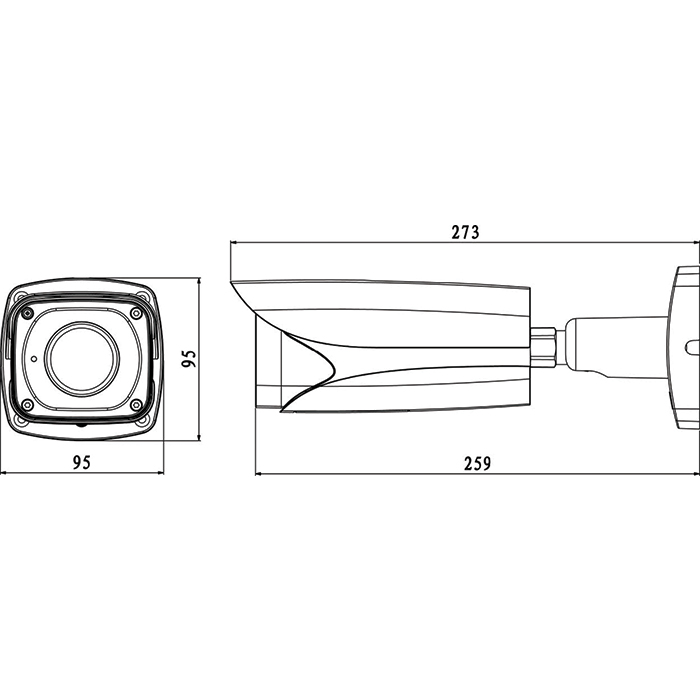

273mm x 95mm x 96mm
Net Weight
1.12kg
Other
Category
Network Surveillance
Warranty (Years)
4
