Camera
Image Sensor
1/1.7’’ 12.0MP Progressive Scan CMOS
Max. Resolution
12.0 Megapixel
Effective Pixels
4000 (H) x 3000 (V)
RAM / ROM
1024MB / 128MB
Ultra Low Light Colour
No
Min Illumination
0.02 Lux/F1.53 (Color), 0 Lux/F1.53 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
4 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4.1 ~ 16.4mm F1.53 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 85°~35°, Vertical: 63°~26° (4x Optical Zoom)
Focus
Auto Focus / 0.5m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
115m (wide) / 227m (tele)
Observe (63px/m)
46m (wide) / 111m (tele)
Recognise (125px/m)
23m (wide) / 55m (tele)
Identify (250px/m)
11m (wide) / 28m (tele)
Video
Resolution
12.0MP (4000 x 3000) to CIF (352 x 288)
Frame Rate (Main)
12.0MP (1 ~ 20fps) / 8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1~25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
H.265: 14 ~ 9984Kbps / H.264: 24 ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / Digital WDR / SSA
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode)
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Electronic Image Stabilisation, Defog, People Counting, Heat Map, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet
RJ-45 (10/1000 Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
Video Tester Composite Output
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726
Alarm Interface
2 Input / 1 Output
RS485
N/A
Edge Storage
MicroSD Card Slot (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE+ (802.3at) (Class 4)
Power Consumption
<13W
Operating Conditions
-40° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Ultimate Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: 0° ~ 90° ; Rotation: 0° ~ 360°
Tri-Axis Mounting
No
ePoE
No

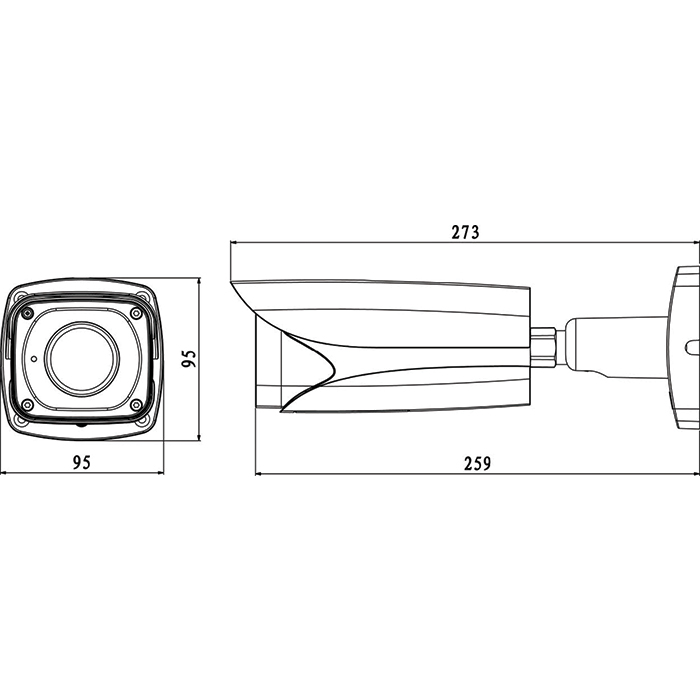

Dimensions
Ø273mm x 95mm x 96mm
Net Weight
1.12kg
Warranty (Years)
4
