24 Port Unmanaged Gigabit Ethernet Switch

Brand logo
SKU VSETH-SW24G2
Brand logo

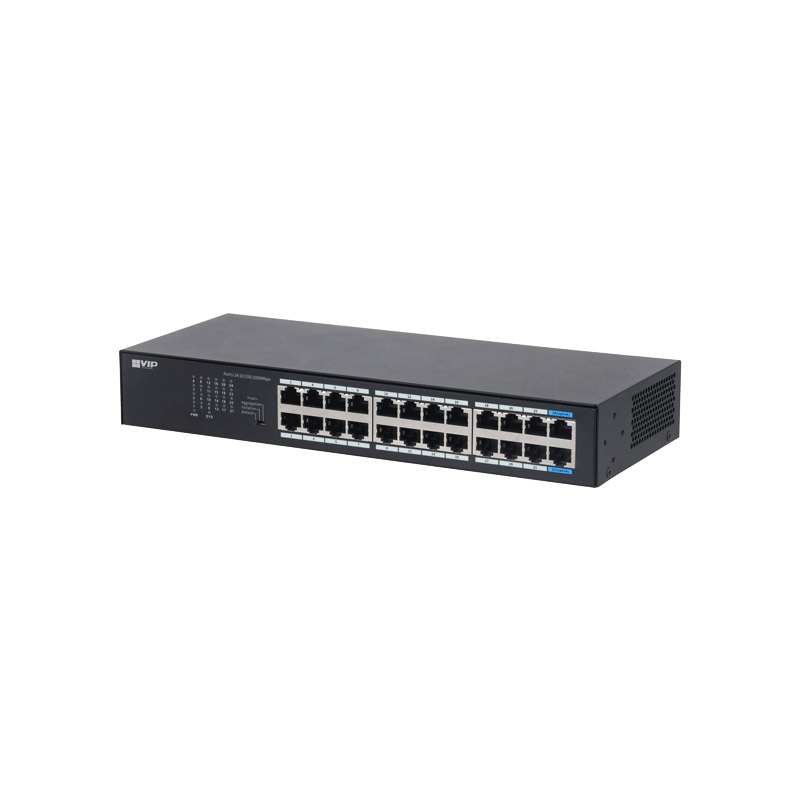

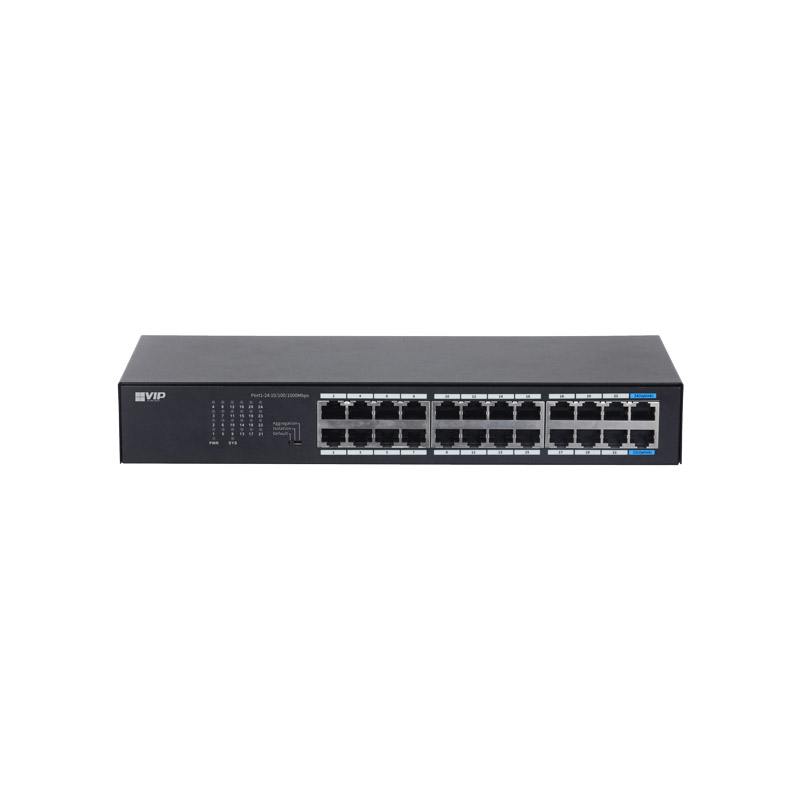

24 Port Unmanaged Gigabit Ethernet Switch

SKU VSETH-SW24G2

This product is Coming Soon. Please contact us for more information.

VSETH-SW24G2 is a 24-port Gigabit Ethernet switch that offers high-speed data transmission and reliability for home and SOHO applications.

• 24 x 10/100/1000Mbps Base-T Ethernet ports
• Unmanaged switch for affordability & ease of use
• LED indicators for displaying information
• Unmanaged switch for affordability & ease of use
• Professional appearance full metal enclosure
• Rackmount cabinet & desktop installation option
• Overvoltage protection up to 2kV
• 240VAC input power

Links and Downloads

VIP Vision VSETH-SW Series Datasheet (PDF) 0.58 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
24 ports
Speed
Gigabit 10/100/1000
Device Ports
24 x 10/100/1000 Base-T
Uplink Ports
N/A
Switching Capacity
40Gbps
Packet Forwarding Rate
35.71Mpps
Exchange Mode
Store & foward
Power over Ethernet
PoE
No
PoE Protocol
N/A
Switch Power Load
N/A
Management
Switch Management
Unmanaged
MAC Address Capacity
16K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
N/A
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental
Input Power
100-240VAC
Lightning Protection
Common Mode: 2KV /Air Discharge: 8KV / Contact Discharge: 6KV / Differential Mode: 0.5V

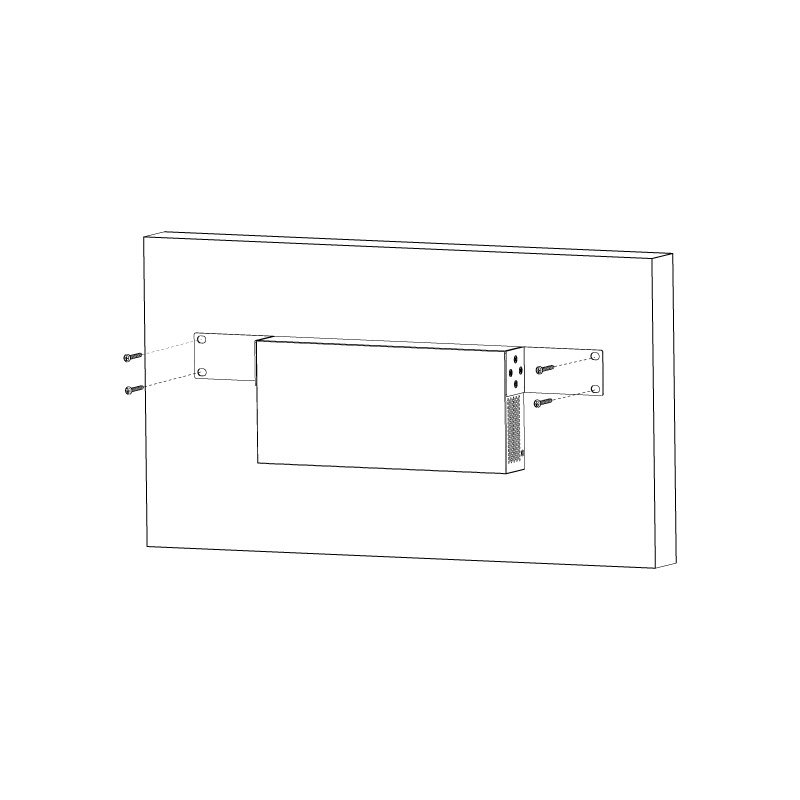

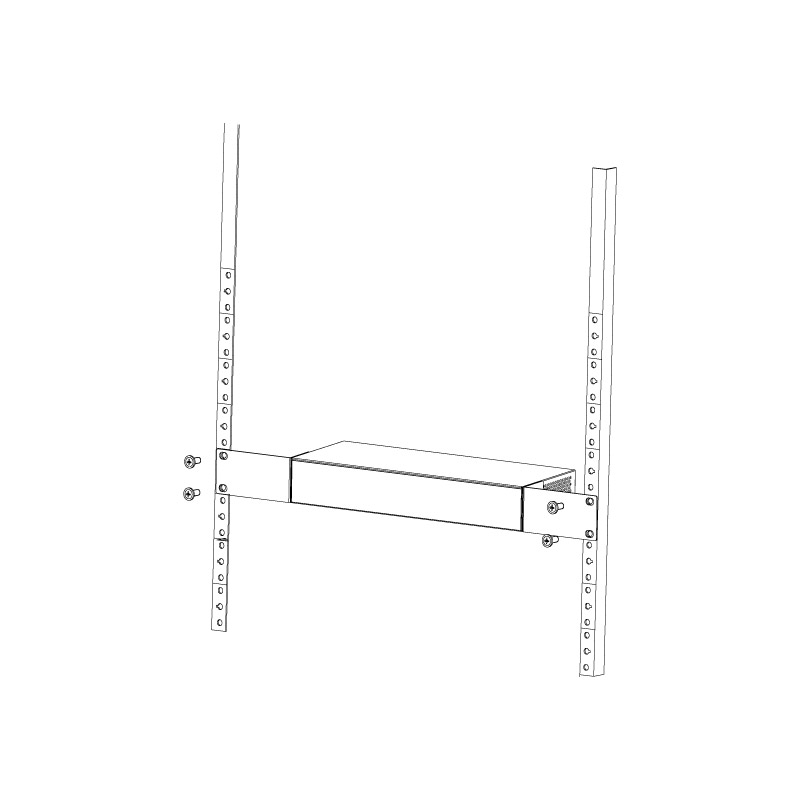

Mounting Options
Rackmount Tabs / Desktop Mount
Operating Environment
10° ~ +55°C
Weight
0.83kg

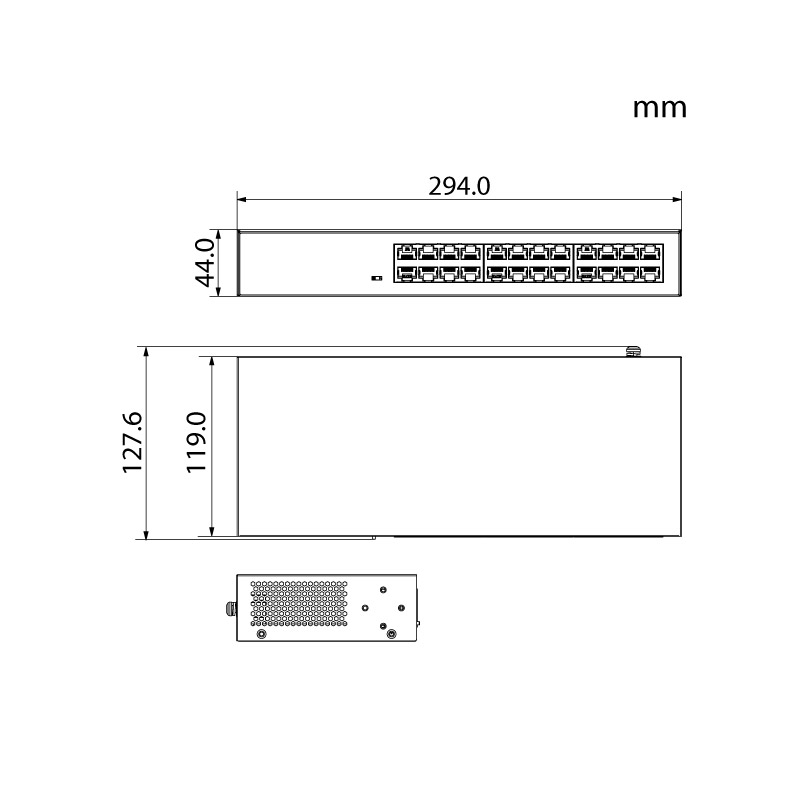

Dimensions
294mm x 119mm x 44mm
Other
Jumbo Frame
12K Byte
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
80 mm
Height
80 mm
Depth
130 mm
Weight
0.20 kg
