Ethernet over Coax Converter Pair

Brand logo
SKU VSEOCPAIRV2
Brand logo

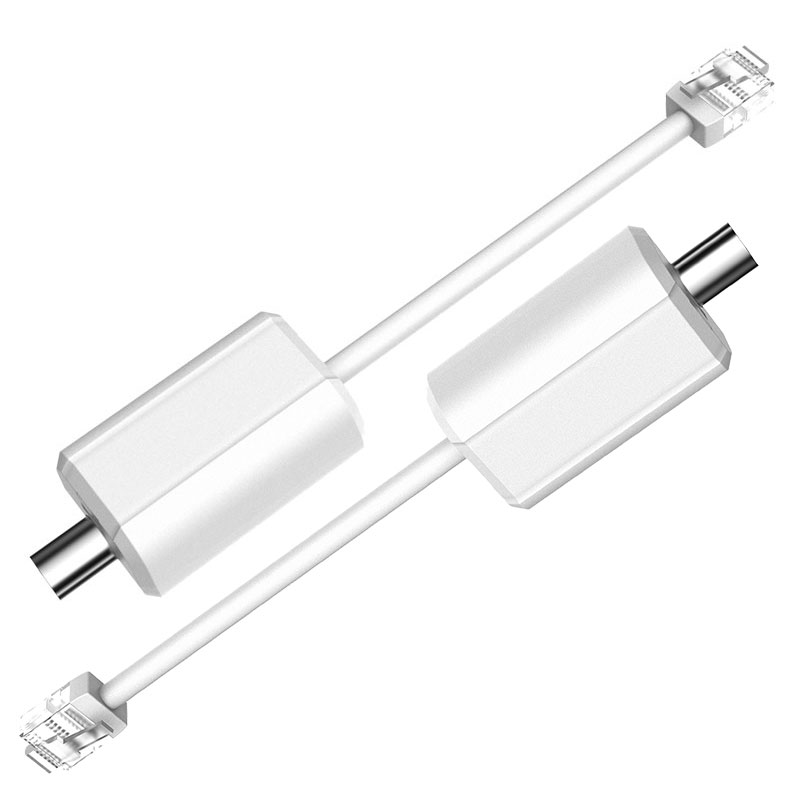

Ethernet over Coax Converter Pair

SKU VSEOCPAIRV2

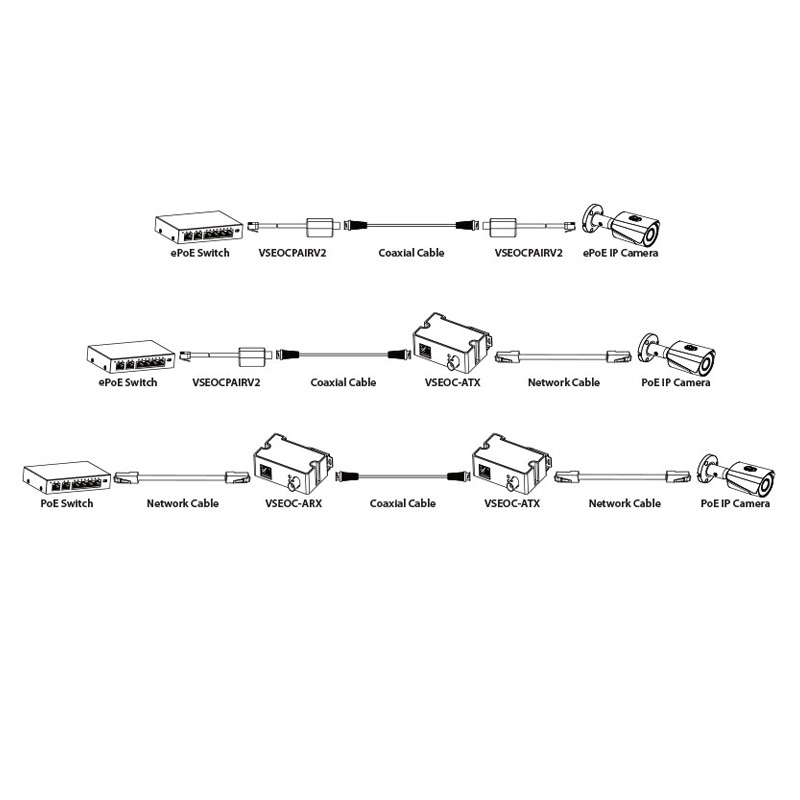

Convert RJ45 network connections to and from coaxial cable with the VSEOCPAIRV2. With these converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.

Product features:
• 1 x RJ45 10/100Mbps port, 1 x BNC port
• Supports IEEE802.3 & IEEE802.3u standards
• Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
• Supports MDI/MDIX self-adaption
• Supports long range power supply transmission via coaxial cable
• Two converters included

*Only compatible with ePOE Switch/NVR and ePOE camera.

Suggested Products

Suggested product image
Ethernet over Coax Receiver
VSEOC-ARX
Suggested product image
Ethernet over Coax Transmitter
VSEOC-ATX

Links and Downloads

Securview HDCVI Accessories Brochure (PDF) 1.09 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Dimensions
56mm x 27mm x 21mm
Network Protocol
IEEE802.3, IEEE802.3u
Operating Environment
-40°C-60°C / <95% RH
PoE Protocol
Based on the power input from the ePoE switch
Ports
1 x 10/100 Mbps Base-TX, 1 x BNC
Power Consumption
<1W
Surge Protection
Common Mode: 6KV / Differential Mode: 2KV
Transmission Bandwidth
RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
Weight
28g
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
130 mm
Height
72 mm
Depth
80 mm
Weight
0.10 kg
