Ethernet over Coax Transmitter

Brand logo
SKU VSEOC-ATX
Brand logo

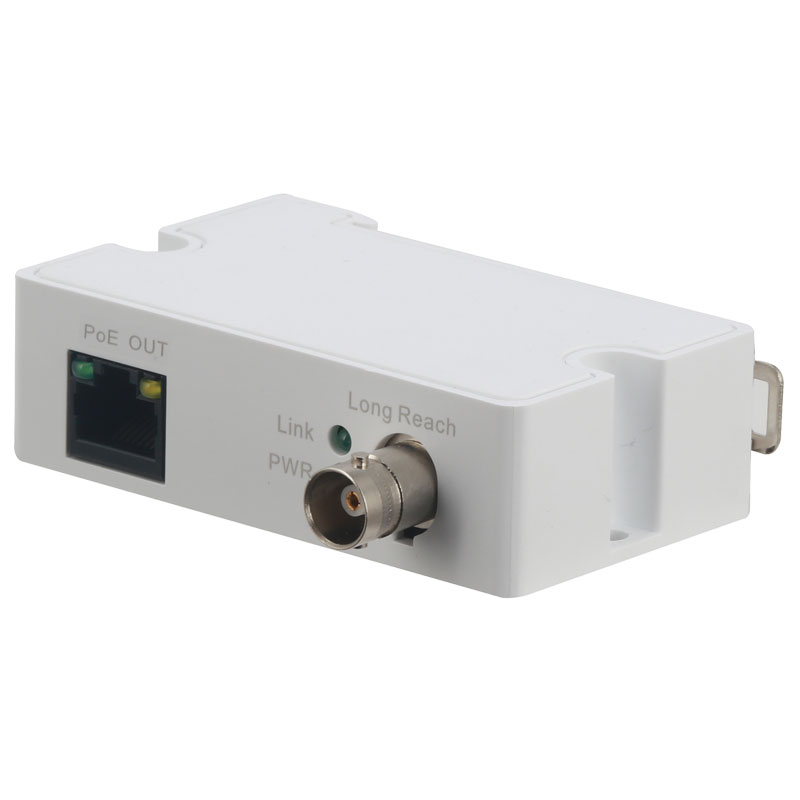

Ethernet over Coax Transmitter

SKU VSEOC-ATX

Convert RJ45 network connections to coaxial cable with the VSEOC-ATX. With these converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.

Product features:
• 1 x RJ45 10/100Mbps port, 1 x BNC port
• Supports IEEE802.3 & IEEE802.3u standards
• Supports IEEE802.3af and IEEE802.3at PoE standards
• Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
• Supports MDI/MDIX self-adaption
• Supports long range power supply transmission via coaxial cable
• DIN rail mountable

Suggested Products

Suggested product image
Ethernet over Coax Receiver
VSEOC-ARX
Suggested product image
Ethernet over Coax Converter Pair
VSEOCPAIRV2

Links and Downloads

Securview HDCVI Accessories Brochure (PDF) 1.09 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Dimensions
79mm x 52mm x 23mm
Installation
DIN rail mountable
Network Protocol
IEEE802.3, IEEE802.3u, IEEE802.3x
Operating Environment
-30°C-65°C / <95% RH
PoE Protocol
IEEE802.3af, IEEE802.3at
Ports
1 x 10/100 Mbps Base-TX, 1 x BNC
Power Consumption
<2W
Surge Protection
Common Mode: 4KV / Differential Mode: 2KV
Transmission Bandwidth
RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
Weight
61g
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
130 mm
Height
72 mm
Depth
80 mm
Weight
0.10 kg
