700TVL 30m Infrared 2.8-12mm Varifocal Lens Dome

Brand logo
SKU VSDVF30MIR2.8-12V2
Brand logo

700TVL 30m Infrared 2.8-12mm Varifocal Lens Dome

SKU VSDVF30MIR2.8-12V2

Stock may be limited. Please contact us for availability or for an alternative item.

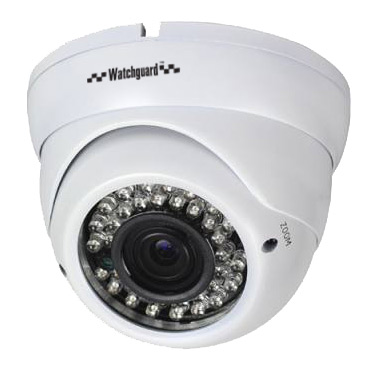

The Watchguard VSDVF30MIR2.8-12V2 is a manual varifocal lens analogue dome camera.
This is a plastic body camera built for indoor use only.

Product features:
• 700TVL image resolution
• 2.8 ~ 12mm manual varifocal lens
• 30m infrared range for low light/night video capture
• 0.1 Lux at F2.0 / 0 Lux IR Active
• 12VDC power input

Suggested Products

Suggested product image
8 Channel Compact 720p HDCVI Digital Video Recorder
CVR8EV2
Suggested product image
800TVL 20m Infrared 3.6mm Fixed Lens Mini Bullet
VSWFF20MIR800BV2
Suggested product image
800TVL 40m Infrared 6-22mm Varifocal Lens Camera
VSWVF40MIR6-22

Links and Downloads

VSDVF30MIR2.8-12V2 Product Brochure (pdf) 1.12 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
N/A
Camera Type
Dome
Day / Night
Yes
Dimensions
Ø131 x 93mm
Effective Pixels
976(H) x 582(V)
Electronic Shutter
1/50(1/60) ~1/100,000(S)
Gain Control
Auto
Image Sensor
1/4” CMOS
Ingress Protection
Indoor only
Lens
2.8~12mm Manual Varifocal
Lens Type
Fixed
Max. Resolution
700 TVL
Maximum Infrared Range
30m
Memory Slot
N/A
Minimum Illumination
0.1 Lux at F2.0 / 0 Lux IR Active
Operating Environment
-10° to 45°C / RH95% (Max)
Power Consumption
<3W
Power Input
12VDC
S/N Ratio
>50dB
Sync. System
Internal
Vandal Resistant
N/A
Video Output
1 Vp-p / 75 Ohms
White Balance
Auto
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
280 mm
Height
150 mm
Depth
110 mm
Weight
1.30 kg
