800TVL 20m Infrared 3.6mm Fixed Lens Mini Dome

Brand logo
SKU VSDFF20MIR800VPV2
Brand logo

800TVL 20m Infrared 3.6mm Fixed Lens Mini Dome

SKU VSDFF20MIR800VPV2

Stock may be limited. Please contact us for availability or for an alternative item.

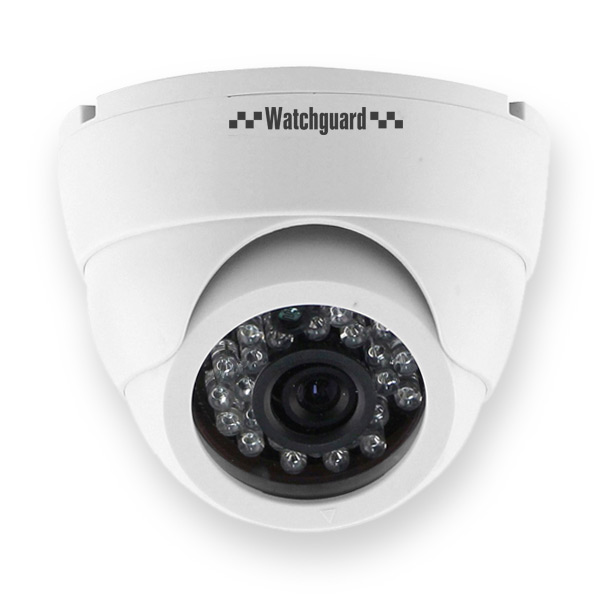

The Watchguard VSDFF20MIR800VPV2 is a stylish dome camera capable of streaming beyond 800TVL definition footage. This camera features up to 800TVL image resolution, with 20m infrared range for low light/night video capture and a standard 3.6mm fixed lens.
The camera housing is IP66 rated, making it suitable for outdoor surveillance.

Product features:
• 800TVL (756 × 504 pixels)
• Max. 20m infrared range
• 3.6mm Fixed Lens

Suggested Products

Suggested product image
8 Channel Compact 720p HDCVI Digital Video Recorder
CVR8EV2
Suggested product image
800TVL 20m Infrared 3.6mm Fixed Lens Mini Bullet
VSWFF20MIR800BV2
Suggested product image
800TVL 40m Infrared 6-22mm Varifocal Lens Camera
VSWVF40MIR6-22

Links and Downloads

VSDFF20MIR800VPV2 Product Brochure (PDF) 1.15 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
N/A
Camera Type
Dome
Day / Night
Yes
Dimensions
TBA
Effective Pixels
756(H) × 504(V)
Electronic Shutter
1/50(1/60) ~1/100,000(S)
Gain Control
Auto
Image Sensor
1/3” CMOS
Ingress Protection
N/A
Lens
3.6mm
Lens Type
Fixed
Max. Resolution
800 TVL
Maximum Infrared Range
20m
Memory Slot
N/A
Minimum Illumination
0.1 Lux at F2.0 / 0 Lux IR Active
Operating Environment
-10° to 45°C / RH95% (Max)
Power Consumption
TBA
Power Input
12VDC
S/N Ratio
>50dB
Sync. System
Internal
Vandal Resistant
N/A
Video Output
1 Vp-p / 75 Ohms
Weight
TBA
White Balance
Auto
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
69 mm
Height
94 mm
Depth
69 mm
Weight
0.40 kg
