Professional Series 1080p Motorised HDCVI Bullet

Brand logo
SKU VSCVI2MPFBIRM
Brand logo

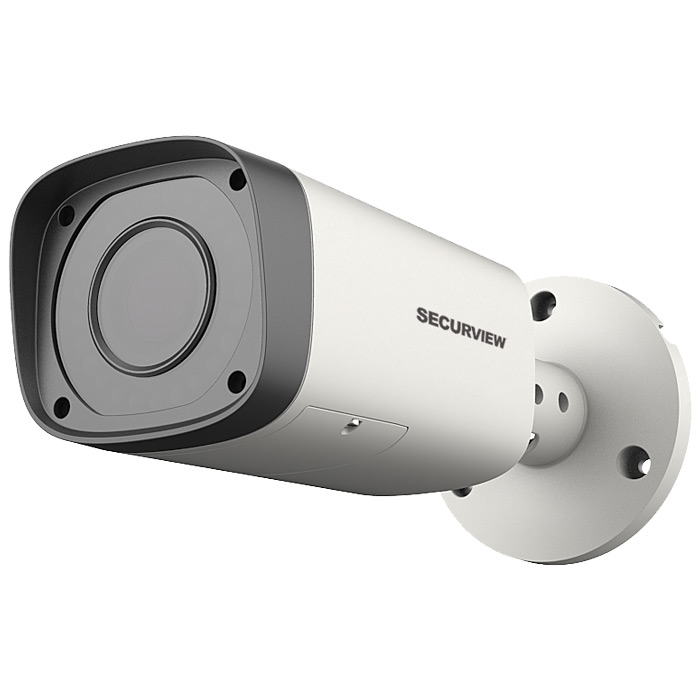

Professional Series 1080p Motorised HDCVI Bullet

SKU VSCVI2MPFBIRM

Stock may be limited. Please contact us for availability or for an alternative item.

The Securview Victory Series VSCVI2MPFBIRM is a 2.4 megapixel, motorised varifocal lens, infrared bullet camera and is capable of providing 1080p Full High Definition footage over coaxial cable. This camera is only compatible with digital video recorders in the Securview Victory Series.

It uses the HDCVI video transmission standard which enables HD video transmission distance up to 300m (1080p using 75-3 coax) with low latency and low interference. The camera’s motorised lens and IP66 rating make it a perfect surveillance solution across a wide range of CCTV applications.

• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Motorised 2.7 ~ 12mm lens, fixed iris
• 99 ~ 34° horizontal viewing angles
• Up to 500m HD video transmission over coax
• Infrared illumination up to 30m
• IP66 rated for weather resistance
• Auto white balance & 3D noise reduction
• Adjustable ball-socket bracket mount

Backwards compatible: HDCVI/Analogue switchable BNC video input.
Analogue mode configuration via OSD using HDCVI DVR or tester.

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA122
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152

Links and Downloads

VSCVI2MPFBIRM Product Brochure (PDF) 0.27 MB
Bracket Compatibility Guide - 09-2015 (PDF) 0.51 MB
Bracket Compatibility Guide 06-2017 (PDF) 0.83 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
N/A
Analogue Support
Yes (Switchable)
Angle of View
99° (wide) ~ 34° (tele)
Audio Input
N/A
Backlight Compensation
BLC / HLC / DWDR
Camera Style
Weather Resistant Bullet
Camera Type
Bullet
Day/Night
Auto (ICR) / Colour / B&W
Dimensions
213 x 80 x 72mm
Effective Pixels
1984 (H) x 1225 (V)
Electronic Shutter
1/3 ~ 1/100,000s
Frame Rate
25fps (1080p and lower)
Gain Control
Auto
Image Sensor
1/2.8” 2.4 Megapixel CMOS
Ingress Protection
IP66
Lens
2.7 ~ 12mm Motorised Lens; Fixed Iris
Lens Type
Motorised Varifocal
Max. Resolution
1080p Full HD
Maximum Infrared Range
30m
Minimum Illumination
0.05 Lux at F1.2 (Colour) / 0 Lux IR Active
Noise Reduction
2D / 3D
Operating Environment
-30° to 60°C / RH95% (max)
OSD Menu
Support
Power Consumption
< 7.5W
Power Input
12VDC
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Signal Noise Ratio
> 50dB
Synchronisation
Internal
Transmission Distance
Over 500m via 75-3 coaxial cable
Tri-Axis Mounting
No
Vandal Resistant
No
Video Compression
H.264 / MJPEG
Video Output
BNC CVI HD output / CVBS SD output (switchable)
Weight
0.55kg
White Balance
Auto
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
280 mm
Height
110 mm
Depth
135 mm
Weight
0.78 kg
