Compact Series 720p Fixed HDCVI Mini Dome

Brand logo
SKU VSCVI1MPDIRV3
Brand logo

Compact Series 720p Fixed HDCVI Mini Dome

SKU VSCVI1MPDIRV3

Stock may be limited. Please contact us for availability or for an alternative item.

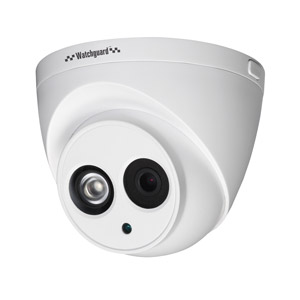

The Watchguard VSCVI1MPDIRV3 is an HDCVI infrared dome camera featuring a 1.0 megapixel sensor, 3.6mm fixed lens and built-in infrared illumination for up to 50m night-vision in complete darkness.

It offers a maximum image resolution of 720p (1280 x 720) over coaxial cable. It uses the HDCVI video transmission standard which enables HD video transmission distance up to 800m (720p using 75-3 coax) with low latency and low interference.

Its compact size and IP67 rating makes it a perfect surveillance solution across a wide range of applications.

• Streams HD 720p/1.0MP (1280 x 720)
• Fixed 3.6mm lens; 88° viewing angle
• Up to 800m HD video transmission over coax
• Infrared illumination up to 50m
• IP67 rated for weather resistance
• Compact size with adjustable mount
• Metal inner ball, plastic outer

HDCVI BNC video output only (not analogue compatible).

Suggested Products

Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB200W
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W

Links and Downloads

VSCVI1MPDIRV3 Brochure (PDF) 0.29 MB
Bracket Compatibility Guide 06-2017 (PDF) 0.83 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
N/A
Analogue Support
No
Angle of View
88°
Audio Input
N/A
Backlight Compensation
BLC
Camera Style
Weather Resistant Mini Dome
Camera Type
Dome
Day/Night
Auto (ICR) / Colour / B&W

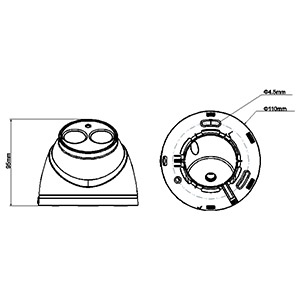

Dimensions
Ø110 x 95mm
Effective Pixels
1280 (H) x 720 (V)
Electronic Shutter
1/50 ~ 1/100,000s
Frame Rate
25fps (720p and lower)
Gain Control
Auto
Image Sensor
1/2.9” 1.0 Megapixel CMOS
Ingress Protection
IP67
Lens
3.6mm Fixed Lens
Lens Type
Fixed
Max. Resolution
720p HD
Maximum Infrared Range
50m
Minimum Illumination
0.05 Lux at F1.6 (Colour) / 0 Lux IR Active
Noise Reduction
2D
Operating Environment
-30° to 60°C / RH95% (max)
OSD Menu
Support
Power Consumption
< 3.5W
Power Input
12VDC
Resolution
720p (1280 x 720) to CIF (352 x 288)
Signal Noise Ratio
> 50dB
Synchronisation
Internal
Transmission Distance
Over 800m via 75-3 coaxial cable
Tri-Axis Mounting
Yes
Vandal Resistant
No
Video Compression
H.264
Video Output
BNC CVI HD output
Weight
0.30kg
White Balance
Auto
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
115 mm
Height
115 mm
Depth
115 mm
Weight
0.35 kg
