Value Series 720p Fixed HDCVI Mini Dome

Brand logo
SKU VSCVI1MPDIRV2
Brand logo

Value Series 720p Fixed HDCVI Mini Dome

SKU VSCVI1MPDIRV2

Stock may be limited. Please contact us for availability or for an alternative item.

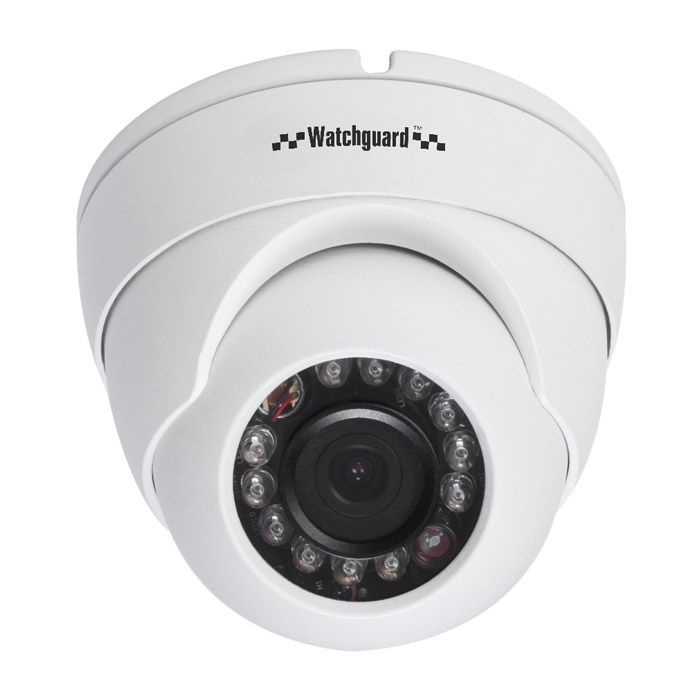

The Watchguard VSCVI1MPDIRV2 is an HDCVI infrared dome camera featuring a 1.0 megapixel sensor, 3.6mm fixed lens and built-in infrared illumination for up to 30m night-vision in complete darkness. It offers a maximum image resolution of 720p (1280 x 720) over coaxial cable.

It uses the HDCVI video transmission standard which enables HD video transmission distance up to 800m (720p using 75-3 coax) with low latency and low interference. Its compact size and IP67 rating makes it a perfect surveillance solution across a wide range of applications.

This camera is only compatible with Securview Victory Series and Watchguard HDCVI digital video recorders.

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA121
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152

Links and Downloads

VSCVI1MPDIRV2 Product Brochure (PDF) 1.26 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
N/A
Angle of View
80°
Audio Input
N/A
Backlight Compensation
BLC
Camera Style
Weather Resistant Mini Dome
Camera Type
Dome
Day/Night
Auto (ICR) / Colour / B&W
Dimensions
Ø93 x 80mm
Effective Pixels
1280 (H) x 720 (V)
Electronic Shutter
1/50 ~ 1/10,000s
Frame Rate
25fps (720p and lower)
Gain Control
Auto
HD/SD Switchable
No
Image Sensor
1/2.9” 1.0 Megapixel CMOS
Ingress Protection
IP66
Lens
3.6mm Fixed Lens
Lens Type
Fixed
Max. Resolution
720p HD
Maximum Infrared Range
20m
Minimum Illumination
0.01 Lux at F1.2 (Colour) / 0 Lux IR Active
Noise Reduction
2D
Operating Environment
-30° to 60°C / RH95% (max)
OSD Menu
Support
Power Consumption
< 2.5W
Power Input
12VDC
Resolution
720p (1280 x 720) to CIF (352 x 288)
Signal Noise Ratio
> 50dB
Synchronisation
Internal
Transmission Distance
Over 800m via 75-3 coaxial cable
Vandal Resistant
No
Video Compression
H.264
Video Output
BNC CVI HD output
Weight
0.35kg
White Balance
Auto
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
115 mm
Height
115 mm
Depth
115 mm
Weight
0.35 kg
