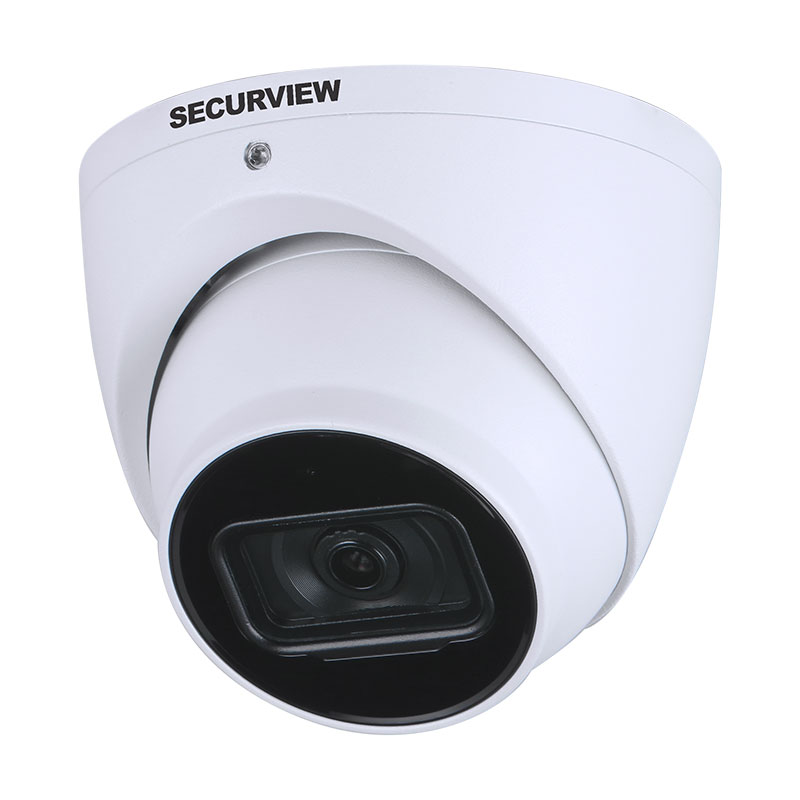

Professional Series 5.0MP 2.8mm Fixed HDCVI Turret

Brand logo
SKU VSCVI-5DIRG2
Brand logo

Professional Series 5.0MP 2.8mm Fixed HDCVI Turret

SKU VSCVI-5DIRG2

The VSCVI-5DIRG2 offers high performance surveillance over coax in a compact body. Deliver perfect evidence in challenging conditions with weather resistance for outdoor use, ultra low light performance and a small install footprint.

Camera features:
• Stream up to 5.0MP (2880 x 1620) at 25fps
• 2.8mm lens with wide 132° viewing angle
• Superb colour image performance in low light at 0.001lx
• Smart infrared illumination, up to 50m range
• Switchable BNC output for HD/composite video
• True WDR (120dB) and 2D/3D noise reduction
• Up to 700m video transmission over coaxial cable
• IP67 rated weather resistance
• Compact Ø106mm base for versatile installation
• Supports HDCVI, AHD, HDTVI & Composite video format modes

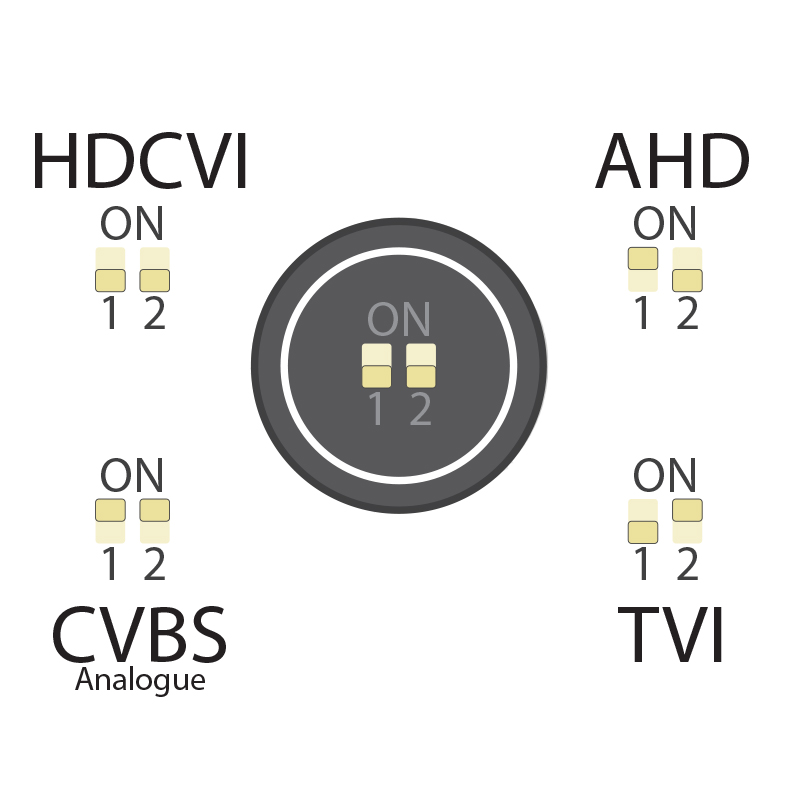

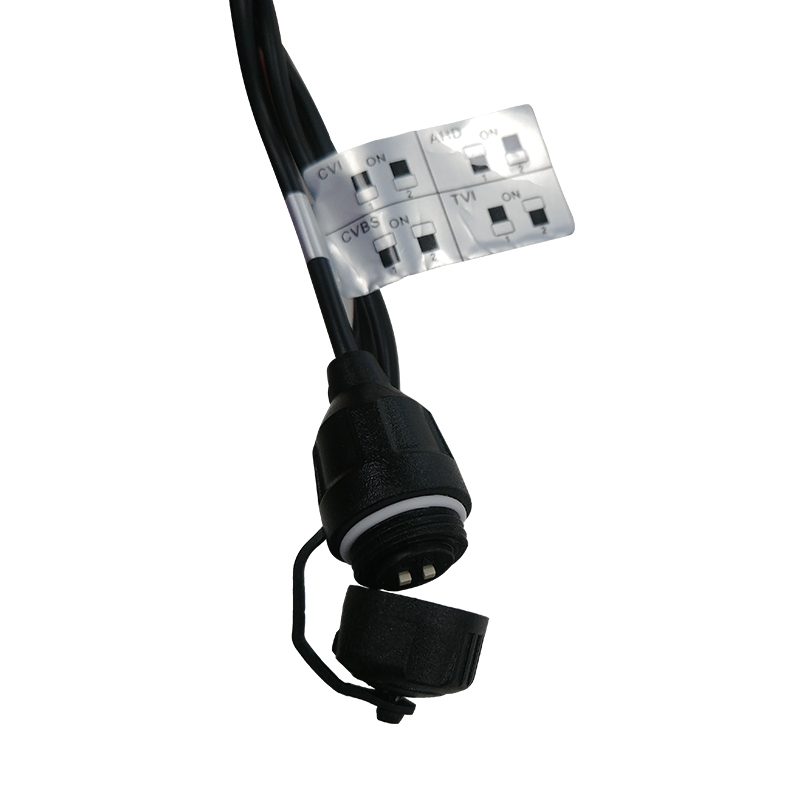

• Switch modes via DIP switches

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image

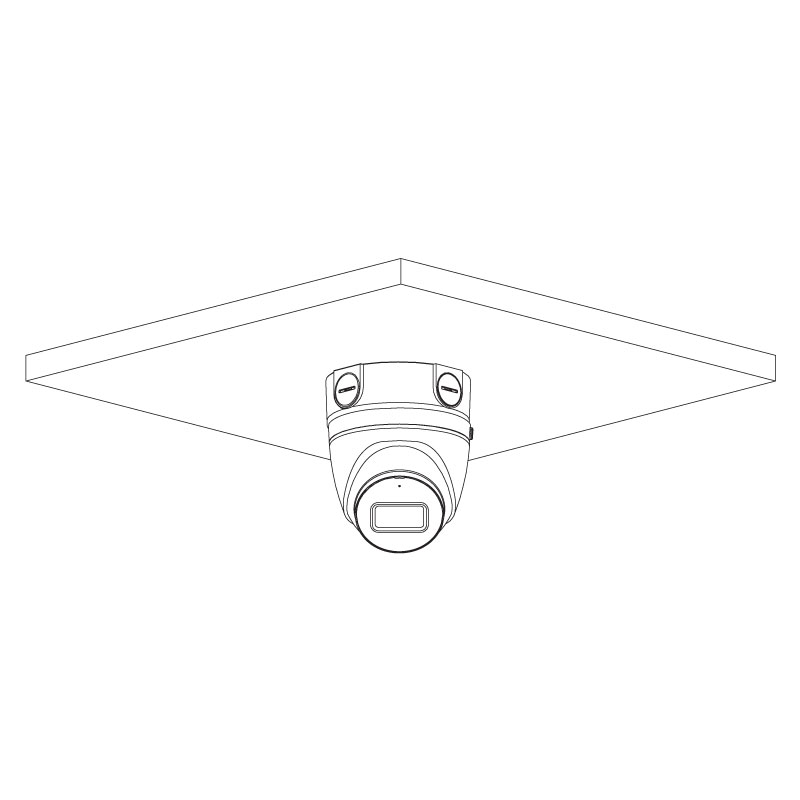

Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image

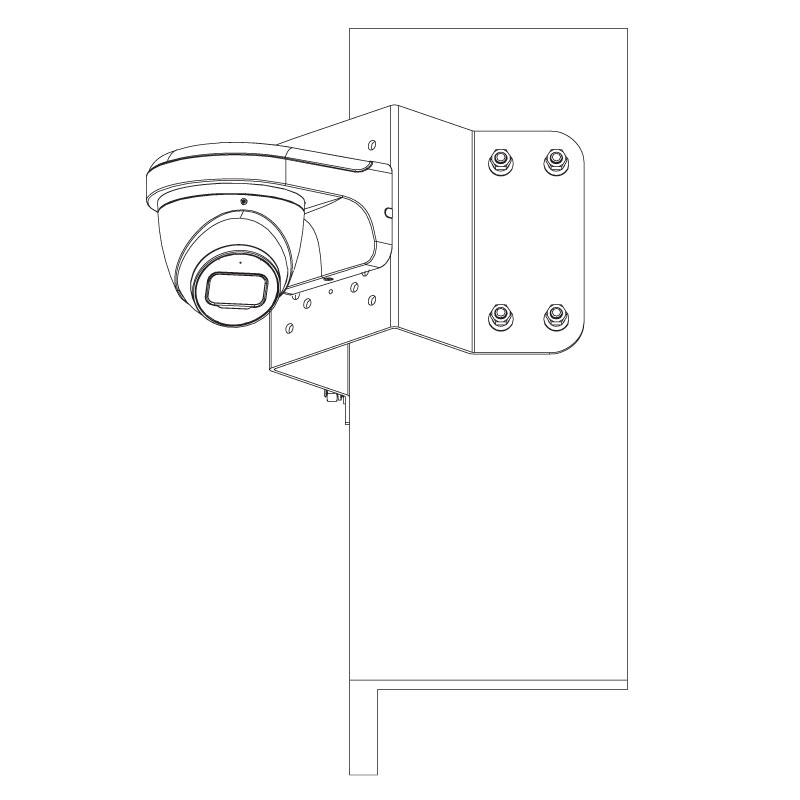

Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB204W
Suggested product image

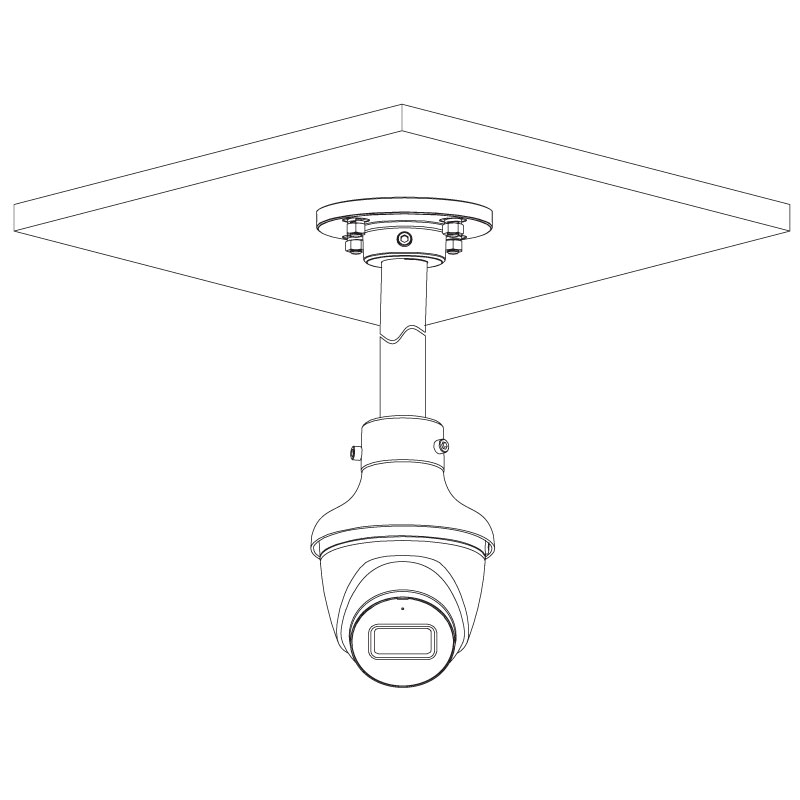

760mm Ceiling Mount Dome Bracket
VSBKTB220C

Links and Downloads

Securview VSCVI-5DIRG2 Datasheet (PDF) 1.25 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2” 5.0 Megapixel CMOS
Max. Resolution
5.0 Megapixel
Effective Pixels
2880 (H) x 1620 (V)
Minimum Illumination
0.001 Lux at F1.6 (Colour) / 0 Lux IR Active
Electronic Shutter
1/3s ~ 1/100,000s
Infrared Range
50m
Signal Noise Ratio
>65dB
Lens
Lens
2.8mm F1.6 Fixed Lens
Lens Type
Fixed
Angle of View
132° (H) / 111° (V) / 50° (D)
Focus
Fixed / 0.9m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
63.6m
Observe (63px/m)
25.4m
Recognise (125px/m)
12.7m
Identify (250px/m)
6.4m
Video
Resolution
5.0MP (2880 x 1620) to 960H (960 x 576)
Frame Rate
25fps (5.0MP and lower)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Manual
Noise Reduction
2D / 3D
Gain Control
Auto
Transmission Distance
Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input
1 channel in & Built-in mic
Alarm Interface
N/A
Video Output
1 x HDCVI / AHD / TVI / Composite video output
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
DIP Switches
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Professional Series
Housing
Aluminium
Camera Type
Turret
Tri-Axis Mounting
Yes
Power Input
12VDC
Power Consumption
<5.9W

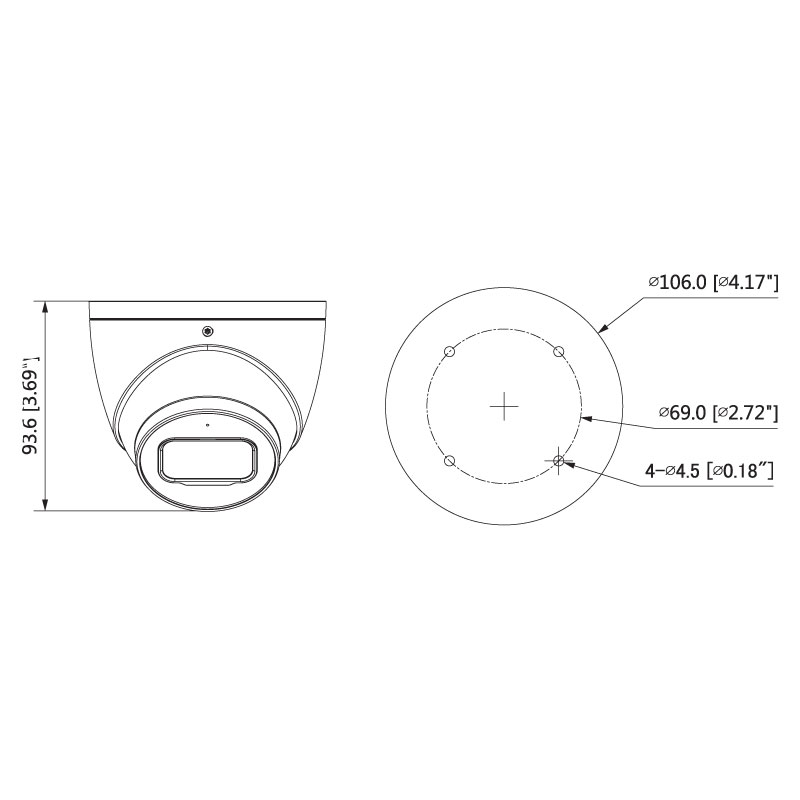

Dimensions
ø106mm x 94mm
Weight
0.43kg
Operating Environment
-40° to 60°C / RH90% (max)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
140 mm
Height
150 mm
Depth
140 mm
Weight
1.00 kg
