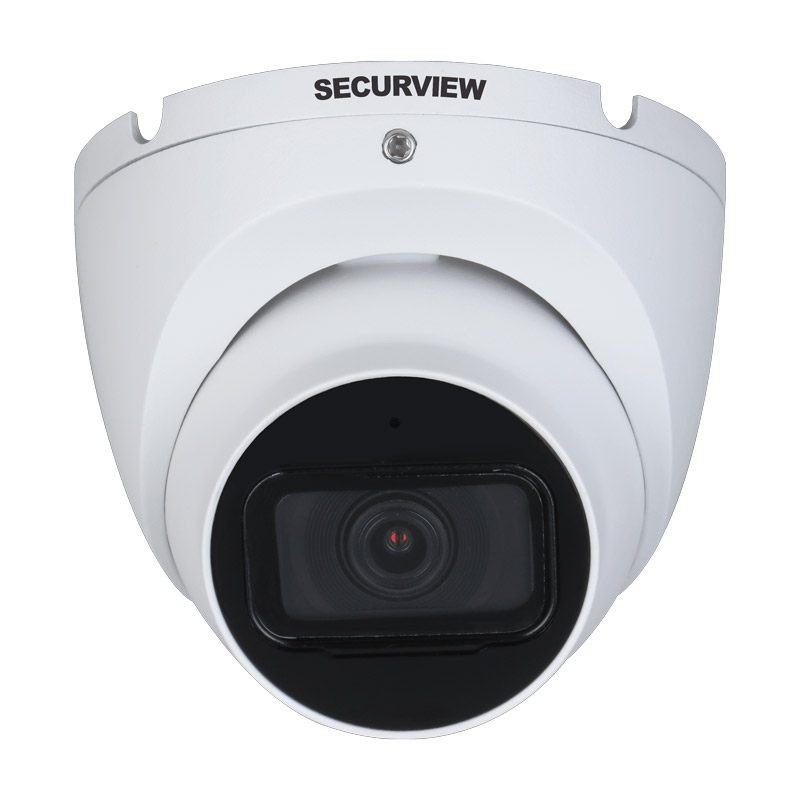

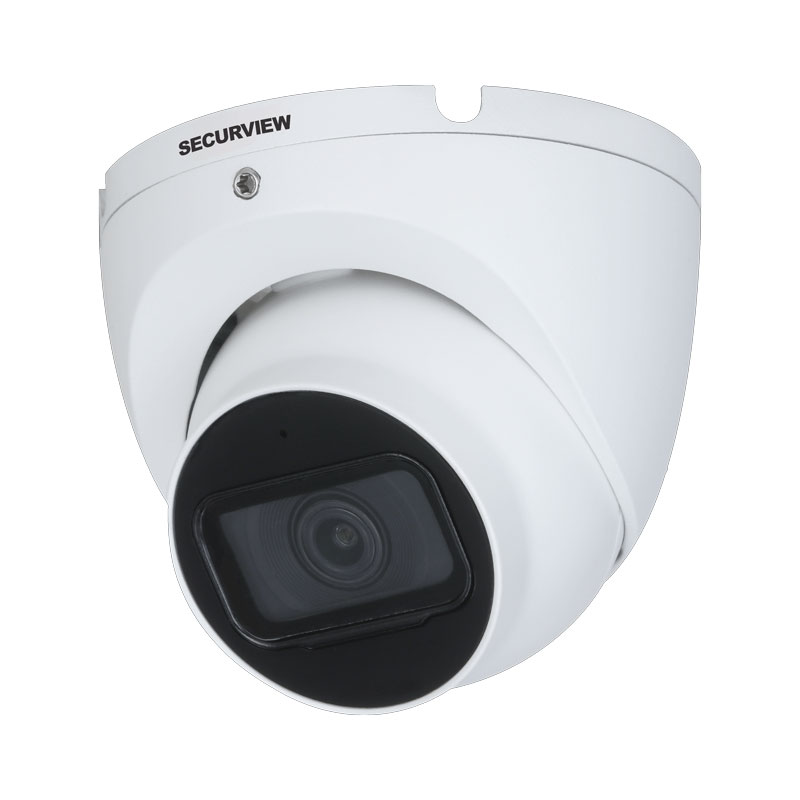

Professional Series 2.0MP 2.8mm Fixed HDCVI Turret

Brand logo
SKU VSCVI-2DIRG
Brand logo

Professional Series 2.0MP 2.8mm Fixed HDCVI Turret

SKU VSCVI-2DIRG

Create high performance surveillance over coax systems with the Securview Professional Series. Deliver evidence in challenging conditions with weather resistance for outdoor use, low light colour footage and a small install footprint.

Camera features:
• Stream up to 2.0MP (1920 x 1080) at 25fps
• 2.8mm lens with wide 109° viewing angle
• Superb colour image performance in low light at 0.001lx
• Video transmission over coaxial cable
• Smart infrared illumination, up to 30m range
• True WDR (120dB) and 3DNR noise reduction
• Video transmission over coaxial cable
• HDCVI / AHD / TVI / Analog DVR support
• IP67 rated weather resistance for outdoor use
• Compact Ø94mm installation footprint

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA13A-E
Suggested product image

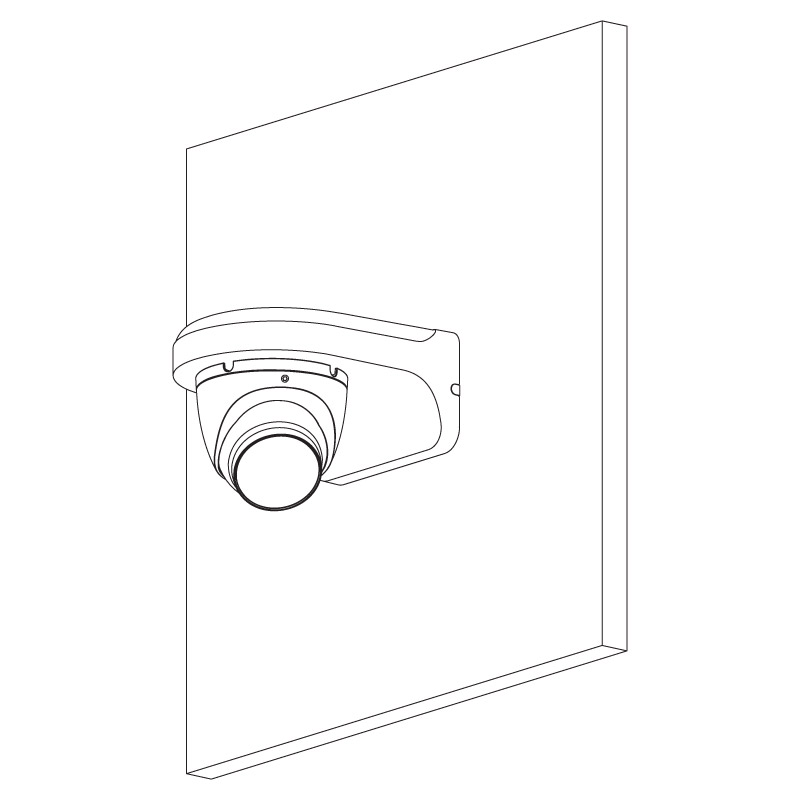

Wall Mount Camera Bracket
VSBKTB205W-E

Links and Downloads

Securview HDCVI Fixed Lens Turret Dome Datasheet (PDF) 1.34 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
2.0 Megapixel CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
Minimum Illumination
0.001 Lux at F1.6 (Colour) / 0 Lux IR on
Electronic Shutter
1/25 s ~ 1/100,000s
Infrared Range
30m
Signal Noise Ratio
>65dB
Lens
Lens
2.8mm F1.6 Fixed Lens
Lens Type
Fixed
Angle of View
109° (H) / 58° (V) / 127° (D)
Focus
Fixed / 0.7m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
42.2m
Observe (63px/m)
16.9m
Recognise (125px/m)
8.4m
Identify (250px/m)
4.2m
Video
Resolution
2.0MP (1920 x 1080) to 960H (960 x 576)
Frame Rate
25fps (2.0MP and lower)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto ; Area WB
Noise Reduction
3D NR
Gain Control
Auto / Manual
Transmission Distance
Video transmission over coaxial cable
Interface
Audio Input
1 channel in & Built-in mic
Alarm Interface
N/A
Video Output
1 x HDCVI / AHD / TVI / Analogue (CVBS) by one BNC port (DIP Switch)
Modes Supported
HDCVI, AHD, HDTVI & Analogue
Mode Switching
DIP Switches
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Professional Series
Housing
Metal
Camera Type
Turret
Tri-Axis Mounting
n/a
Power Input
12VDC
Power Consumption
<3.1W

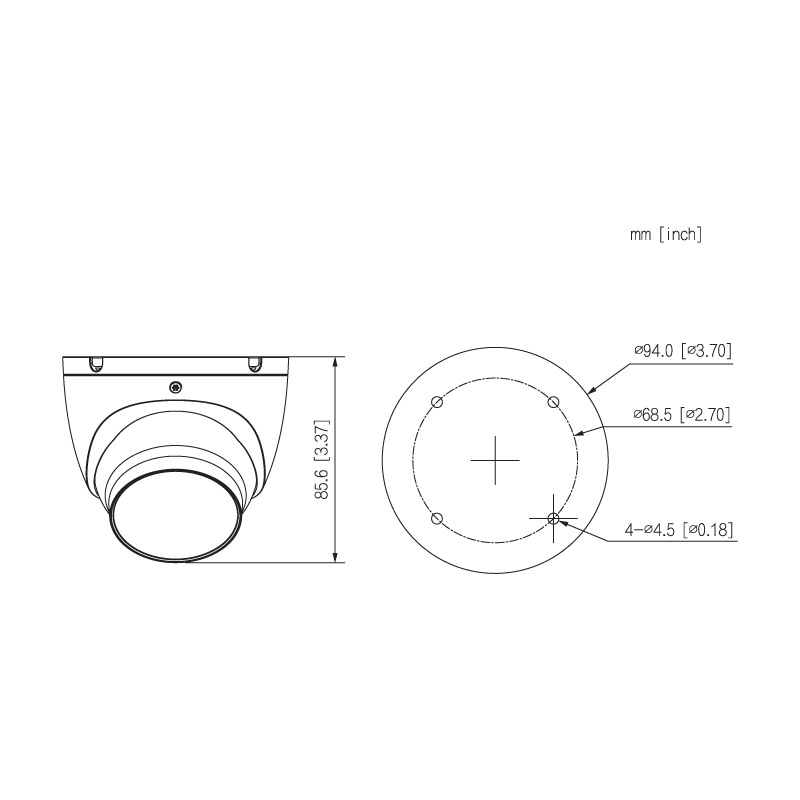

Dimensions
Ø94 x 85.7mm
Weight
0.33kg
Operating Environment
-40° to 60°C / RH95% (max)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
160 mm
Height
220 mm
Depth
170 mm
Weight
1.00 kg
