Right Angle Wall Mount Camera Bracket

Brand logo
SKU VSBKTB203W

Right Angle Wall Mount Camera Bracket

SKU VSBKTB203W

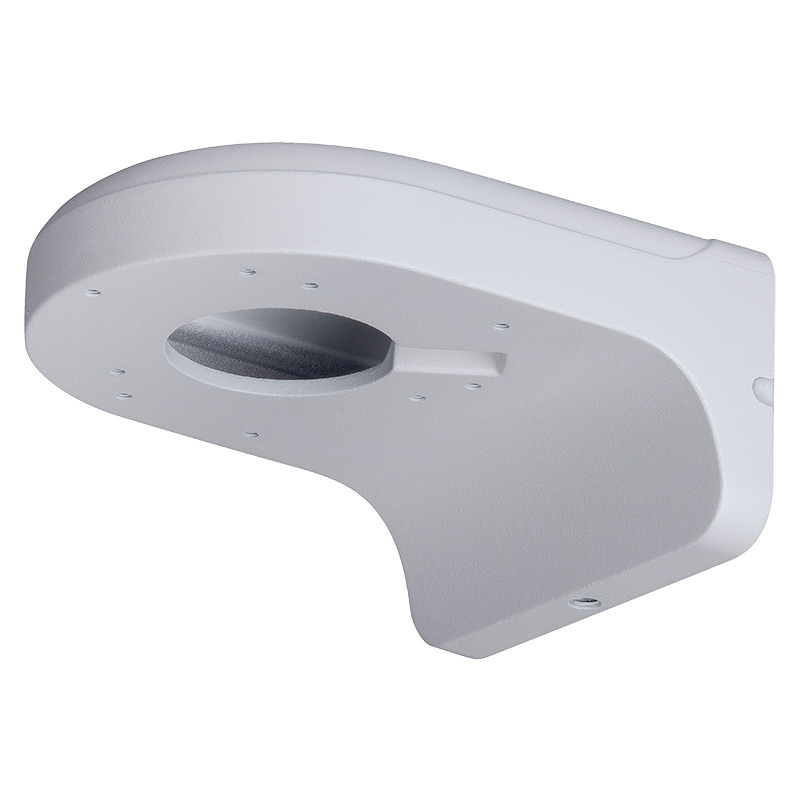

Powder coated aluminium right angle wall mount bracket for surveillance cameras.

This bracket is compatible with the following cameras from VIP Vision and/or Securview Victory Series.

See bracket compatibility guide below for product compatibility.

Links and Downloads

VSBKTB203W Product Brochure (pdf) 0.22 MB
Accessory Compatibility Guide 2023 (PDF) 1.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Connection
Bracket Type
Right Angle
Load Bearing Capacity
1.00kg
Pipe Thread
N/A
General
Materials
Aluminium
Weather Resistance
Yes
Operating Conditions
-40° ~ 60°C / 90% RH (max)

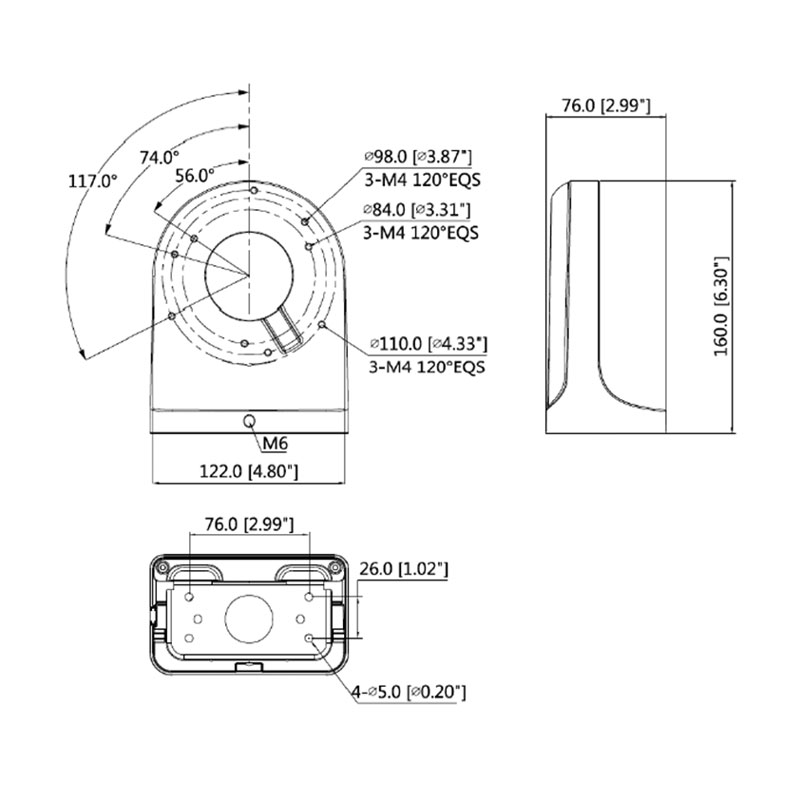

Dimensions
160 x 122 x 76mm
Weight
0.57kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
122 mm
Height
160 mm
Depth
76 mm
Weight
0.50 kg
