220mm Extender for Ceiling Mount Bracket

Brand logo
SKU VSBKTA112

220mm Extender for Ceiling Mount Bracket

SKU VSBKTA112

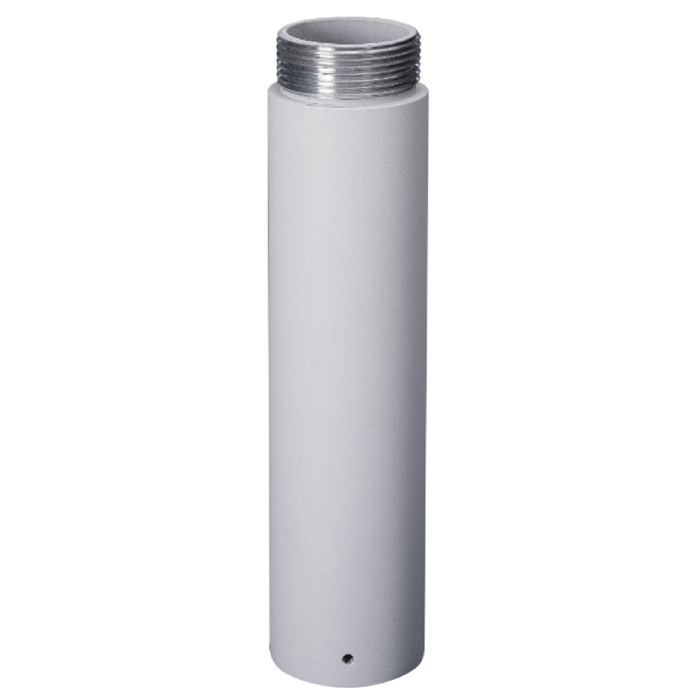

Powder coated aluminium extender for ceiling mount brackets for surveillance cameras.

This bracket is compatible with the following cameras from VIP Vision and/or Securview Victory Series.

VIP Vision™ IP Surveillance Cameras
Extender compatible only with VSBKTB300C.

Securview Victory Series™ HD Over Coax Cameras
Extender compatible only with VSBKTB300C.

Links and Downloads

VSBKTA112 Product Brochure (PDF) 0.24 MB
Accessory Compatibility Guide 2023 (PDF) 1.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Connection
Bracket Type
Connector
Load Bearing Capacity
N/A
Pipe Thread
1 1/2" PF
General
Materials
Aluminium
Weather Resistance
N/A
Operating Conditions
-40° ~ 60°C / 90% RH (max)
Dimensions

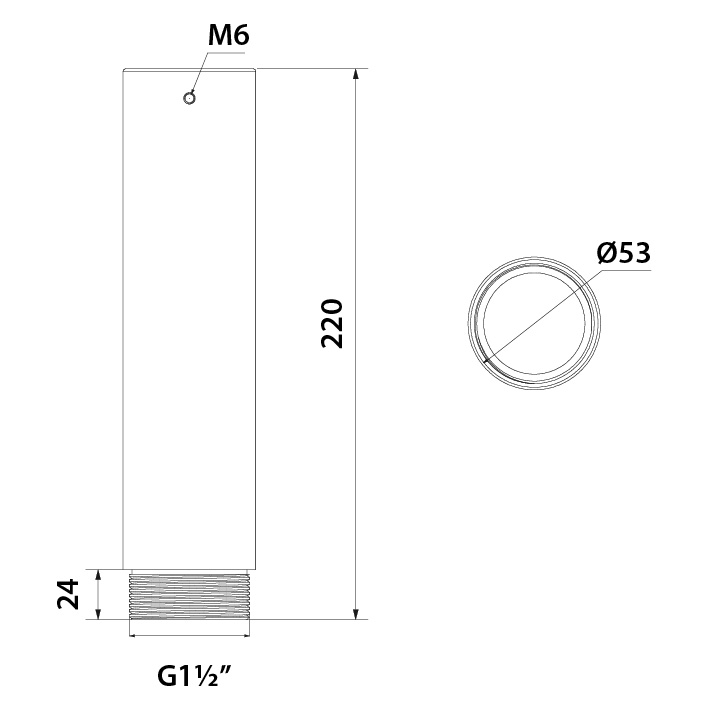

Ø53 x 220mm
Weight
0.50kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
55 mm
Height
50 mm
Depth
225 mm
Weight
0.50 kg
