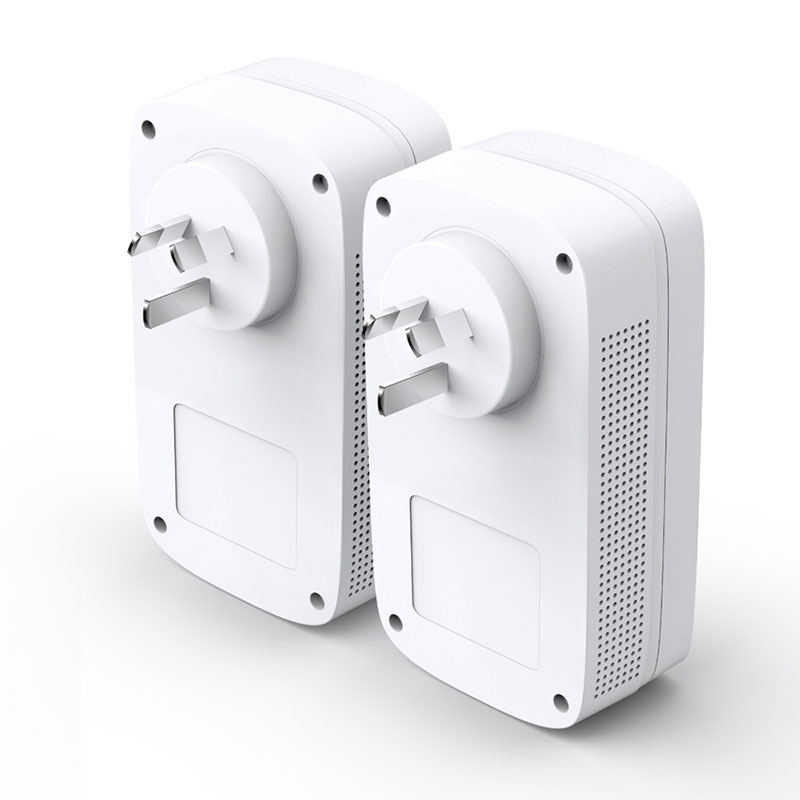

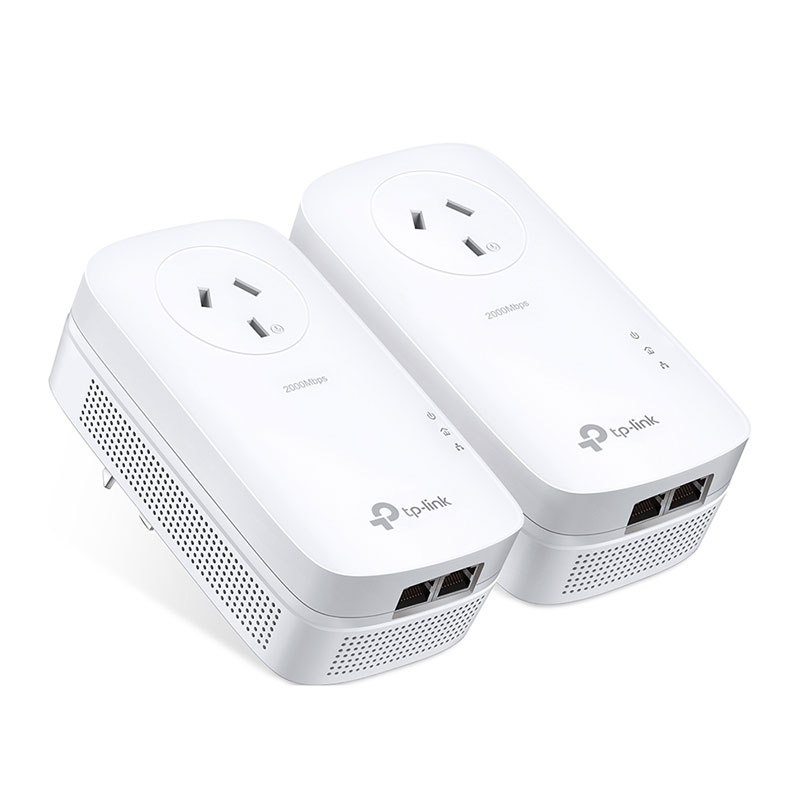

2-Port Gigabit Passthrough Powerline Starter Kit

Brand logo
SKU TP-TL-PA9020PKIT
Brand logo

2-Port Gigabit Passthrough Powerline Starter Kit

SKU TP-TL-PA9020PKIT

Available by special order only. Please contact us for lead times.

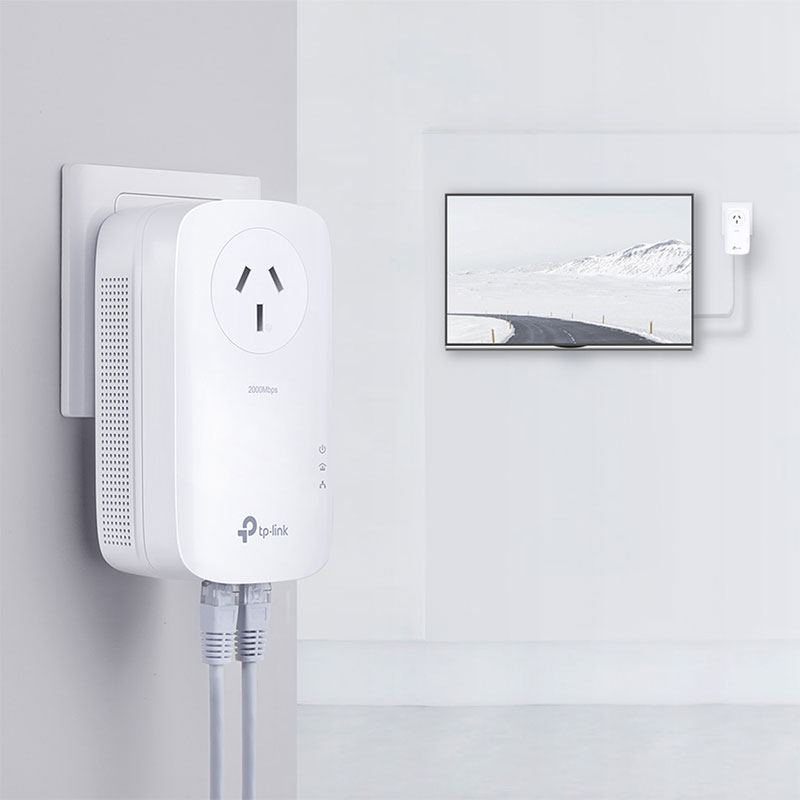

Bring internet to any area with a power outlet using your home or small businesses electrical wiring. The TL-PA9020PKIT uses 2X2 MIMO technology to establish fast and stable connections to wired devices. It is ideal for streaming CCTV surveillance systems.

Setting up powerline networks is easy, simply plug, pair and enjoy. There is no need to run new wires, you can use existing electrical wiring to expand your network.

- 2 Gigabit Ethernet Ports
- Ultra fast powerline speed with high speed data transfer up to 2000Mbps
- Up to 300m range over household power circuit
- Easy installation - plug, pair and play
- Features an embedded power socket to use with other devices
- Ideal for 4K/Ultra HD streaming and online gaming

Kit includes 2 x TL-PA9020P powerline adapters and 2 x 2m RJ45 Ethernet cable

Suggested Products

Suggested product image
Ethernet & WiFi Range Extender AV1000 Powerline Kit
TP-TL-WPA7510KIT
Suggested product image
3-Port Gigabit Passthrough Powerline & WiFi Kit
TP-TL-WPA8630PKIT

Links and Downloads

TP Link TL-PA9020PKIT Datasheet (PDF) 0.58 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Gigabit Ethernet Ports
2
Transmission Speeds
Powerline: up to 2000Mbps, Ethernet: 10/100/1000Mbps
Range
Up to 300m over existing electrical wiring
Standards & Protocols
HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
LED Indicator
Power, Powerline, Ethernet
Button
Pair button with 128-bit AES encryption
Environment
Operating Environment
0~40°C operating temperature, 10~90% humidity non condensing
Power Consumption
5.8W (0.5W standby)
Dimensions
131 x 72 x 42mm (TL-PA9020P powerline adapter)
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
190 mm
Height
100 mm
Depth
230 mm
Weight
0.72 kg
