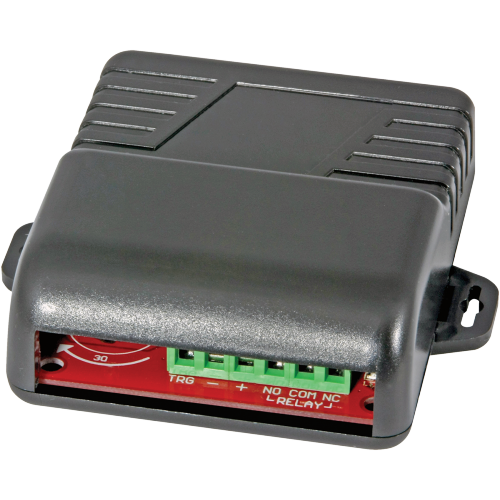

Programmable Timer Module (1s - 60m)

SKU TMR8A-1H

Programmable Timer Module (1s - 60m)

SKU TMR8A-1H

Stock may be limited. Please contact us for availability or for an alternative item.

The TMR8A-1H Programmable Timer Module is suitable for use with a wide range of timed security and access control products, such as electric door strikes, sirens, or bells.

Installation is easy with DIP switches for programming, auto-sensing of input voltage and a case with screw holes for mounting.

Features:
• Timer can be set from 1 second to 60 minutes
• Protective case shields the timer from dirt/dust and makes installation easier
• Can be triggered by positive voltage (+DC), or closure or opening of dry contact
• Relay can be programmed to activate at the start/end of the timing cycle, or for one second at end of the timing cycle
• Programmable for pulse (flash) activation
• Small form factor allows for easy installation
• Built-in reset function to manually reset timing cycle
• LED power indicator
• Programmed via DIP switches - no jumpers to cut

Suggested Products

Indoor Heavy Duty Door Release Button
ACDSW100

Indoor Slim Door Release Button
ACDSW101

Indoor Touch Door Release Button
ACDSW102

Mortise Electric Door Strike
ACLOC100

Surface Mount Electric Door Strike
ACLOC101

Monitored Mortise Electric Door Strike
ACLOC102

Monitored Multi-Voltage Mortise Electric Door Strike
ACLOC103

Chrome Surface Mount Electric Door Strike
ACLOC104

Links and Downloads

Timer Module Range (PDF) 1.02 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Current Draw - Active

50mA

Current Draw - Standby

1mA

Dimensions

73 x 63mm (Board)

DIP Switches

Yes

LED Status

Yes (Power)

No. of Relays

Operating Voltage

12/24 VDC

Protective Case

Yes

Relay Ratings

Form C 8A

Timer Duration

1 second to 60 minutes

Weight

45g

Warranty (Years)

TBA
