Compact Timer Module (1s - 3m)

SKU TMR2A-3M

Compact Timer Module (1s - 3m)

SKU TMR2A-3M

Stock may be limited. Please contact us for availability or for an alternative item.

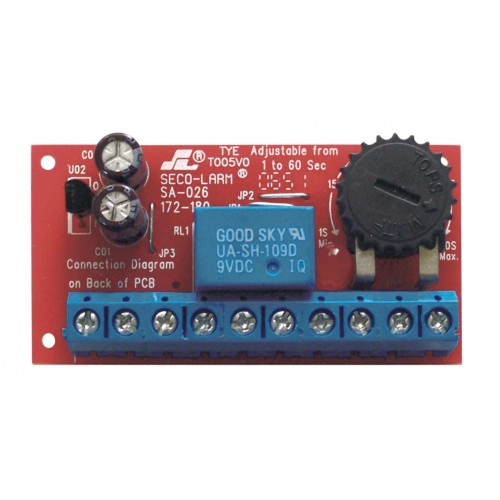

The TMR2A-3M Compact Timer Module is a low-voltage miniature delay timer which extends the activation time of a momentary contact switch.

It is ideal for electrical locks which do not have a built-in time delay function. Its compact size makes it able to fit in a single-gang switch box, door frame cavities and other small spaces.

Features:
• Adjustable timer from 1~180 seconds via potentiometer
• NO/NC switch trigger
• Compact design for easy and versatile installation
• Relay output: Form-C (SPDT) via terminal blocks
• Built-in reset function to manually reset timing cycle
• LED power indicator
• Built-in buzzer output (100mA @ 24VDC)
• Includes double-sided foam tape

Suggested Products

Indoor Heavy Duty Door Release Button
ACDSW100

Indoor Slim Door Release Button
ACDSW101

Indoor Touch Door Release Button
ACDSW102

Mortise Electric Door Strike
ACLOC100

Surface Mount Electric Door Strike
ACLOC101

Monitored Mortise Electric Door Strike
ACLOC102

Monitored Multi-Voltage Mortise Electric Door Strike
ACLOC103

Chrome Surface Mount Electric Door Strike
ACLOC104

Links and Downloads

Timer Module Range (PDF) 1.02 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Current Draw - Active

75mA

Current Draw - Standby

2mA

Dimensions

35 x 68 x 16 mm

DIP Switches

LED Status

Yes (Power)

No. of Relays

Operating Voltage

12~24 VDC/VAC

Protective Case

Relay Ratings

Form C 2A

Timer Duration

1 to 180 seconds

Weight

20g

Warranty (Years)

TBA

Shipping Weight and Dimensions

Includes product packaging

Width

88 mm

Height

83 mm

Depth

48 mm

Weight

0.06 kg
