Delayed Egress Timer Module (1s - 60s)

Brand logo
SKU TMR10A-1M
Brand logo

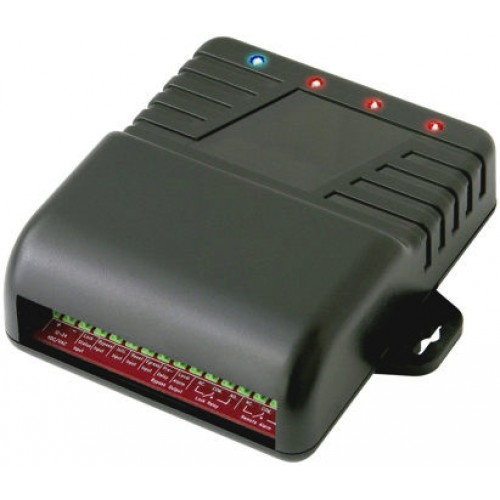

Delayed Egress Timer Module (1s - 60s)

SKU TMR10A-1M

The TMR10A-1M Delayed Egress Timer Module is used to delay the opening of a door, with 3 re-lock modes to choose from.

Delayed egress is useful in stores, particularly with back doors, to deter theft and grant more time to notice and approach somebody making unauthorised use of the door.

Features:
• 12~24 VDC Operation
• 3 Relock modes to meet installation requirements:
• Standard manual relocking
• BOCA (Building Officials Code Administrators) relocking
• Timed relocking (1~60 seconds)
• Adjustable pre-delay timer (1~30 seconds)
• Adjustable post-delay timer (1~60 seconds)
• Small form factor allows for easy installation
• Selectable manual or automatic relocking after outage
• Door status input
• LED power and relay status indicators
• Bypass input immediately releases locks
• Free egress input allows easy exit during the delay

Suggested Products

Suggested product image
Indoor Heavy Duty Door Release Button
ACDSW100
Suggested product image
Indoor Slim Door Release Button
ACDSW101
Suggested product image
Indoor Touch Door Release Button
ACDSW102
Suggested product image
Mortise Electric Door Strike
ACLOC100
Suggested product image
Surface Mount Electric Door Strike
ACLOC101
Suggested product image
Monitored Mortise Electric Door Strike
ACLOC102
Suggested product image
Monitored Multi-Voltage Mortise Electric Door Strike
ACLOC103
Suggested product image
Chrome Surface Mount Electric Door Strike
ACLOC104

Links and Downloads

Timer Module Range (PDF) 1.02 MB
TMR10A-1M User Manual (PDF) 0.74 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Current Draw - Active
120mA
Current Draw - Standby
N/A
Dimensions
76 x 83 x 28mm
DIP Switches
No
LED Status
Yes (Power & Relay)
No. of Relays
1
Operating Voltage
12~24 VDC/VAC
Protective Case
Yes
Relay Ratings
Form C 10A
Timer Duration
1 to 60 seconds
Weight
55g
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
88 mm
Height
83 mm
Depth
48 mm
Weight
0.06 kg
