Heavy Duty Hard Wired Reed Switch (White)

Brand logo
SKU RSW-M1W
Brand logo

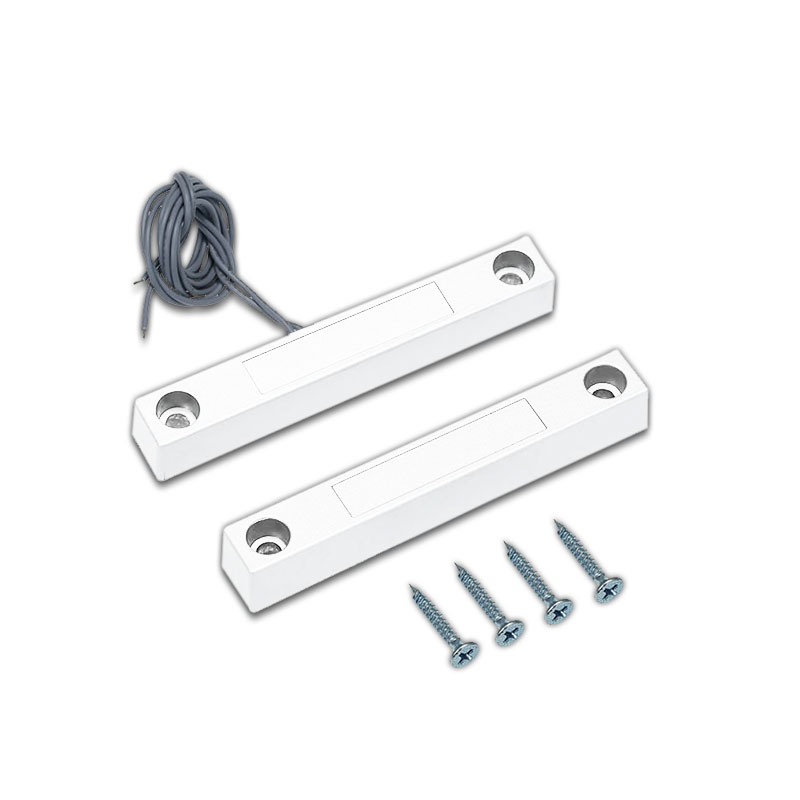

Heavy Duty Hard Wired Reed Switch (White)

SKU RSW-M1W

The RSW-M1 is a heavy duty hard wired reed switch, designed for window and door applications.

Product features:
• Heavy duty magnetic contact switch
• Large magnet sensor gap, up to 50mm
• Normally closed (NC) reed switch output
• 10W maximum contact rating (up to 100V, 0.5A)
• 250mm sensor leads (22 AWG / Ø0.64mm)
• Robust casing of zinc alloy construction
• Surface Mounted, screws included
• Dimensions 106 x 16 x 16mm

Available in silver, white or brown casing.

Suggested Products

Suggested product image

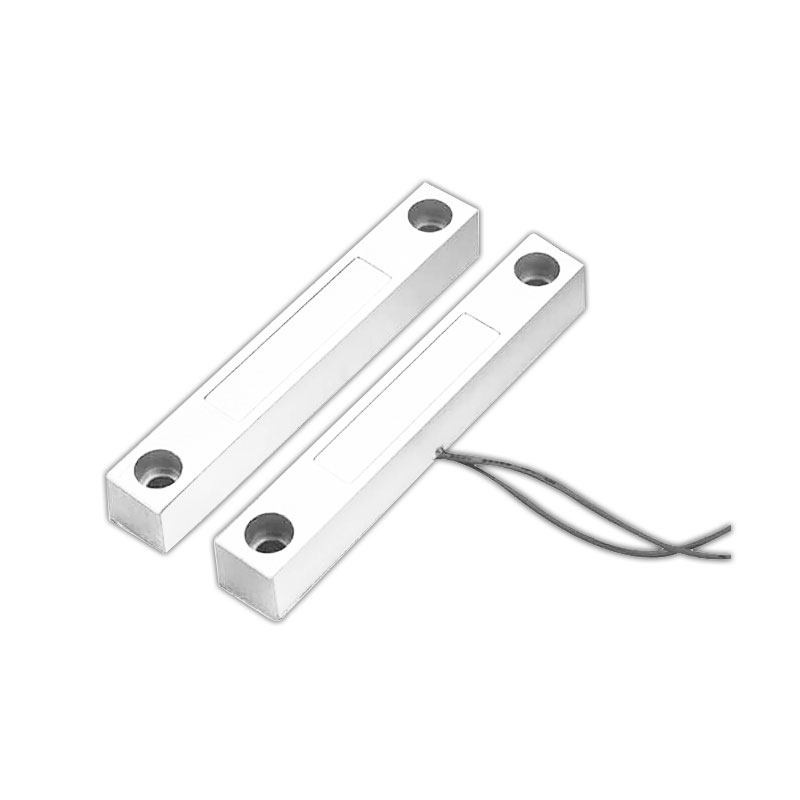

Heavy Duty Hard Wired Reed Switch (Silver)
RSW-M1
Suggested product image
Heavy Duty Hard Wired Reed Switch (Brown)
RSW-M1B

Links and Downloads

Watchguard RSW-M1 Series Datasheet (PDF) 2.16 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Contact
N/C
Dimensions
160mm x 16mm x 16mm
Gap
50mm
Max Current
0.5A
Max Rating
10W
Max Voltage
100VDC
Type
Reed Switch
Warranty (Years)
1
