12/24VDC 10-Pack Relay Module (One 7A SPDT Relay)

SKU RLM7A-SD-10

12/24VDC 10-Pack Relay Module (One 7A SPDT Relay)

SKU RLM7A-SD-10

Expand your wiring and installation options with the useful Watchguard™ range of relay modules. Featuring heavy duty, low-current, high sensitivity and break-away modules, you’ll always have the perfect relay for the job.

Series features:
• Relay modules for any application where switches are required
• Pre-wired to easy-to-install modules
• Screw terminals allow easy installation without soldering or other time-consuming connections
• Wide-selection available: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity

Product features:
• 12/24VDC Trigger Voltage
• One 7A Form C SPDT Relay per module

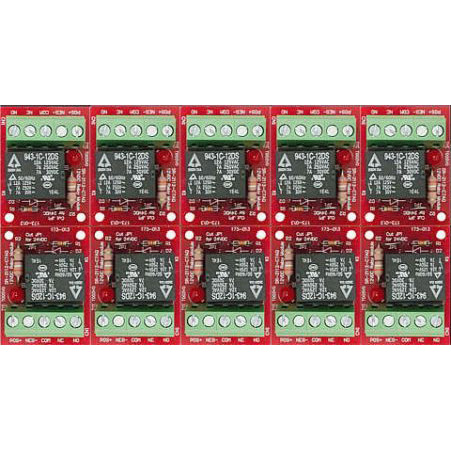

• Includes 10 relay modules on a single board, with an easy break-away feature for use as individual modules. Works great with alarm panels.

Suggested Products

3/24VDC Relay Module (One 2A DPDT Relay)
RLM2A-DDL

6/12VDC Relay Module (One 5A DPDT Relay)
RLM5A-DD

3/24VDC Relay Module (Two 7A SPDT Relays)
RLM7A-SDL

Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864

Links and Downloads

Relay Module Series (PDF) 0.33 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Current Draw

35mA@12VDC / 40mA@24VDC

Dimensions

40 x 30 x 20 mm (per module)

No. of Relays

Operating Voltage

12/24 VDC

Relay Ratings

Relay Type

SPDT

Trigger Voltage

12/24 VDC

Voltage Selection

Jumper

Weight

20g (per module)

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

212 mm

Height

48 mm

Depth

115 mm

Weight

0.20 kg
