12VDC 7.5A Single Output Industrial DIN Rail Power Supply

Brand logo
SKU PSDR12V7A
Brand logo

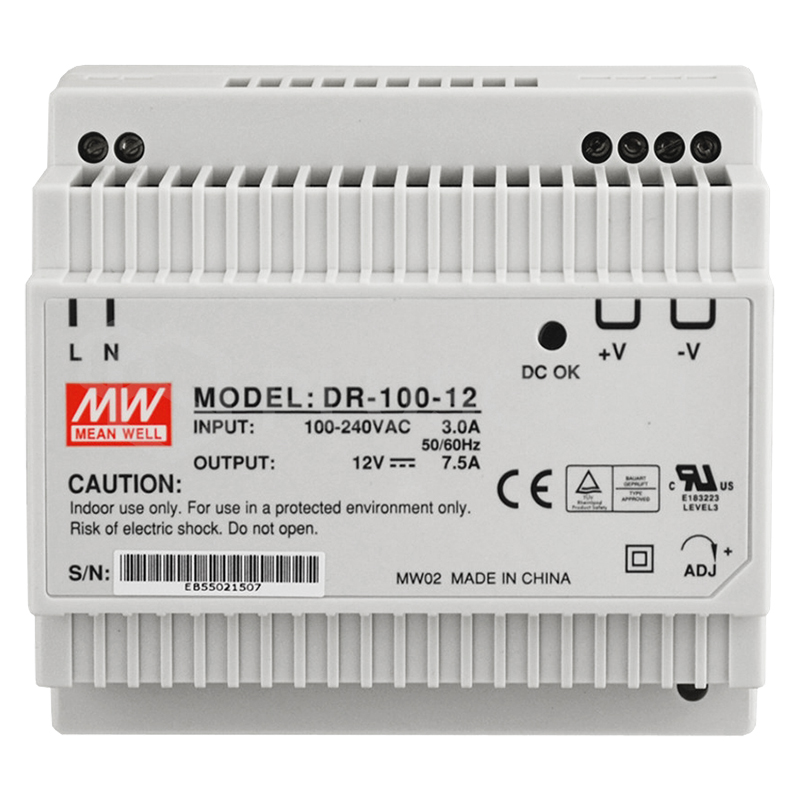

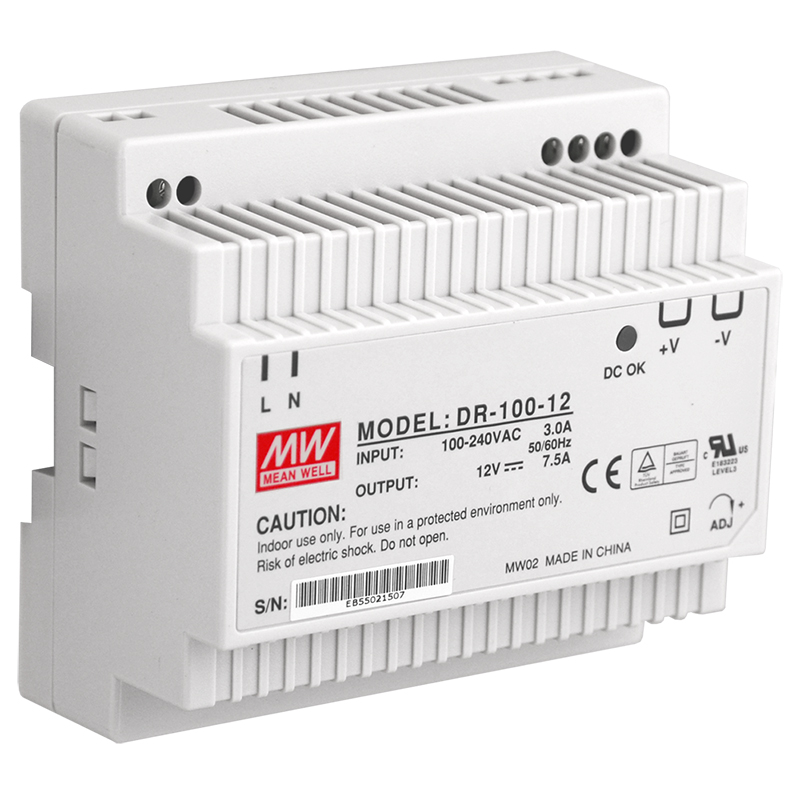

12VDC 7.5A Single Output Industrial DIN Rail Power Supply

SKU PSDR12V7A

Stock may be limited. Please contact us for availability or for an alternative item.

The PSDR12V7A is a 12VDC Class II DIN rail mount switching power supply, designed with a fully isolated plastic case to prevent user contact and the risk of shock. Features no load power consumption to save energy and protection against short circuit, over load, over voltage & over temperature.

Product features:
• 12VDC 7.5A Power output with universal 88~264VAC input
• Adjustable voltage range 12V ~ 15V; tailor voltage in longer cable runs
• Integrated protection against line overvoltage / overload / short circuit
• Integrate to protect IT & security in home, office and retail environments
• Designed for installation on DIN rail TS-35/7.5 or 15
• Prevents overheating with free air convection
• Double Insulated - Isolation Class II
• LED indicator for power on
• No load power consumption (<1W)
• 100% full load burn-in test

Suggested Products

Suggested product image
24VDC 4A Single Output Industrial DIN Rail Power Supply
PSDR24V4A

Links and Downloads

Securview PSDR Series DIN Rail Power Supplies Datasheet (PDF) 0.27 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

AC Current
3A/115VAC / 1.6A/230VAC
Current
7.5A
Current Range
0 ~ 7.5A

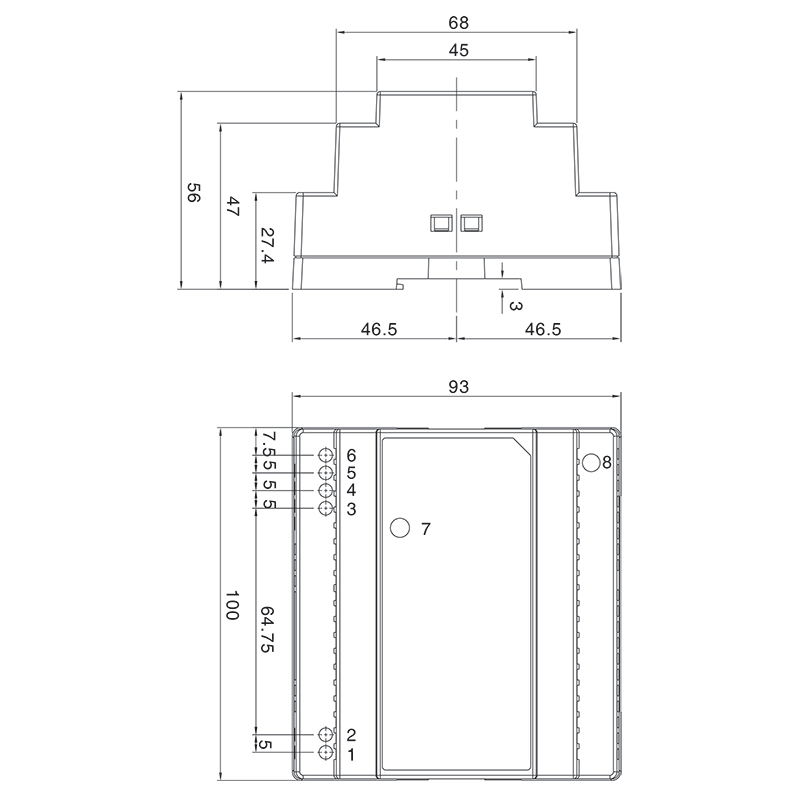

Dimensions
100 x 93 x 56mm
Efficiency
87%
EMI Conduction & Radiation
Compliance to EN61204-3
EMS Immunity
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
Frequency Range
~ 63Hz
Harmonic Current
Compliance to EN61000-3-2,-3
Hold Up Time
50ms/230VAC / 18ms/115VAC at full load
In-rush Current
Cold Start - 30A/115VAC / Normal - 45A/230VAC
Isolation Resistance
I/P-O/P:>100M Ohms/500VDC 25°C 70%RH
Line Regulation
±1.0%
Load Regulation
±1.0%
MTBF
486K hrs min., MIL-HDBK-217F (25°C)
Output Voltage
12VDC
Overheat Protection
90°C ±15°C (RTH2) detect on heatsink of power transistor
Overload Protection
105 ~ 135% rated output power
Overvoltage Protection
16 ~ 20V
Rated Power
90W
Ripple and Noise (max.)
120mVp-p
Safety Standards
UL60950-1, TUV EN60950-1 approved, Design refer to EN50178
Setup, Rise Time
2700ms, 80ms/230VAC / 2700ms, 80ms/115VAC at full load
Storage Temp., Humidity
-40 ~ +85°C , 10 ~ 95% RH
Temp Coefficient
±0.03%/0C (0 ~ 50°C)
Vibration (Component)
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Vibration (Mounting)
Compliance to IEC60068-2-6
Voltage Adj. Range
12 ~ 15V
Voltage Range
88 ~ 264VAC / 124 ~ 370VDC
Voltage Tolerance
±2.0%
Withstand Voltage
I/P-O/P:3KVAC
Working Humidity
20 ~ 90% RH non-condensing
Working Temperature
-20 ~ +60°C
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
105 mm
Height
65 mm
Depth
105 mm
Weight
0.33 kg
