Quad Element 360° Ceiling Mount PIR Detector

Brand logo
SKU PIRHW360DT
Brand logo

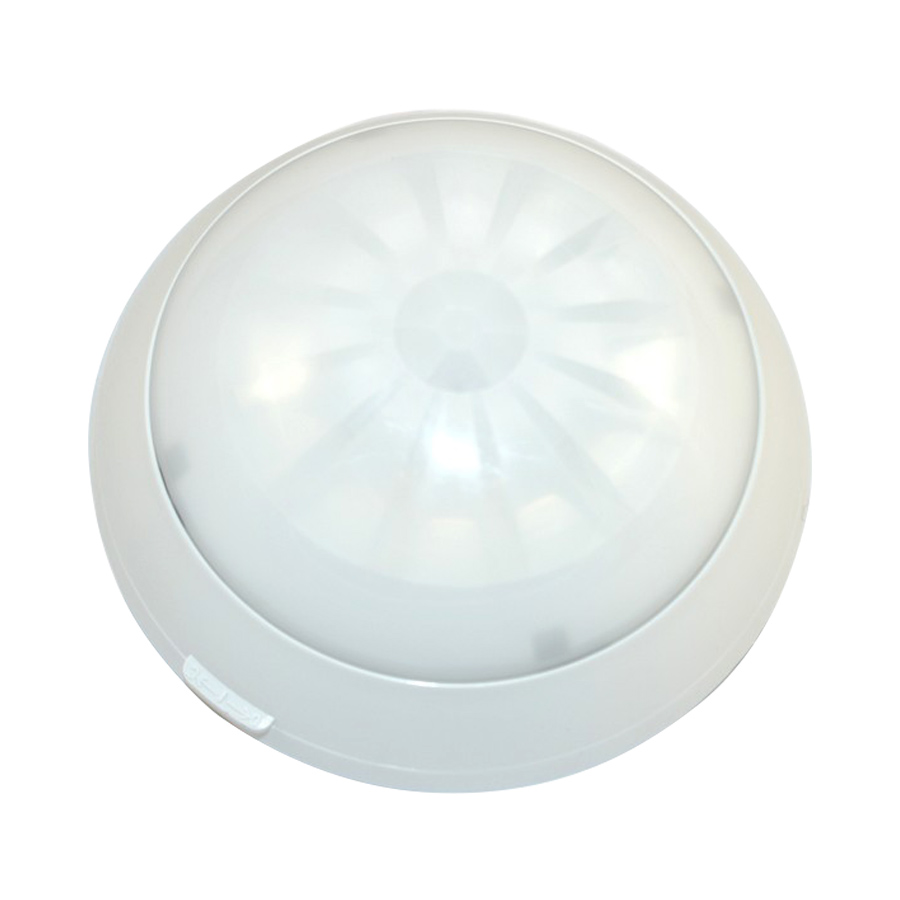

Quad Element 360° Ceiling Mount PIR Detector

SKU PIRHW360DT

Stock may be limited. Please contact us for availability or for an alternative item.

The PIR360HWDT is a hardwired 360° ceiling-mount passive infrared motion sensor, compatible with the hardwired range of Watchguard building security. It offers effective motion detection coverage up to 20m (when mounted at 3.6m) and is ideal for reliably monitoring large spaces with a single detector.

Features:
• Quad element pyroelectric sensor for reliable operation
• Normally closed alarm output (28VDC 0.1A with 10Ω resistor)
• 0.5 - 1.5m/sec motion detection speed
• Fully sealed optical chamber and unique hard shell spherical lens
• 20m diameter ground level coverage (when mounted at 3.6m)
• DIP-switch adjustable pulse count and case-open tamper protection
• Bi-directional temperature compensation
• Complete detection range adjustment
• Extra-wide rear wiring channel for easy installation
• Halogen/fluorescent light stability and RFI/EMI interference protection (50,000V)
• Compact Ø110mm x 45mm overall dimensions

Suggested Products

Suggested product image
Universal Movement Sensor With Triple Technology
PIRHWTT
Suggested product image
Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
110 mm
Height
110 mm
Depth
40 mm
Weight
0.96 kg
