Ultimate 128 Channel Network Video Recorder (384Mbps)

Brand logo
SKU NVR128ULTNPV2
Brand logo

Ultimate 128 Channel Network Video Recorder (384Mbps)

SKU NVR128ULTNPV2

Stock may be limited. Please contact us for availability or for an alternative item.

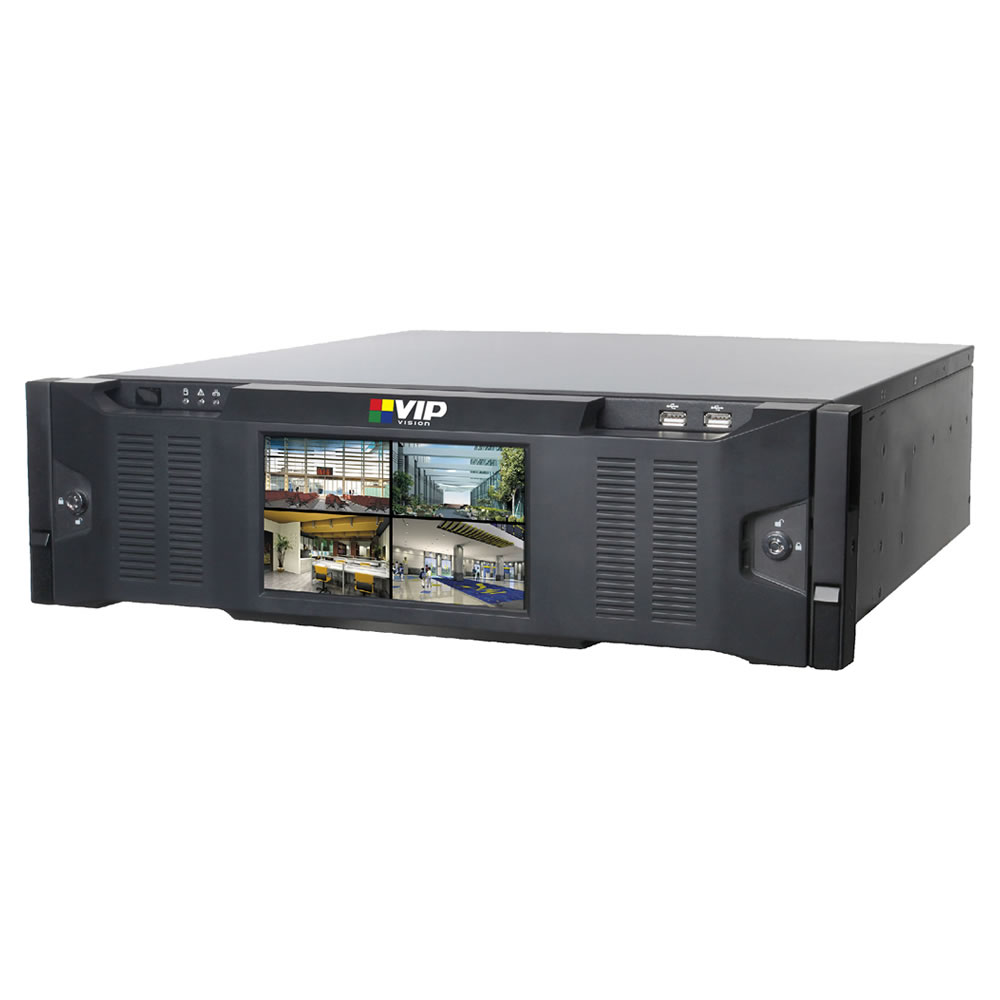

The VIP Vision NVR128ULTNPV2 is a 128 channel network video recorder, designed as a high performance, high capacity, professional IP surveillance solution for enterprise applications. This NVR offers native Ultra HD broadcast-quality image performance and easy installation with built in Power over Ethernet ports, as well as an internal DVD-RW burner and hot-spare RAID support.

Product features:
• Record beyond Ultra HD up to 12.0MP (4000 x 3000)
• 128CH NVR with no Power over Ethernet ports
• 384Mbps incoming bandwidth with H.265 support
• Decode up to 16 channels at 1080p (30fps)
• 16 x SATA ports up to 10TB, max. 160TB HDD capacity
• 7" HD LCD on-recorder display
• Supports easy hot-swap hard drive access
• High performance Intel quad core processors
• Native Ultra HD live view on 4K monitors via HDMI
• Smart tracking and intelligent video analytics
• RAID HDD optimisation & power redundancy avail.
• Live view, playback & record via your phone/tablet

This NVR requires external Power over Ethernet switches.

Suggested Products

Suggested product image
CAT5E Solid Core Cable Unshielded (Blue) 305m Pullbox
CAT5EBLU
Suggested product image
24" LG 1920 x 1080 LCD Monitor (IPS)
LCDLG24I
Suggested product image
6RU 600mm Wall-Mount Data Cabinet
RMC-B6U600W
Suggested product image
1500VA Line Interactive UPS - 900W
UPS-A1500-L
Suggested product image
16-port Managed Gigabit Hi-PoE Network Switch
VSPOE-SWB16G
Suggested product image
24-port Managed Gigabit Hi-PoE Network Switch
VSPOE-SWB24G

Links and Downloads

VIP Vision 64/128CH NVRULT Series Datasheet (PDF) 0.78 MB
VIP Vision / Watchguard NVR Installation Manual - Q4 2021 (PDF) 3.63 MB
Smart PSS V2.0.1 (Windows) 88.17 MB
Smart PSS V2.0 (Mac) 90.05 MB
NVR32ULTNPV2, NVR64ULTNPV2, NVR64ULT8S, NVR128ULTNPV2 Firmware - 2024-10-18 122.90 MB
VIP Vision / Watchguard Mobile App Quick Start Guide (PDF) 2.57 MB
Full NVR User Manual V4.3.0 - Blue GUI (PDF) 12.75 MB
Full NVR User Manual V4.5.1 - Black GUI (PDF) 14.69 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Intel® Quad Core Processors
Operating System
Embedded Linux
Video Input
128 channels
PoE
No
HDD Capacity
Two-way Talk
1 channel input, 1 channel output, RCA
Interoperability
ONVIF 2.4, CGI conformant
Display
Video Output
2 x HDMI, 1 x VGA
Display Resolution
Configurable from 3840 x 2160 to 1024 x 768
Display Split
1/4/8/9/16/25/36/64, Extra display: 1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution
Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)
Incoming Bandwidth
384Mbps
Decoding Capacity
16 channels: 1080p (30fps)
Video Compression
H.265 / H.264 / MJPEG
Bit Rate
16kbps ~ 20Mbps per channel
Record Modes
Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
Record Interval
1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Features
Alarm Input / Output
16 channels input / 8 channels relay output (N.O/N.C)
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection
Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync
128Mbps (RAID 5 mode) / 64Mbps (single HDD mode)
Search Modes
Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes
USB Device / Network / eSATA Device / Internal SATA burner
Network
Ethernet
4 x RJ-45 (10/100/1000Mbps), Load Balancing or Independent
Power over Ethernet
N/A
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
Optical Interface
2 x 1000Mbps Fibre Interface
Max. User Access
128 users
Remote View
iOS (iPhone, iPad) / Android devices
Storage
Internal HDD
16 x SATA ports up to 10TB, max. 160TB HDD capacity
HDD Modes
Single disk, RAID 0/1/5/6/10/50/60 (Global hot-spare support)
USB Interface
4 ports: 1x USB3.0 / 3x USB2.0
Auxiliary Inputs
1 x RS232 / 1 x RS485 / 1 x eSATA / 1 x Mini SAS
Environment
Power Supply
100 ~ 240VAC, 50 ~ 60Hz (Power Redundancy Available)
Power Consumption
< 51W (without HDD)
Operating Environment
-10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
Rackmountable
Yes (included)
Rackmount Units
3RU
Dimensions
530 x 485 x 133mm
Weight
18.10kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
640 mm
Height
720 mm
Depth
440 mm
Weight
28.00 kg
