4G/WiFi In-Vehicle Surveillance & GPS Tracking System

Brand logo
SKU MDVR-J400
Brand logo

4G/WiFi In-Vehicle Surveillance & GPS Tracking System

SKU MDVR-J400

Keep full track of your vehicle and monitor driver activity from anywhere. This total in-vehicle monitoring solution excels at tracking company vehicles with dual driving cameras, GPS tracking, behaviour tracking, mobile alerts & more.

Product features:
• Record up to Full HD/2.0MP (1920 x 1080) at 30fps
• 120° external cam (road), 100° internal dashcam (driver)

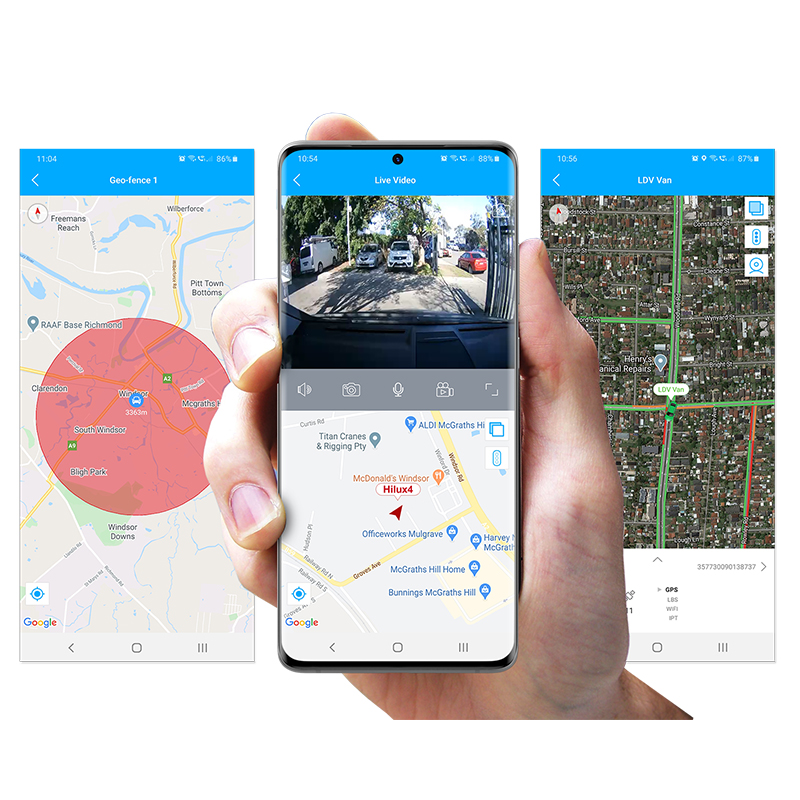

• Live camera view and GPS tracking with mobile app
• Windshield-mounted with detachable camera unit
• Two-way voice communication between phone & cam
• Email/app alert & sent footage upon collision detection
• Monitor driver behavior with geo-fencing
• 9-axis G-sensor to detect harsh acceleration, sharp turns, etc.
• 450mAh external battery for use when vehicle is off
• Playback and record footage on microSD up to 128GB

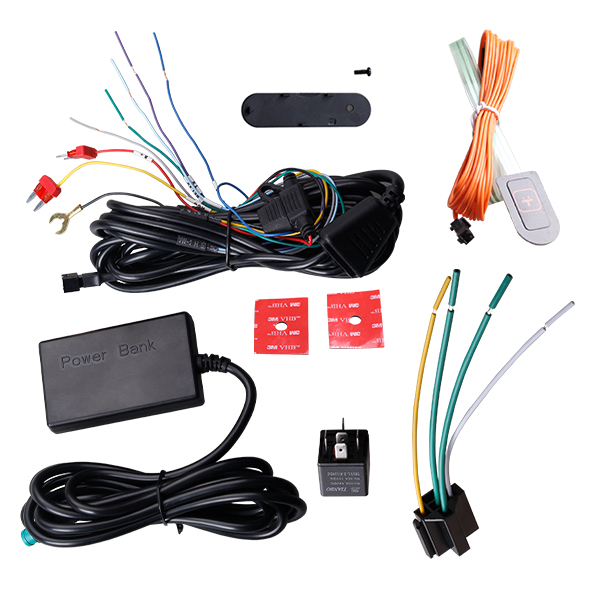

Included components:

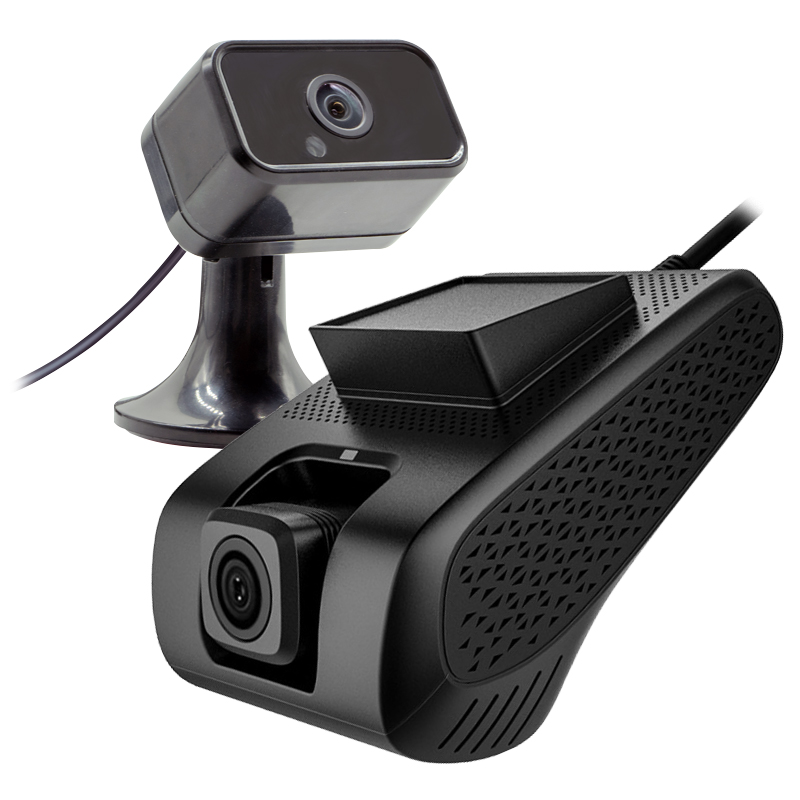

• External road dash camera & internal driver camera
• Windscreen mounting cradle
• 3M adhesive mounting stickers
• 450mAh external battery
• 12V 40A relay & relay cable
• SOS alarm button
• Screwdriver

Suggested Products

Suggested product image
SIM/SD Card Slot Lock for MDVR-J400
MDVR-JL

Links and Downloads

Securview MDVR-J400 Datasheet (PDF) 0.74 MB
Securview MDVR-J400 Full Datasheet (PDF) 1.21 MB
Securview MDVR-J400 Quick Start Guide (PDF) 5.49 MB
Online Tracking Portal
Tracksolid Pro Mobile App (Apple)
TrackSolid Pro Mobile App (Android)
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Camera Style
Windscreen-mounted road camera, Dash-mounted driver camera
Resolution
Road: 1080p (1920 x 1080) / Driver: 720p (1280 x 720)
Angle of View
Front: 120° (adjustable) / Rear: 100°
Focus
Fixed
Frame Rate
30fps (Dynamic)
Features
CPU
ARM Cortex A53 1.4GHZ
Band
GSM 850/900/1800/1900 / WCDMA B1/B2/B5/B8 / FDD B1/B3/B5/B7/B8/B20 / TDD B38/B39/B40/B41 (100M)
G-Sensor
9 axis-motion
Live View
In-car / front car live video via app or web
Audio
Built-in microphone / Built-in speaker
WiFi
802.11 b/g/n, 2.4GHz frequency, hot spot
Bluetooth
N/A
Micro SD storage
Max 128GB
Battery
External 450mAh
Interface
OBD Interface
Connect by power cable
USB Data Interface
Micro USB 5 Pin
Housing
Plastic
Power Input
9 ~ 36VDC
Dimensions
109 x 69 x 52mm
Weight
0.23kg
Operating Environment
-20° to 75°C / RH95% (max)
Installation
Included Components
Power wiring harness, mounting cradle, 3M adhesive mount, SOS alarm button, backup battery, 12V 40A relay and relay cable, screwdriver
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
180 mm
Height
245 mm
Depth
70 mm
Weight
0.81 kg
