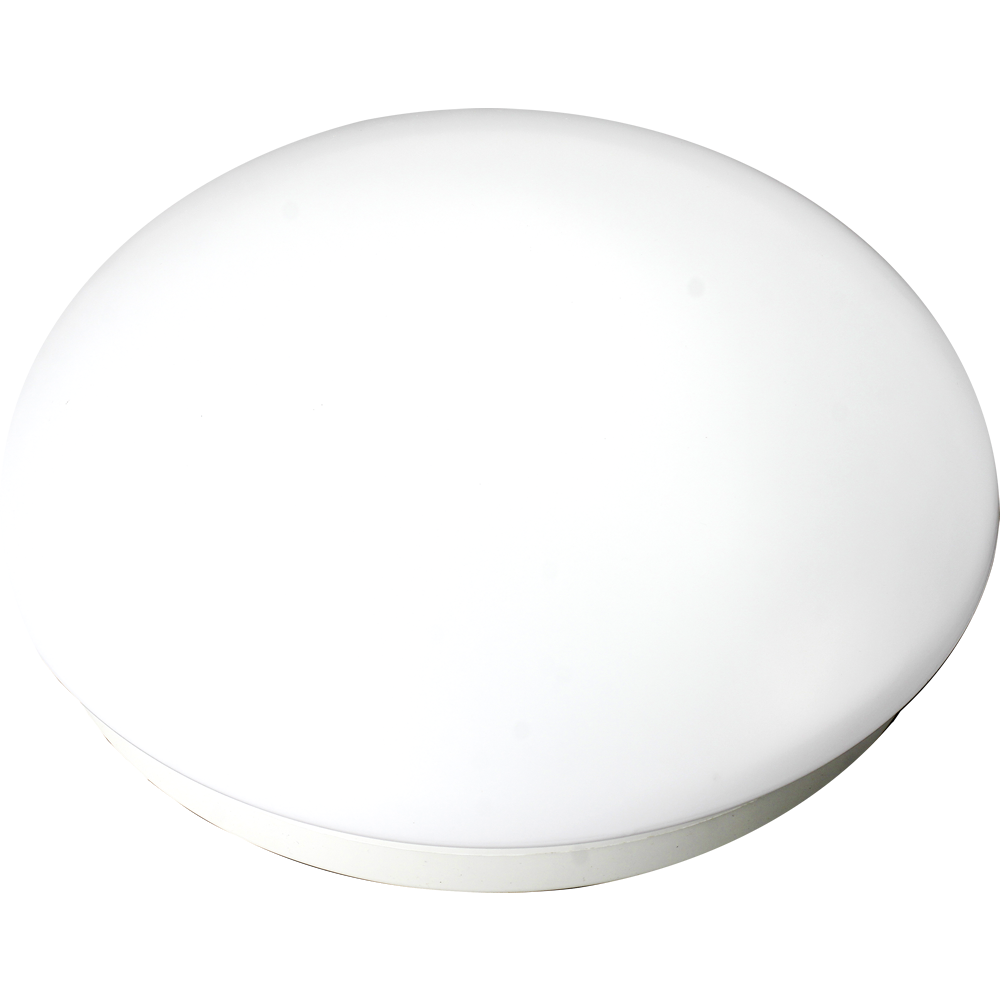

Intelligent LED Oyster Light with Battery Backup (3000K)

Brand logo
SKU LEDDL10W3KSE
Brand logo

Intelligent LED Oyster Light with Battery Backup (3000K)

SKU LEDDL10W3KSE

• Intelligent LED light with light & motion sensing, on-timer & battery backup
• 10W LED light with 700 lumens light output; equivalent to 50W halogen
• 7.2V 1800mAh NiMH battery for >120 minutes of emergency lighting at 5W
• Ideal for emergency stairwells and in other essential lighting applications
• Wide 120° beam angle; up to 30,000 hours lifespan
• On/off via 5.8GHz microwave & daylight sensors for greater energy savings
• Adjust sensitivity: 1~8m radius (microwave); <3~2000lx (daylight)
• Adjustable 10s ~ 12min on-time delay to control on/off via motion
• Available in 3000K colour temperatures with >80 CRI
• IP44 weather resistant; frosted diffuser eliminates any LED glare

Links and Downloads

LEDDL10WXKSE Product Manual (PDF) 0.40 MB
ENSA LEDDL Series Smart Oyster Light Datasheet (PDF) 0.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Optical
Light Output
700lm
Luminous Efficacy
70lm/W
Colour Temperature
3000K
Colour Rendering Index
> 80
Beam Angle
120°
Light Decay
<15% at 10,000 hours
Rated Lifespan
30,000 hours
Electrical
Power Consumption
10W
Input Voltage
220-240VAC (50Hz)
Power Factor
> 0.9
Dimmable
No
Motion Activated
360° Microwave (5.8GHz) / 8m radius (adjustable)
General
Ingress Protection
IP44
Plug / Socket / Base
Internal terminal block
Reflector / Diffuser
Frosted diffuser
Housing Adjustments
N/A
NSW ESS Accepted
No
Operating Environment
-20° ~ 50°C
Dimensions
Ø280 x 117mm
Other
Ambient Light Sensor
< 3 ~ 2000lx (adjustable)
Battery Backup
7.2V 1800mAh NiMH >120min uptime at 5W
Emergency Brightness
50% sensing / 100% on detection
Equivalent Wattage
50W halogen
On-Time Delay
10s ~ 12min (adjustable)
Standby Light Modes
Off (0% brightness)
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
320 mm
Height
320 mm
Depth
120 mm
Weight
0.96 kg
