Display Series 21.5" Public View Monitor with Built-In 1080p Camera

Brand logo
SKU LCDVIP22-C
Brand logo

Display Series 21.5" Public View Monitor with Built-In 1080p Camera

SKU LCDVIP22-C

Available by special order only. Please contact us for lead times.

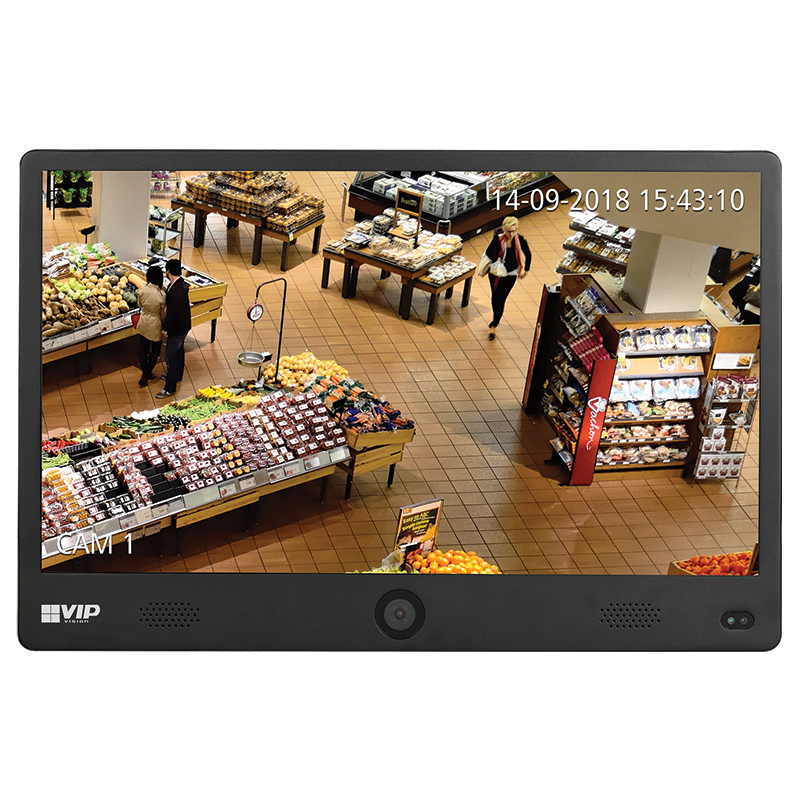

Deter criminal activity with the LCDVIP22-C public view monitor from VIP Vision. Ideal for retail environments, this merged monitor & camera will show any customer a live stream of the built-in camera, letting them know they’re under surveillance. The system features both edge recording via microSD and compatibility with VIP Vision NVRs.

Product features:
• Stream & display Full HD 1080p (1920 x 1080) at 25fps
• 3.6mm fixed lens, H.265 high efficiency video coding
• 21.5” LCD public view monitor with live camera stream
• Reliable performance w/ Quad-core CPU & 1GB RAM
• Real-time preview, playback, storage & config via NVR

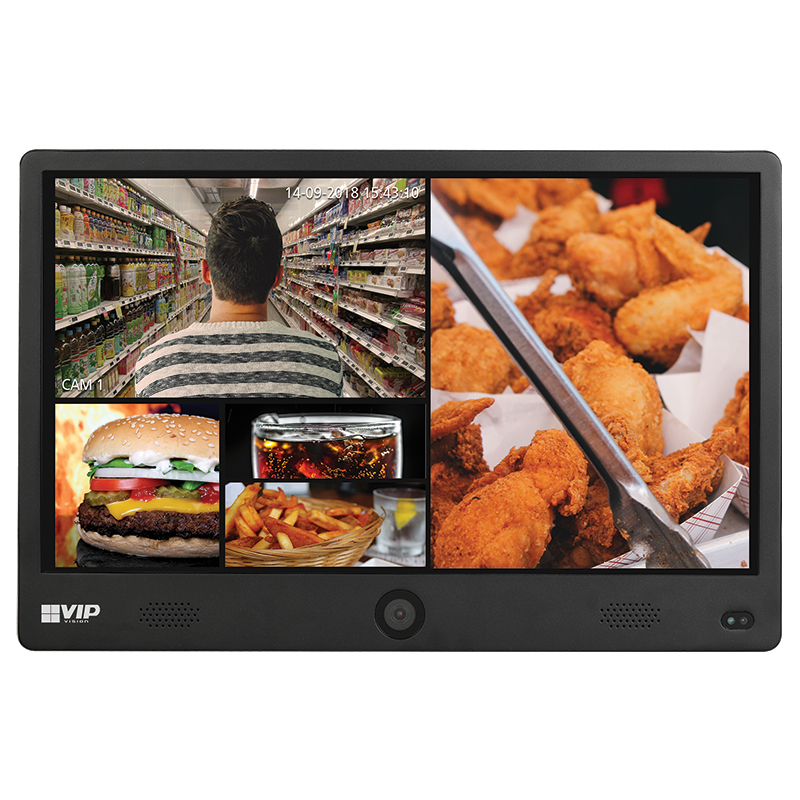

• Combine advertising and security with digital signage
• 3 display modes - Smart, CCTV & Signage modes
• 8GB internal storage & microSD slot up to 128GB

Links and Downloads

LCDVIP22-C Datasheet (PDF) 0.83 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Display
Display Size
21.5" TFT LCD
Aspect Ratio
16:9
Display Resolution
1920 x 1080
Display Colour
16.7 Million
Brightness
250cd/m²
Contrast
3000:1
Viewing Angle
178°
Response Time
18ms
Backlight
LED
Performance
System
Android 4.4
CPU
Quad-core, 1.5GHz
RAM
1GB
Internal Storage
8GB
Decoding Ability
4CH@1080p
Network Modes
Wired / WiFi
Audio
2 x 8Ω/2W Front Speakers
Interface
Ethernet
1 x RJ45
USB Interface
2 x USB2.0
SD Interface
1 x SD Card Slot
TF Interface
1 x TF Card Slot
Auxillery Interface
1 x RS232
Camera
Image Sensor
1/2.7" CMOS
Effective Pixels
1920 x 1080
Lens Type
Fixed
Focal Length
3.6mm
Minimum Illumination
Manual 1/25s(30 IRE) / 0.15Lux/F2.0 (Color), 0.039Lux/F2.0(BW) / Manual 1/4s(100 IRE) / 0.0158Lux/F2.0(Color), 0.000131Lux/F2.0(BW)
Environmental
Power Supply
12VDC
Power Consumption
<17.6W (Active) / <0.3W (Standby)
Operating Conditions
-10° ~ +55° C / Less than 90% RH
Ingress Protection
N/A
Vandal Resistance
N/A
Housing
Metal
Installation
Wall-mount
Display Mode
Horizontal / Vertical
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: 0° ~ 90° ; Rotation: 0° ~ 360°

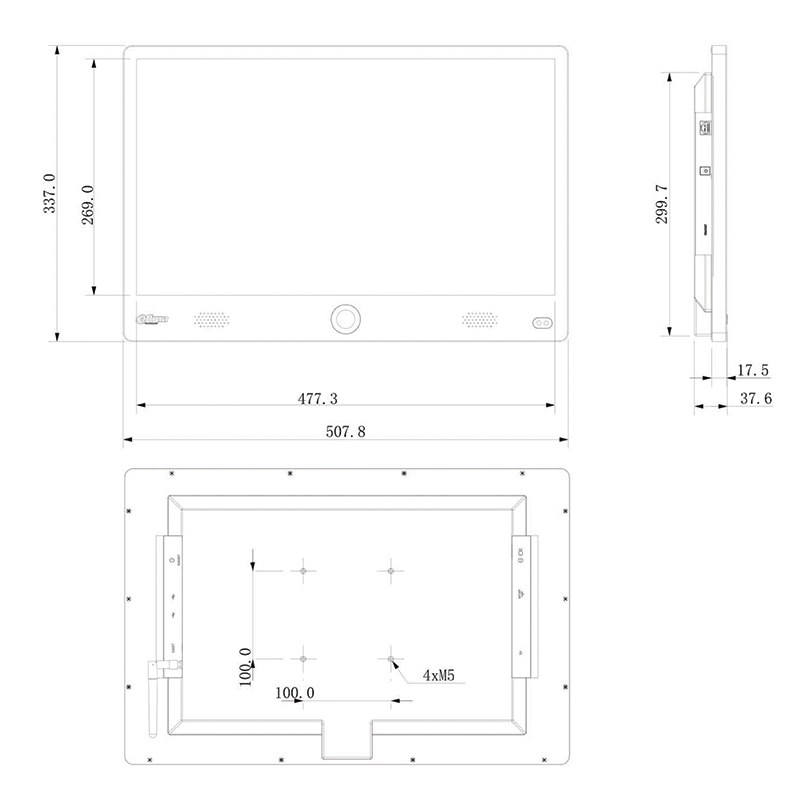

Dimensions
508 x 337 x 38mm
Net Weight
5.90kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
600 mm
Height
471 mm
Depth
130 mm
Weight
6.00 kg
